15
VOICE TX FUNCTION

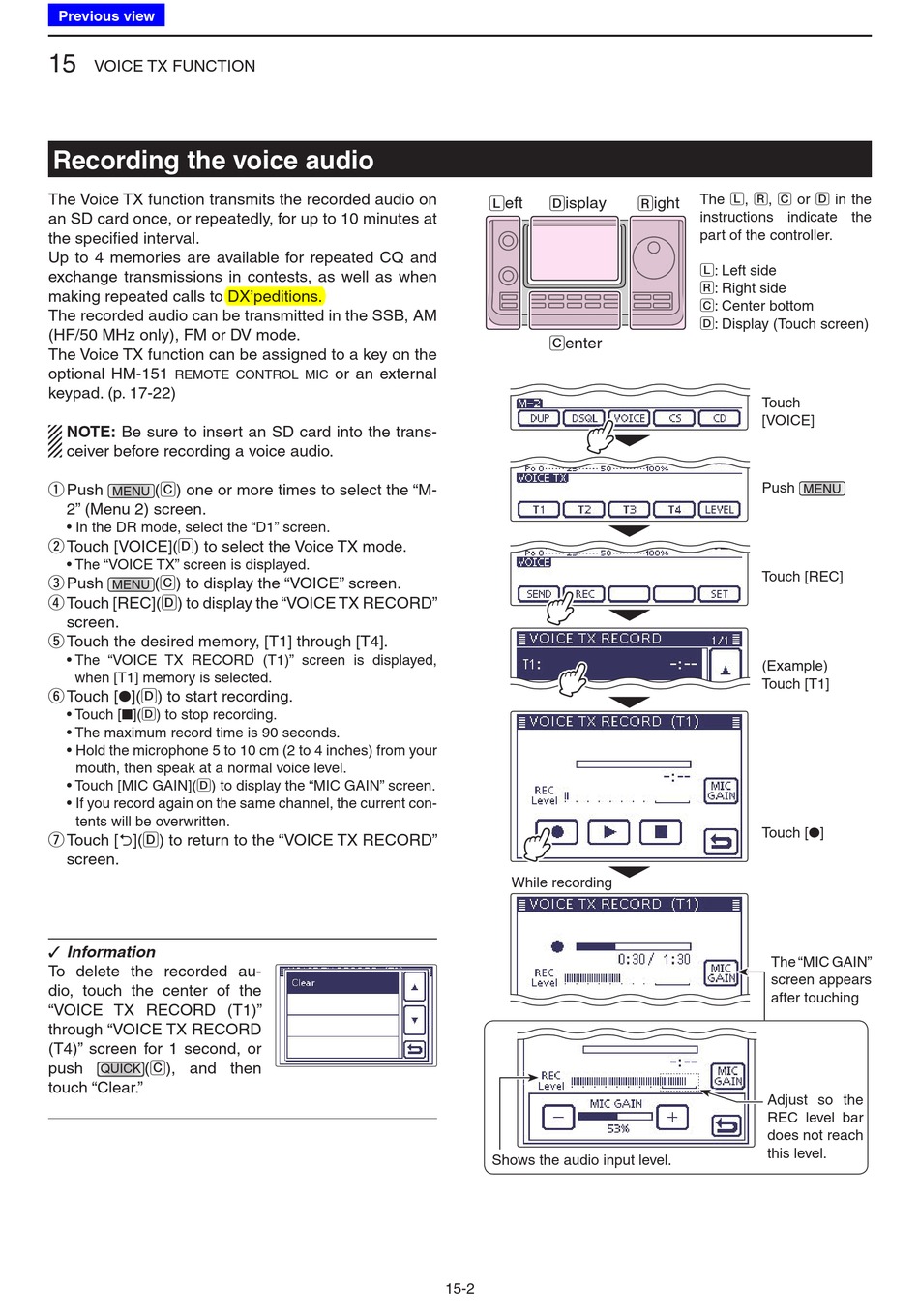

Recording the voice audio

The Voice TX function transmits the recorded audio on
an SD card once, or repeatedly, for up to 10 minutes at
the specified interval.
Up to 4 memories are available for repeated CQ and
exchange transmissions in contests, as well as when
making repeated calls to DX'peditions.
The recorded audio can be transmitted in the SSB, AM
(HF/50 MHz only), FM or DV mode.
The Voice TX function can be assigned to a key on the
optional HM-151
remote control mic
keypad. (p. 17-22)
NOTE: Be sure to insert an SD card into the trans-
ceiver before recording a voice audio.
Push (C) one or more times to select the "M-
q
MENU
2" (Menu 2) screen.
• In the DR mode, select the "D1" screen.
Touch [VOICE]( D) to select the Voice TX mode.
w
• The "VOICE TX" screen is displayed.
Push (C) to display the "VOICE" screen.
e
MENU
Touch [REC]( D) to display the "VOICE TX RECORD"
r
screen.
Touch the desired memory, [T1] through [T4].
t
• The "VOICE TX RECORD (T1)" screen is displayed,
when [T1] memory is selected.
Touch [ ●](D) to start recording.
y
• Touch [■](D) to stop recording.
• The maximum record time is 90 seconds.
• Hold the microphone 5 to 10 cm (2 to 4 inches) from your
mouth, then speak at a normal voice level.
• Touch [MIC GAIN](D) to display the "MIC GAIN" screen.
• If you record again on the same channel, the current con-
tents will be overwritten.
Touch [ ](D) to return to the "VOICE TX RECORD"
u
screen.
Information
✓
To delete the recorded au-
dio, touch the center of the
"VOICE TX RECORD (T1)"
through "VOICE TX RECORD
(T4)" screen for 1 second, or
push (C), and then
QUICK
touch "Clear."
L eft
or an external
Shows the audio input level.
15-2
D isplay R ight
C enter
While recording
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
Touch
[VOICE]
Push
MENU
Touch [REC]
(Example)
Touch [T1]
Touch [●]
The "MIC GAIN"
screen appears
after touching
Adjust so the
REC level bar
does not reach
this level.
