SPECIFICATIONS AND OPTIONS

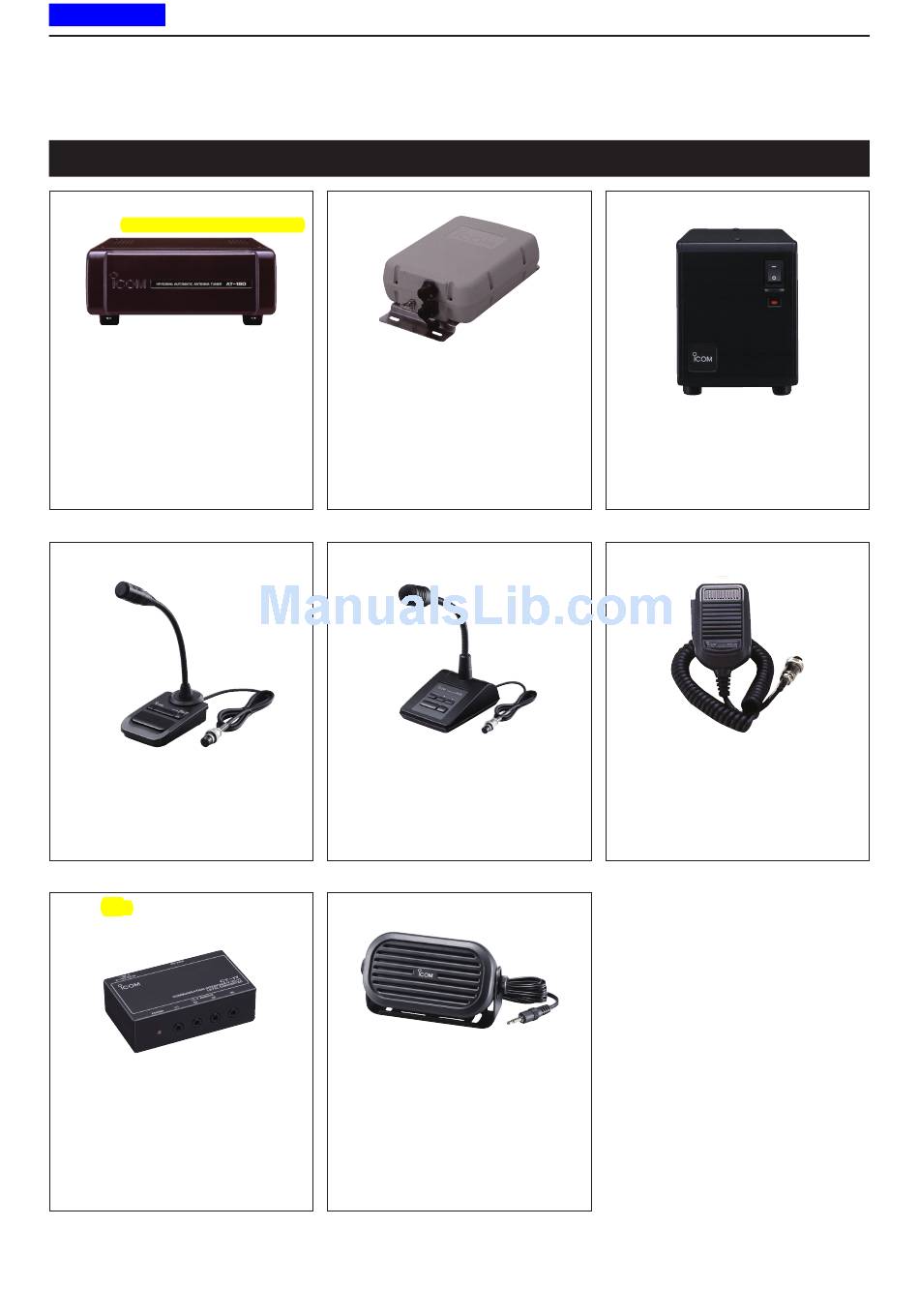

Options
AT-180
hf/50 mhz automatic antenna tuner
Fully automatic antenna tuner with pre-
set memories for each 100 kHz. Unique
"automatic tuner on" function is avail-
able. See page 16-3 for AT-180 speci-
fications.
SM-30
desktop microphone
Includes a low frequency cut function.
An optional OPC-589 is required for
connection.
CT-17
-
ci
v level converter unit
For remote transceiver control using a
personal computer equipped with an
RS-232C port. You can change frequen-
cies, operating mode, memory chan-
nels, and so on with your computer.
AH-4
hf automatic antenna tuner
Specially designed to tune a long wire
antenna for portable or mobile HF/50
MHz operation. The "PTT tune" function
provides simple operation.
• Input power rating: 120 W
SM-50
desktop microphone
Unidirectional, dynamic microphone for
base station operation. Includes [UP]/
[DOWN] switches, a low cut switch and
mic gain control.
An optional OPC-589 is required for
connection.
SP-35
external speaker
External speakers suitable for mobile
operation.
SP-35: Compact-type; 4 ø/7 W
21-4
PS-126
dc power supply
• Output voltage : 13.8 V DC
• Max. output current : 25 A
HM-36
hand microphone
Hand microphone equipped with [UP]/
[DOWN] switches.
An optional OPC-589 is required for
connection.
