Remote Controller Front Panel - Icom IC-M803 Instruction Manual

2
PANEL DESCRIPTION

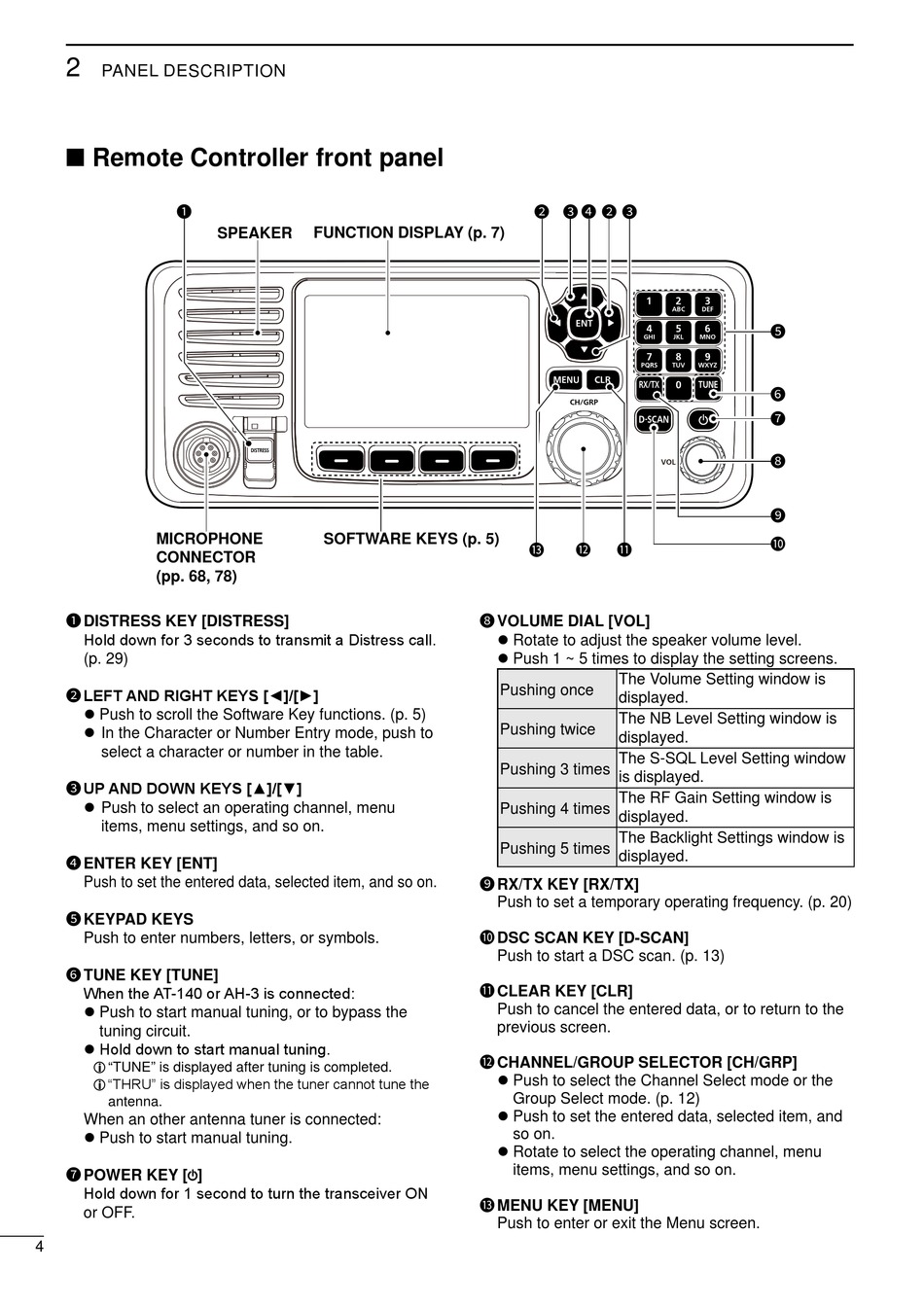

I Remote Controller front panel
1
MICROPHONE
CONNECTOR
(pp. 68, 78)
1 DISTRESS KEY [DISTRESS]
ol o n or secon s to transmit a istress call
(p� 29)
T A R G T
2
z Push to scroll the Software Key functions� (p� 5)
z In the Character or Number Entry mode, push to
select a character or number in the table�
A O
3
z Push to select an operating channel, menu
items, menu settings, and so on�
4 ENTER KEY [ENT]
Push to set the entered data, selected item, and so on�
5 KEYPAD KEYS
Push to enter numbers, letters, or symbols�
6 TUNE KEY [TUNE]
en t e or
z Push to start manual tuning, or to bypass the
tuning circuit�
z ol o n to start manual tuning
L "TUNE" is displayed after tuning is completed�
R is ispla e
L
antenna�
When an other antenna tuner is connected:
z Push to start manual tuning�
7 POWER KEY [ ]
ol o n or secon to turn t e transcei er
or OFF�
4
FUNCTION DISPLAY (p. 7)
SPEAKER
SOFTWARE KEYS (p. 5)
S
S
is connecte
en t e tuner cannot tune t e
2 3 4 2 3
13 12 11
8 VOLUME DIAL [VOL]
z Rotate to adjust the speaker volume level�
z Push 1 ~ 5 times to display the setting screens�
The Volume Setting window is
Pushing once
displayed�
The NB Level Setting window is
Pushing twice
displayed�
The S-SQL Level Setting window
Pushing 3 times
is displayed�
The RF Gain Setting window is
Pushing 4 times
displayed�
The Backlight Settings window is
Pushing 5 times
displayed�
9 RX/TX KEY [RX/TX]
Push to set a temporary operating frequency� (p� 20)
10 DSC SCAN KEY [D-SCAN]
Push to start a DSC scan� (p� 13)
11 CLEAR KEY [CLR]
Push to cancel the entered data, or to return to the
previous screen�
12 CHANNEL/GROUP SELECTOR [CH/GRP]
z Push to select the Channel Select mode or the
Group Select mode� (p� 12)
z Push to set the entered data, selected item, and
so on�
z Rotate to select the operating channel, menu
items, menu settings, and so on�
13 MENU KEY [MENU]
Push to enter or exit the Menu screen�
5
6
7
8
9
10
