9

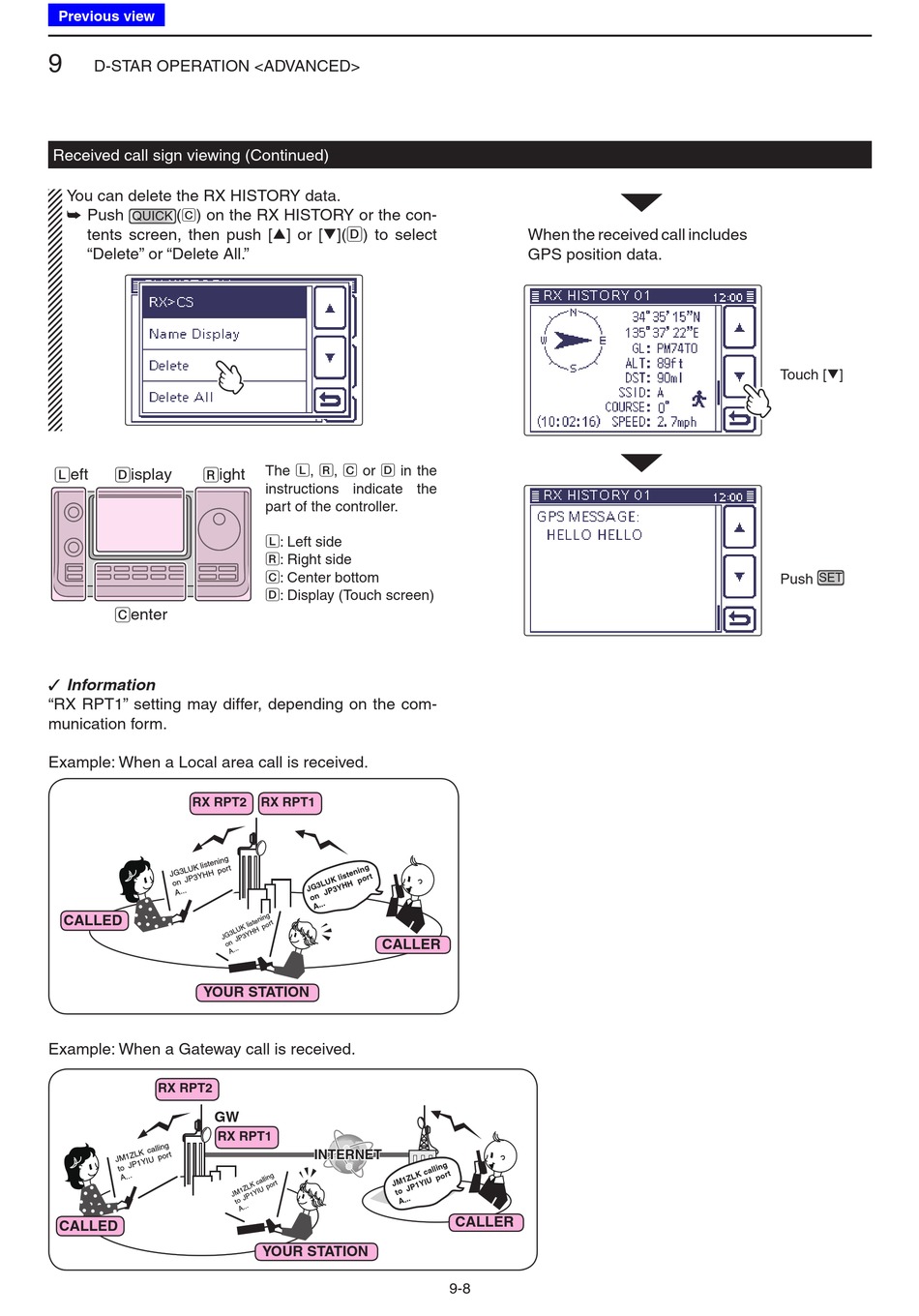

D-STAR OPERATION <ADVANCED>
Received call sign viewing (Continued)
You can delete the RX HISTORY data.
Push
(
) on the RX HISTORY or the con-
➥
QUICK
C
tents screen, then push [∫] or [√](D) to select
"Delete" or "Delete All."
L eft
D isplay
R ight
C enter
Information
✓
"RX RPT1" setting may differ, depending on the com-
munication form.
Example: When a Local area call is received.
RX RPT2
CALLED
YOUR STATION
Example: When a Gateway call is received.
RX RPT2
GW
RX RPT1
CALLED
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
RX RPT1
CALLER
INTERNET
INTERNET
YOUR STATION
When the received call includes
GPS position data.
CALLER
9-8
Touch [√]
Push
SET
