2
INSTALLATION AND CONNECTIONS

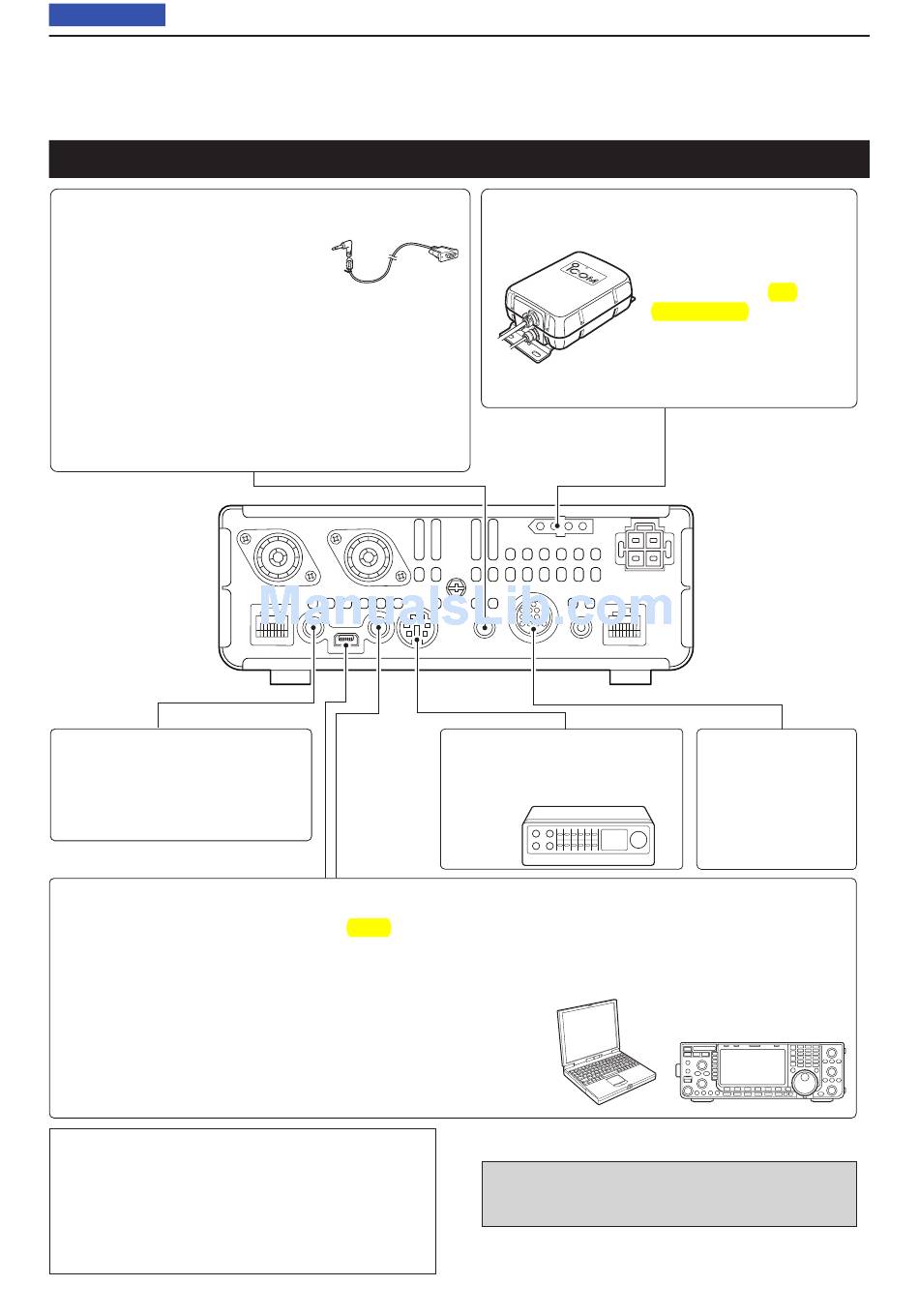

The External Units Connections to a Transceiver
[DATA1] DATA1 JACK
For GPS operation (p. 10-2)
• Connect a GPS receiver to the transceiv-
er.
• The optional OPC-1529R (Data commu-
nication cable) and a 3rd party's GPS re-
ceiver with RS-232C Port are required.
For low-speed data communication in the DV mode (p. 9-17)
• Connect the transceiver to a PC.
• The USB cable can also be used for low-speed data commu-
nication..
[SP] (EXTERNAL) SPEAKER JACK
Similar to the [PHONES/SP] jack
on the controller. Plug in an exter-
nal speaker.
3.5(d) mm/
1
[USB] USB (Universal Serial Bus) PORT
• Remotely control the transceiver using CI-V commands
(p. 20-2)
• Send the received audio to the PC
• Input modulation (pp. 1-18, 17-8)
• Send the decoded RTTY outputs to the PC
• Low-speed data communication in the DV mode (p. 9-17)
• Cloning using the optional CS-7100
(p. 19-5)
• Remotely control using the optional RS-BA1
NOTE: By setting "ACC/USB output selection" of the
Connectors Set mode (p. 17-24), the receiving tone
can normally be output from the [ACC] socket, and
the [USB] port can output an IF signal (12 kHz). This
is required for the Software-Defined Radio (SDR) op-
eration. The Digital Radio Mondiale (DRM) broadcast
can be received using SDR.
OPC-1529R
(Optional)
(p. 2-5)
⁄
˝ plug
8
cloning software
[TUNER] TUNER CONTROL SOCKET (p. 16-1)
AH-4 (Optional)
[DATA2] DATA2 SOCKET (p. 18-2)
Connect a TNC (Terminal Node Con-
troller) for packet communication.
[REMOTE] REMOTE CONTROL JACK
• Remotely control the transceiver using CI-V commands.
(p. 20-2)
• Cloning between transceivers (p. 19-5)
3.5(d) mm/
⁄
˝ plug
1
8
CAUTION: DO NOT connect any device to [RE-
MOTE] when cloning using the optional CS-7100
cloning software
2-7
Connect the control
cable from an op-
tional AH-4 (HF/50
MHz automatic an-
tenna tuner).
[ACC] ACCESSORY
SOCKET (p. 1-19)
Connect control lines
for external equipment
such as TNC or a PC.
.
