Previous view

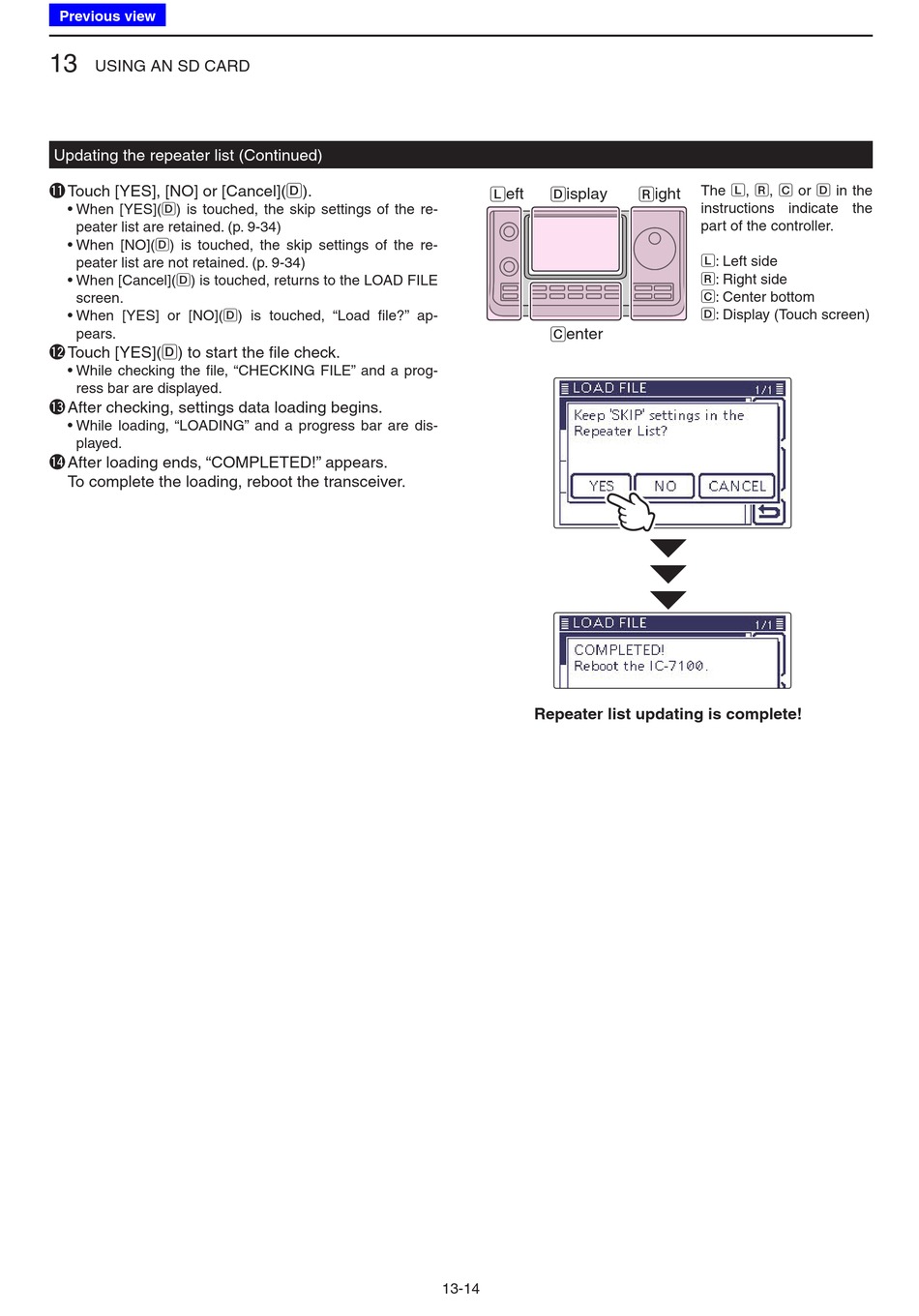

13
USING AN SD CARD
Updating the repeater list (Continued)
!1 Touch [YES], [NO] or [Cancel](D).
• When [YES](D) is touched, the skip settings of the re-
peater list are retained. (p. 9-34)
• When [NO](D) is touched, the skip settings of the re-
peater list are not retained. (p. 9-34)
• When [Cancel](D) is touched, returns to the LOAD FILE
screen.
• When [YES] or [NO](D) is touched, "Load file?" ap-
pears.
!2 Touch [YES](D) to start the file check.
• While checking the file, "CHECKING FILE" and a prog-
ress bar are displayed.
!3 After checking, settings data loading begins.
• While loading, "LOADING" and a progress bar are dis-
played.
!4 After loading ends, "COMPLETED!" appears.
To complete the loading, reboot the transceiver.
L eft
D isplay
C enter
Repeater list updating is complete!
13-14
The L, R, C or D in the
R ight
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
