RECEIVE AND TRANSMIT

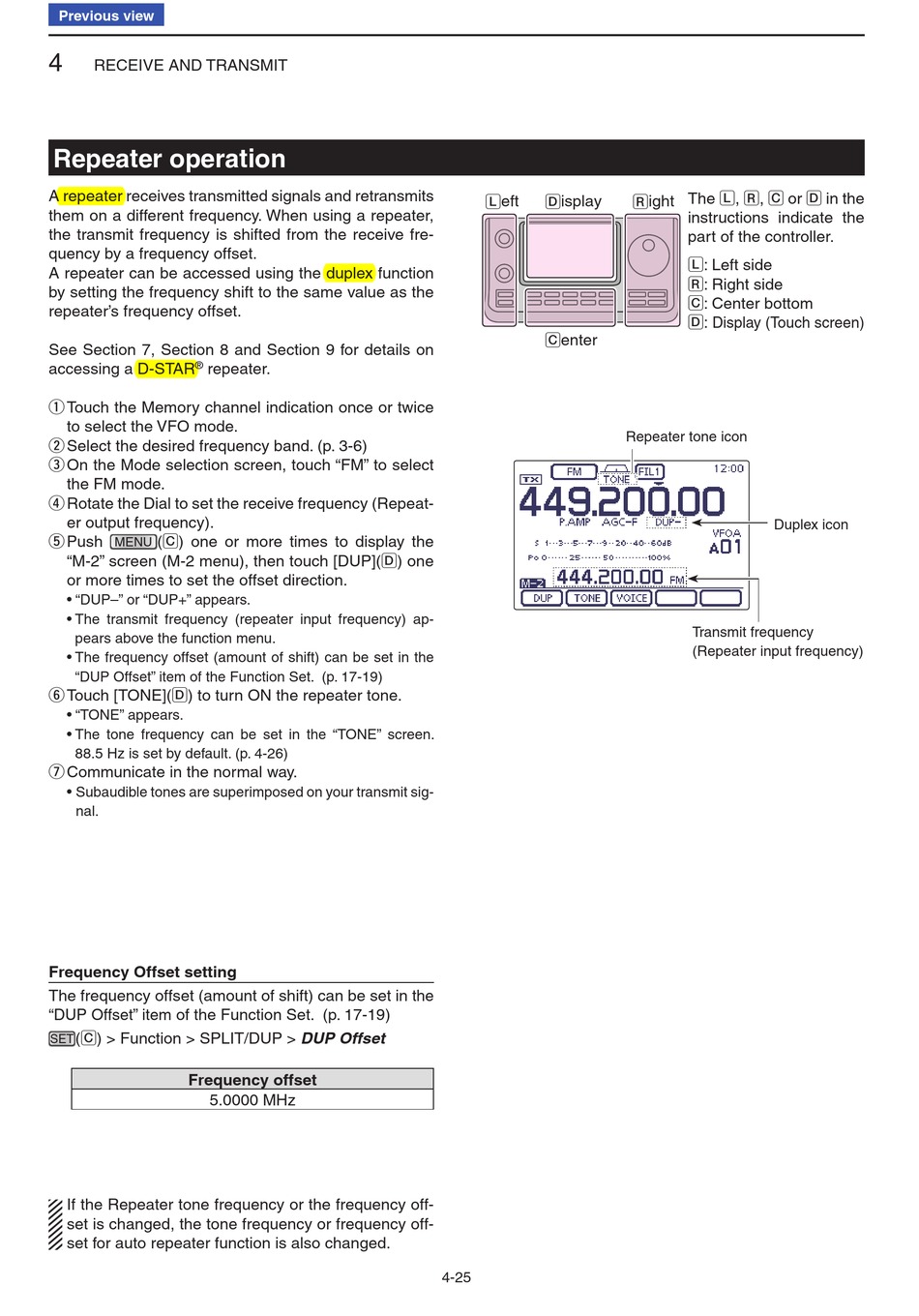

Repeater operation

A repeater receives transmitted signals and retransmits
them on a different frequency. When using a repeater,
the transmit frequency is shifted from the receive fre-
quency by a frequency offset.
A repeater can be accessed using the duplex function
by setting the frequency shift to the same value as the
repeater's frequency offset.
See Section 7, Section 8 and Section 9 for details on
accessing a D-STAR ® repeater.
Touch the Memory channel indication once or twice
q
to select the VFO mode.
Select the desired frequency band. (p. 3-6)
w
On the Mode selection screen, touch "FM" to select
e
the FM mode.
Rotate the Dial to set the receive frequency (Repeat-
r
er output frequency).
t Push (C) one or more times to display the
MENU
"M-2" screen (M-2 menu), then touch [DUP](D) one
or more times to set the offset direction.
• "DUP–" or "DUP+" appears.
• The transmit frequency (repeater input frequency) ap-
pears above the function menu.
• The frequency offset (amount of shift) can be set in the
"DUP Offset" item of the Function Set. (p. 17-19)
Touch [TONE]( D) to turn ON the repeater tone.
y
• "TONE" appears.
• The tone frequency can be set in the "TONE" screen.
88.5 Hz is set by default. (p. 4-26)
Communicate in the normal way.
u
• Subaudible tones are superimposed on your transmit sig-
nal.
Frequency Offset setting
The frequency offset (amount of shift) can be set in the
"DUP Offset" item of the Function Set. (p. 17-19)
(C) > Function > SPLIT/DUP > DUP Offset
SET
Frequency offset
5.0000 MHz
If the Repeater tone frequency or the frequency off-
set is changed, the tone frequency or frequency off-
set for auto repeater function is also changed.
L eft D isplay
C enter
4-25
The L, R, C or D in the
R ight
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
Repeater tone icon
Duplex icon
Transmit frequency
(Repeater input frequency)
