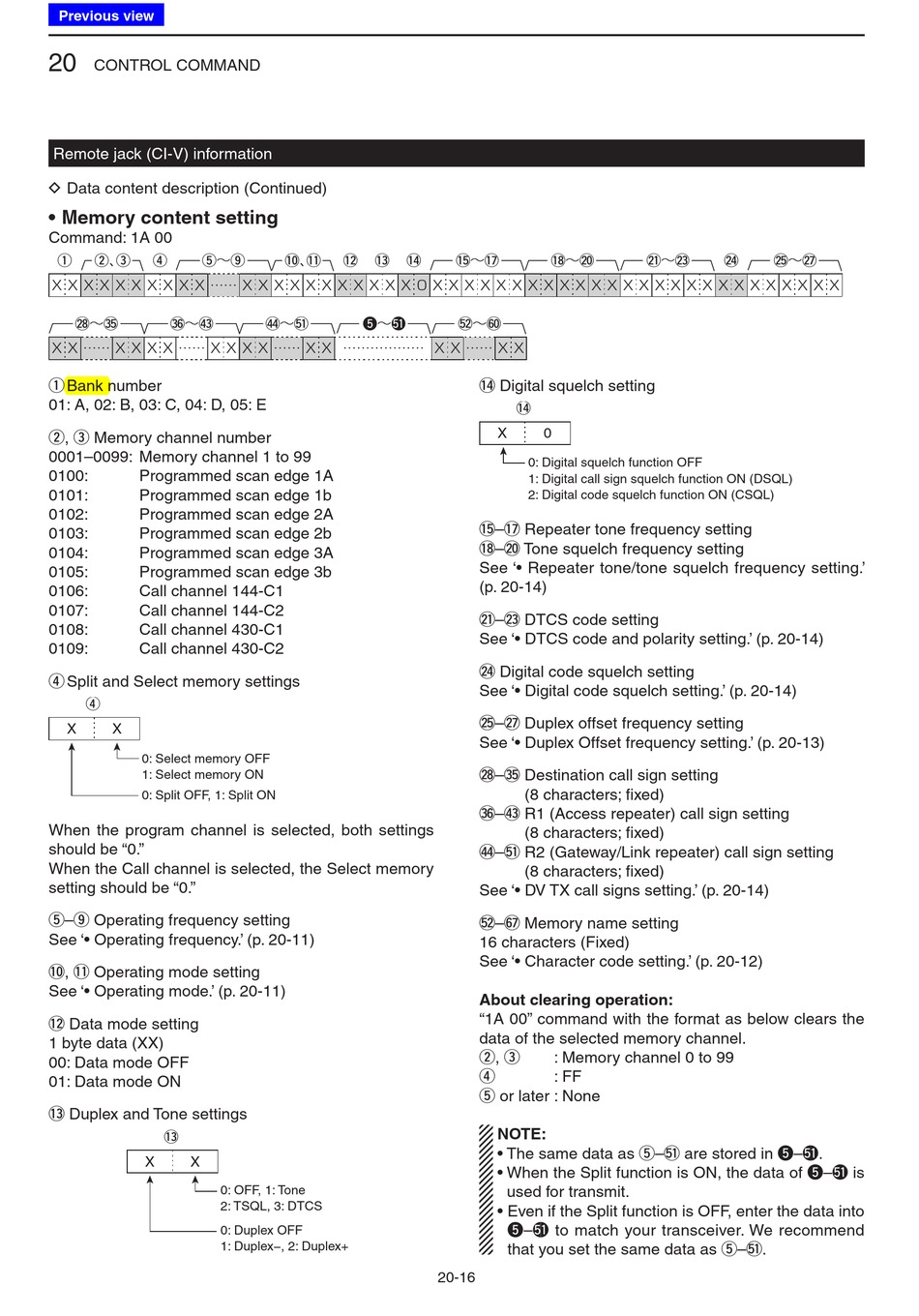

Remote jack (CI-V) information
D
Data content description (Continued)
• Memory content setting
Command: 1A 00
q
w e
r
t o
@8 #5
#6 $3
Bank number
q
01: A, 02: B, 03: C, 04: D, 05: E
w, e Memory channel number
0001–0099: Memory channel 1 to 99
0100:
Programmed scan edge 1A
0101:
Programmed scan edge 1b
0102:
Programmed scan edge 2A
0103:
Programmed scan edge 2b
0104:
Programmed scan edge 3A
0105:
Programmed scan edge 3b
0106:
Call channel 144-C1
0107:
Call channel 144-C2
0108:
Call channel 430-C1
0109:
Call channel 430-C2
Split and Select memory settings
r
r
X
X
0: Select memory OFF
1: Select memory ON
0: Split OFF, 1: Split ON
When the program channel is selected, both settings
should be "0."
When the Call channel is selected, the Select memory
setting should be "0."
t–o Operating frequency setting
See '• Operating frequency.' (p. 20-11)
!0 , !1 Operating mode setting
See '• Operating mode.' (p. 20-11)
!2 Data mode setting
1 byte data (XX)
00: Data mode OFF
01: Data mode ON
!3 Duplex and Tone settings
!3
X
X
0: OFF, 1: Tone
2: TSQL, 3: DTCS
0: Duplex OFF
1: Duplex−, 2: Duplex+
!0 !1
!2
!3
!4
$4 %1
t %1
20-16
!5 !7
!8 @0
%2 ^0
!4 Digital squelch setting
!4
X
0
0: Digital squelch function OFF
1: Digital call sign squelch function ON (DSQL)
2: Digital code squelch function ON (CSQL)
!5 – !7 Repeater tone frequency setting
!8 – @0 Tone squelch frequency setting
See '• Repeater tone/tone squelch frequency setting.'
(p. 20-14)
@1 – @3 DTCS code setting
See '• DTCS code and polarity setting.' (p. 20-14)
@4 Digital code squelch setting
See '• Digital code squelch setting.' (p. 20-14)
@5 – @7 Duplex offset frequency setting
See '• Duplex Offset frequency setting.' (p. 20-13)
@8 – #5 Destination call sign setting
(8 characters; fixed)
#6 – $3 R1 (Access repeater) call sign setting
(8 characters; fixed)
$4 – %1 R2 (Gateway/Link repeater) call sign setting
(8 characters; fixed)
See '• DV TX call signs setting.' (p. 20-14)
%2 – ^7 Memory name setting
16 characters (Fixed)
See '• Character code setting.' (p. 20-12)
About clearing operation:
"1A 00" command with the format as below clears the
data of the selected memory channel.
: Memory channel 0 to 99
w, e
: FF
r
t or later : None
NOTE:
• The same data as t–%1 are stored in t–%1 .
• When the Split function is ON, the data of t–%1 is
used for transmit.
• Even if the Split function is OFF, enter the data into
t–%1 to match your transceiver. We recommend
that you set the same data as t–%1 .
@1 @3
@4
@5 @7
