8

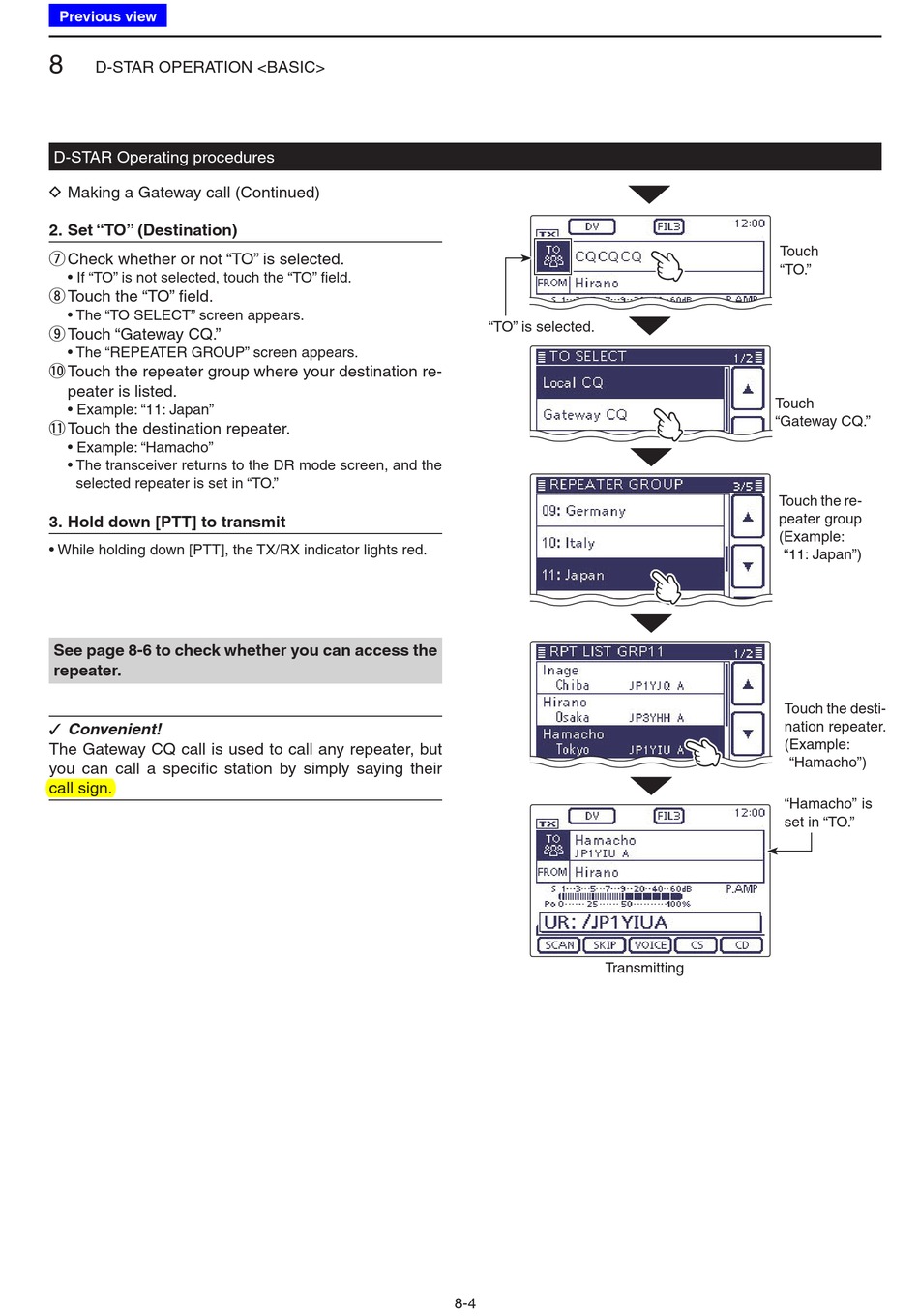

D-STAR OPERATION <BASIC>
D-STAR Operating procedures
D
Making a Gateway call (Continued)
2.
Set "TO" (Destination)
Check whether or not "TO" is selected.
u
• If "TO" is not selected, touch the "TO" field.
Touch the "TO" field.
i
• The "TO SELECT" screen appears.
Touch "Gateway CQ."
o
• The "REPEATER GROUP" screen appears.
!0 Touch the repeater group where your destination re-
peater is listed.
• Example: "11: Japan"
!1 Touch the destination repeater.
• Example: "Hamacho"
• The transceiver returns to the DR mode screen, and the
selected repeater is set in "TO."
3.
Hold down [PTT] to transmit
• While holding down [PTT], the TX/RX indicator lights red.
See page 8-6 to check whether you can access the
repeater.
Convenient!
✓
The Gateway CQ call is used to call any repeater, but
you can call a specific station by simply saying their
call sign.
"TO" is selected.
Transmitting
8-4
Touch
"TO."
Touch
"Gateway CQ."
Touch the re-
peater group
( Example:
"11: Japan")
Touch the desti-
nation repeater.
( Example:
"Hamacho")
"Hamacho" is
set in "TO."
