INTRODUCTION

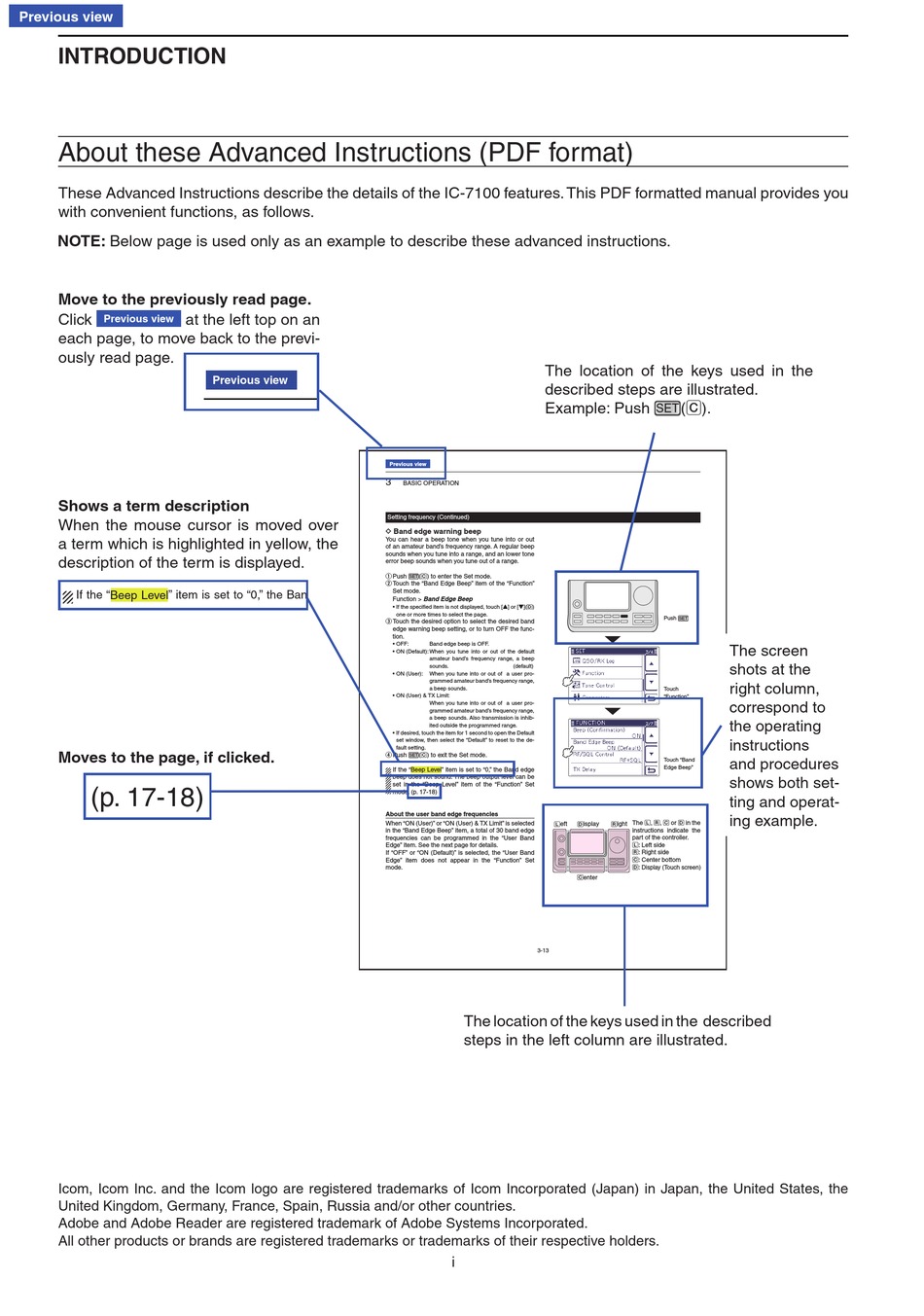

About these Advanced Instructions (PDF format)
These Advanced Instructions describe the details of the IC-7100 features. This PDF formatted manual provides you
with convenient functions, as follows.
NOTE: Below page is used only as an example to describe these advanced instructions.
Move to the previously read page.
Click at the left top on an
Previous view
each page, to move back to the previ-
ously read page.
Shows a term description
When the mouse cursor is moved over
a term which is highlighted in yellow, the
description of the term is displayed.
If the " " item is set to "0," the Band
Beep Le l ve
Moves to the page, if clicked.
(p. 17-18)
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the
United Kingdom, Germany, France, Spain, Russia and/or other countries.
Adobe and Adobe Reader are registered trademark of Adobe Systems Incorporated.
All other products or brands are registered trademarks or trademarks of their respective holders.
Previous view
3
D
You can hear a beep tone when you tune into or out
of an amateur band's frequency range. A regular beep
sounds when you tune into a range, and an lower tone
error beep sounds when you tune out of a range.
q
w
e
r
About the user band edge frequencies
When "ON (User)" or "ON (User) & TX Limit" is selected
in the "Band Edge Beep" item, a total of 30 band edge
frequencies can be programmed in the "User Band
Edge" item. See the next page for details.
If "OFF" or "ON (Default)" is selected, the "User Band
Edge" item does not appear in the "Function" Set
mode.
The location of the keys used in the
described steps are illustrated.
Example: Push
Previous view
BASIC OPERATION
Setting frequency (Continued)
Band edge warning beep
Push (C) to enter the Set mode.
SET
Touch the "Band Edge Beep" item of the "Function"
Set mode.
Function > Band Edge Beep
• If the specifi ed item is not displayed, touch [Y] or [Z](D)
one or more times to select the page.
Touch the desired option to select the desired band
edge warning beep setting, or to turn OFF the func-
tion.
• OFF: Band edge beep is OFF.
• ON (Default): When you tune into or out of the default
amateur band's frequency range, a beep
sounds.

(default)

• ON (User): When you tune into or out of a user pro-
grammed amateur band's frequency range,
a beep sounds.
• ON (User) & TX Limit:
When you tune into or out of a user pro-
grammed amateur band's frequency range,
a beep sounds. Also transmission is inhib-
ited outside the programmed range.
• If desired, touch the item for 1 second to open the Default
set window, then select the "Default" to reset to the de-
fault setting.
Push SET (C) to exit the Set mode.
If the " Beep Le l ve " item is set to "0," the Band edge
beep does not sound. The beep output level can be
set in the "Beep Level" item of the "Function" Set
mode. (p. 17-18)
Left
3-13
The location of the keys used in the described
steps in the left column are illustrated.
i
(C).
SET
Push SET
The screen
shots at the
right column,
Touch
"Function"
correspond to
the operating
instructions
and procedures
Touch "Band
Edge Beep"
shows both set-
ting and operat-
ing example.
The L, R, C or D in the
Display Right
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
Center
