FUNCTIONS FOR TRANSMIT

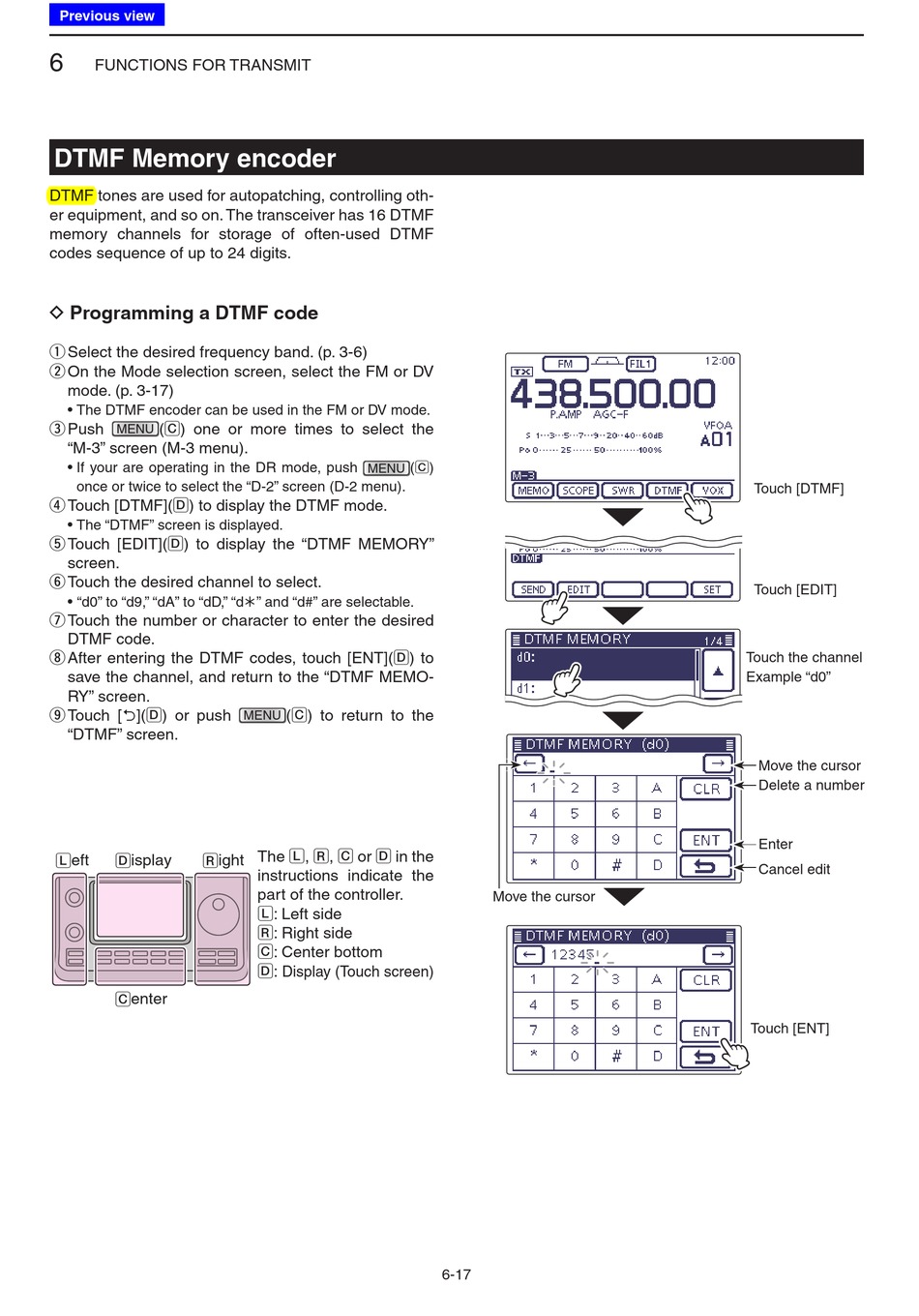

DTMF Memory encoder

DTMF tones are used for autopatching, controlling oth-
er equipment, and so on. The transceiver has 16 DTMF
memory channels for storage of often-used DTMF
codes sequence of up to 24 digits.

D Programming a DTMF code

Select the desired frequency band. (p. 3-6)
q
On the Mode selection screen, select the FM or DV
w
mode. (p. 3-17)
• The DTMF encoder can be used in the FM or DV mode.
Push (C) one or more times to select the
e
MENU
"M-3" screen (M-3 menu).
• If your are operating in the DR mode, push
once or twice to select the "D-2" screen (D-2 menu).
Touch [DTMF]( D) to display the DTMF mode.
r
• The "DTMF" screen is displayed.
Touch [EDIT]( D) to display the "DTMF MEMORY"
t
screen.
Touch the desired channel to select.
y
• "d0" to "d9," "dA" to "dD," "d" and "d#" are selectable.
Touch the number or character to enter the desired
u
DTMF code.
After entering the DTMF codes, touch [ENT](
i
save the channel, and return to the "DTMF MEMO-
RY" screen.
Touch [ ](D) or push
o
"DTMF" screen.
L eft D isplay R ight
C enter
(C)
MENU
D) to
(C) to return to the
MENU
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
Move the cursor
6-17
Touch [DTMF]
Touch [EDIT]
Touch the channel
Example "d0"
Move the cursor
Delete a number
Enter
Cancel edit
Touch [ENT]
