Previous view

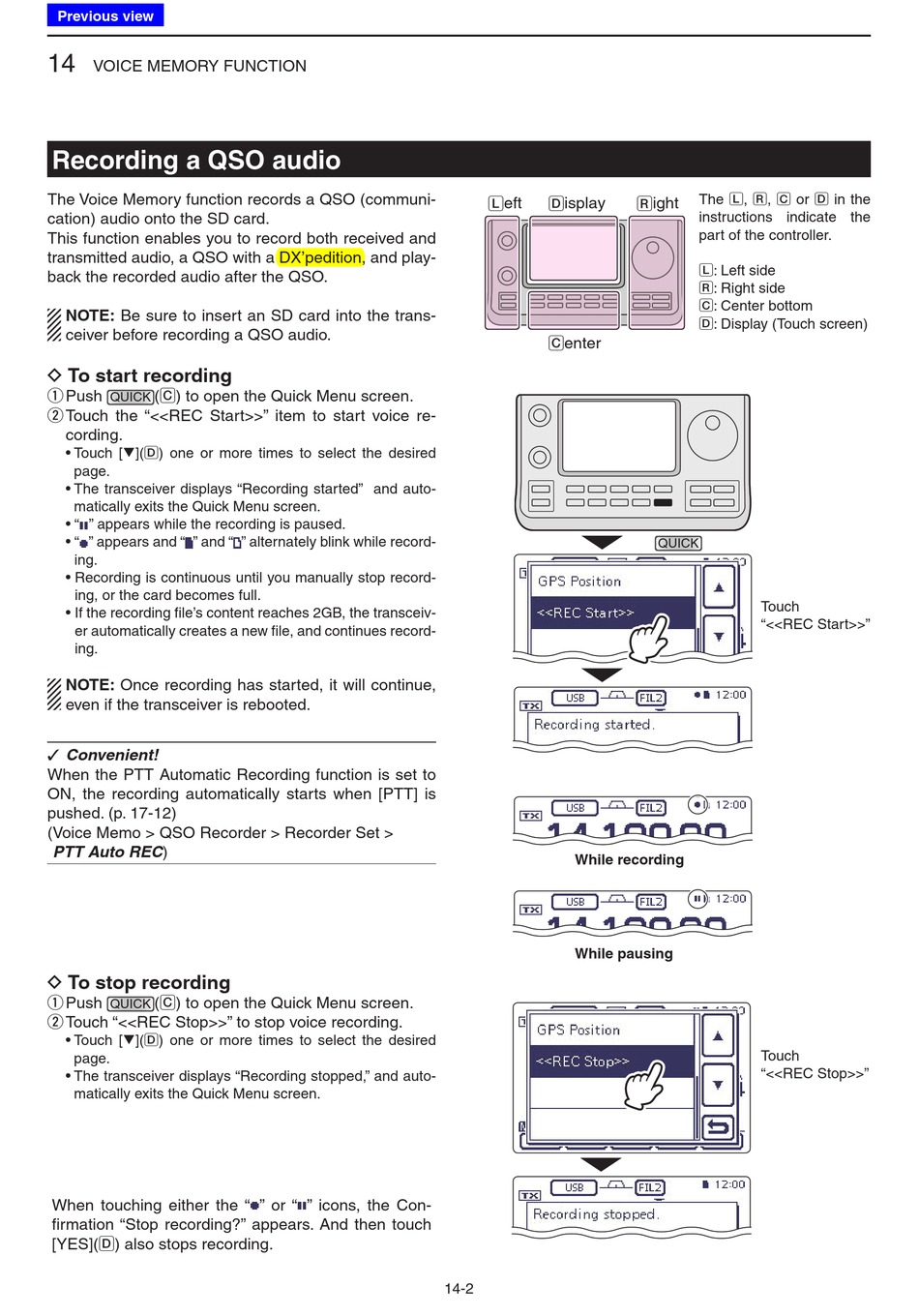

14
VOICE MEMORY FUNCTION
Recording a QSO audio
The Voice Memory function records a QSO (communi-
cation) audio onto the SD card.
This function enables you to record both received and
transmitted audio, a QSO with a DX'pedition, and play-
back the recorded audio after the QSO.
NOTE: Be sure to insert an SD card into the trans-
ceiver before recording a QSO audio.
D To start recording
Push
(C) to open the Quick Menu screen.
q
QUICK
Touch the "<<REC Start>>" item to start voice re-
w
cording.
• Touch [√](D) one or more times to select the desired
page.
• The transceiver displays "Recording started" and auto-
matically exits the Quick Menu screen.
• " " appears while the recording is paused.
• " " appears and " " and " " alternately blink while record-
ing.
• Recording is continuous until you manually stop record-
ing, or the card becomes full.
• If the recording file's content reaches 2GB, the transceiv-
er automatically creates a new file, and continues record-
ing.
NOTE: Once recording has started, it will continue,
even if the transceiver is rebooted.
Convenient!
✓
When the PTT Automatic Recording function is set to
ON, the recording automatically starts when [PTT] is
pushed. (p. 17-12)
( Voice Memo > QSO Recorder > Recorder Set >
PTT Auto REC)
D To stop recording
Push
(C) to open the Quick Menu screen.
q
QUICK
Touch "<<REC Stop>>" to stop voice recording.
w
• Touch [√](D) one or more times to select the desired
page.
• The transceiver displays "Recording stopped," and auto-
matically exits the Quick Menu screen.
When touching either the " " or " " icons, the Con-
firmation "Stop recording?" appears. And then touch
[YES](D) also stops recording.
L eft
D isplay
C enter
While recording
While pausing
14-2
The L, R, C or D in the
R ight
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
QUICK
Touch
"<<REC Start>>"
Touch
"<<REC Stop>>"
