9

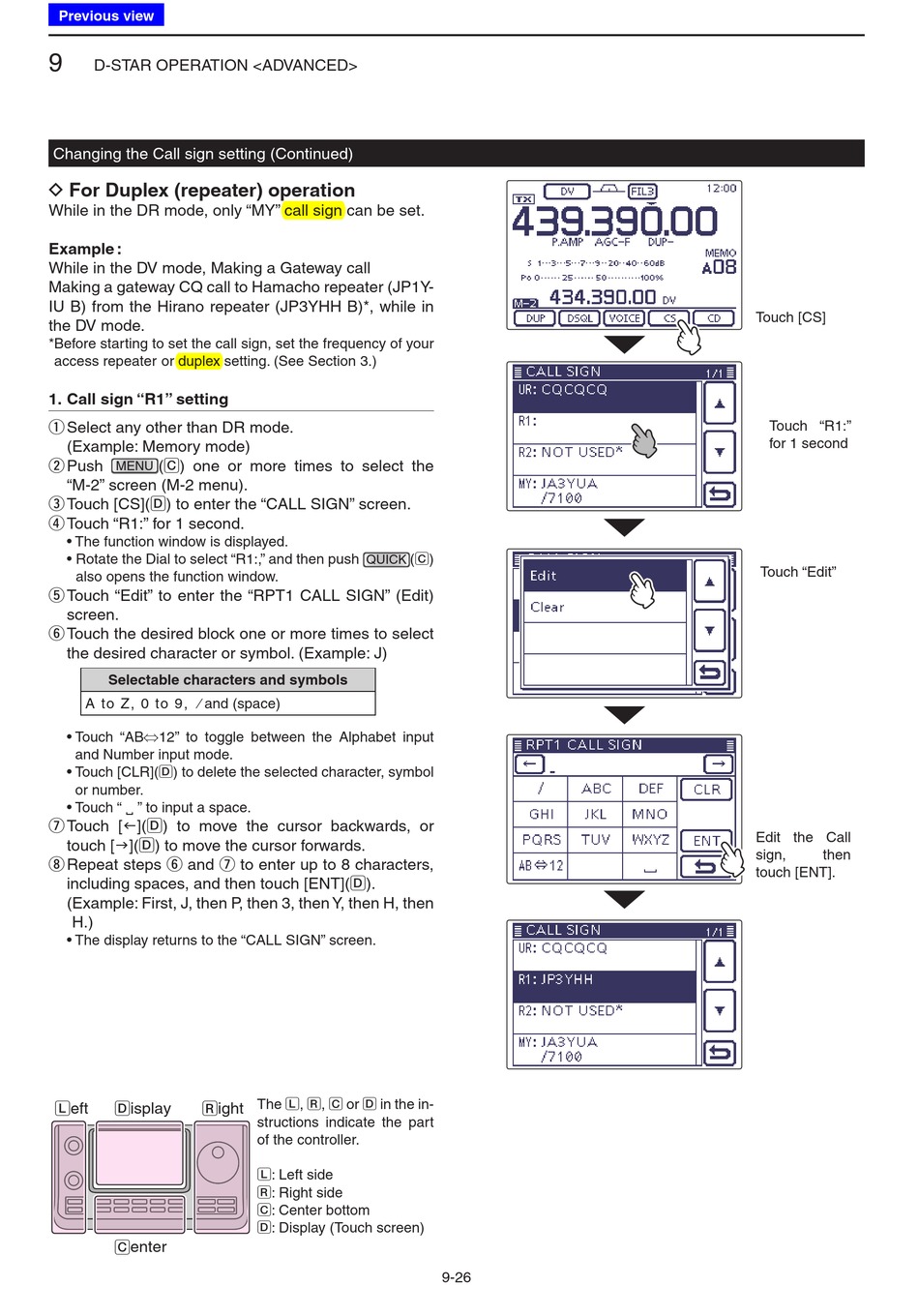

D-STAR OPERATION <ADVANCED>
Changing the Call sign setting (Continued)

D For Duplex (repeater) operation

While in the DR mode, only "MY" call sign can be set.
Example :
While in the DV mode, Making a Gateway call
Making a gateway CQ call to Hamacho repeater (JP1Y-
IU B) from the Hirano repeater (JP3YHH B)*, while in
the DV mode.
* Before starting to set the call sign, set the frequency of your
access repeater or duplex setting. (See Section 3.)
1. Call sign "R1" setting
Select any other than DR mode.
q
(Example: Memory mode)
Push (C) one or more times to select the
w
MENU
"M-2" screen (M-2 menu).
Touch [CS]( D) to enter the "CALL SIGN" screen.
e
Touch "R1:" for 1 second.
r
• The function window is displayed.
• Rotate the Dial to select "R1:," and then push
also opens the function window.
t Touch "Edit" to enter the "RPT1 CALL SIGN" (Edit)
screen.
Touch the desired block one or more times to select
y
the desired character or symbol. (Example: J)
Selectable characters and symbols
A to Z, 0 to 9, ⁄ and (space)
• Touch "AB⇔12" to toggle between the Alphabet input
and Number input mode.
• Touch [CLR](D) to delete the selected character, symbol
or number.
• Touch "  " to input a space.
Touch [ f](D) to move the cursor backwards, or
u
touch [g](D) to move the cursor forwards.
Repeat steps y and u to enter up to 8 characters,
i
including spaces, and then touch [ENT](D).
( Example: First, J, then P, then 3, then Y, then H, then
H.)
• The display returns to the "CALL SIGN" screen.
L eft D isplay R ight
C enter
(C)
QUICK
The L, R, C or D in the in-
structions indicate the part
of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
9-26
Touch [CS]
Touch "R1:"
for 1 second
Touch "Edit"
Edit the Call
sign, then
touch [ENT].
