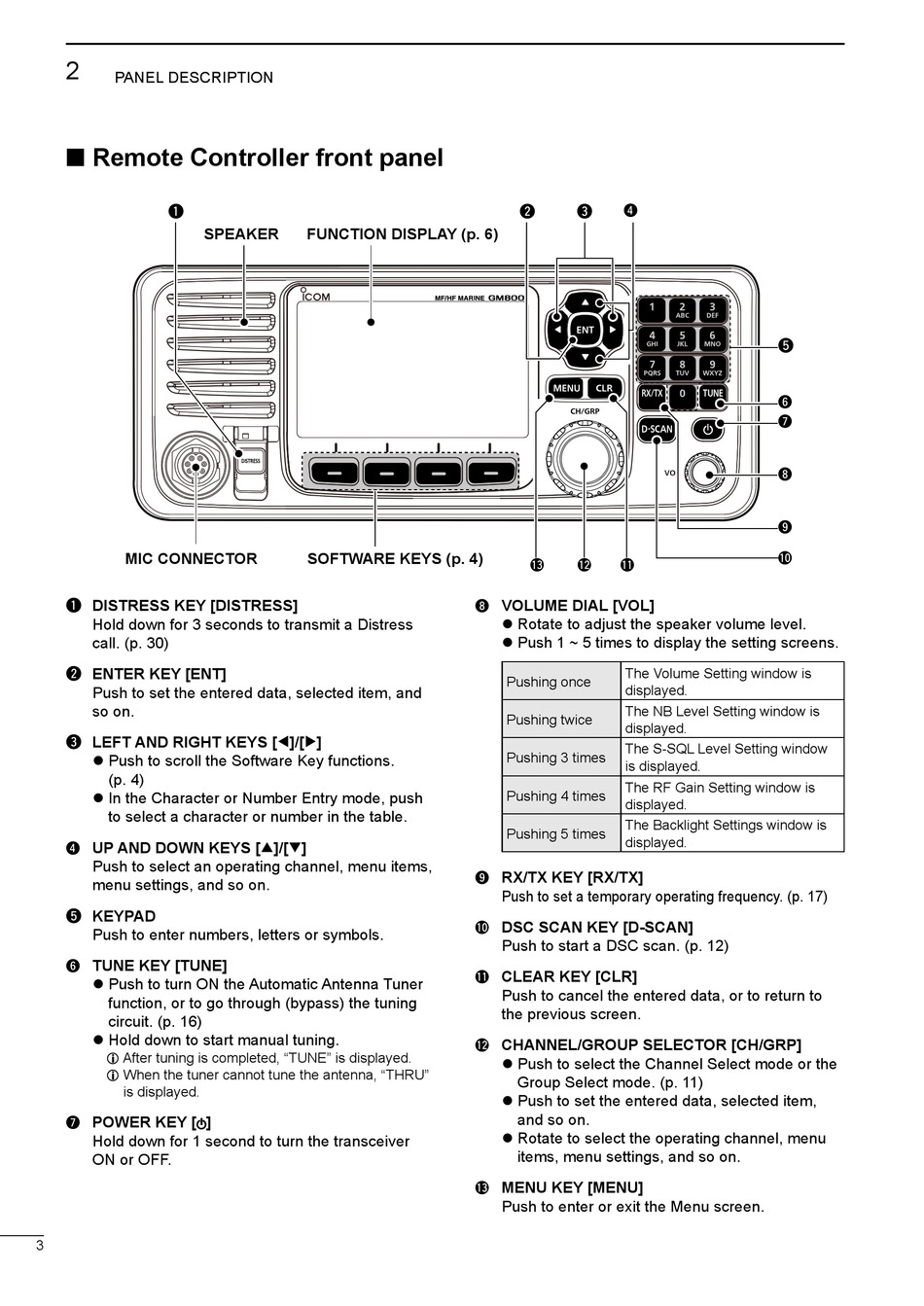

PANEL DESCRIPTION

■ Remote Controller front panel

q
SPEAKER
MIC CONNECTOR
q DISTRESS KEY [DISTRESS]
Hold down for 3 seconds to transmit a Distress
call. (p. 30)
w ENTER KEY [ENT]
Push to set the entered data, selected item, and
so on.
e LEFT AND RIGHT KEYS [Ω]/[≈]
 Push to scroll the Software Key functions.
(p. 4)
 In the Character or Number Entry mode, push
to select a character or number in the table.
UP AND DOWN KEYS [∫]/[√]
r
Push to select an operating channel, menu items,
menu settings, and so on.
t KEYPAD
Push to enter numbers, letters or symbols.
TUNE KEY [TUNE]
y
 Push to turn ON the Automatic Antenna Tuner
function, or to go through (bypass) the tuning
circuit. (p. 16)
 Hold down to start manual tuning.
L After tuning is completed, "TUNE" is displayed.
L When the tuner cannot tune the antenna, "THRU"
is displayed.
POWER KEY [ ]
u
Hold down for 1 second to turn the transceiver
ON or OFF.
3
FUNCTION DISPLAY (p. 6)
SOFTWARE KEYS (p. 4)
i
o
!0
!1
!2
!3
w e r
!3 !2 !1
VOLUME DIAL [VOL]
 Rotate to adjust the speaker volume level.
 Push 1 ~ 5 times to display the setting screens.
The Volume Setting window is
Pushing once
displayed.
The NB Level Setting window is
Pushing twice
displayed.
The S-SQL Level Setting window
Pushing 3 times
is displayed.
The RF Gain Setting window is
Pushing 4 times
displayed.
The Backlight Settings window is
Pushing 5 times
displayed.
RX/TX KEY [RX/TX]
Push to set a temporary operating frequency. (p. 17)
DSC SCAN KEY [D-SCAN]
Push to start a DSC scan. (p. 12)
CLEAR KEY [CLR]
Push to cancel the entered data, or to return to
the previous screen.
CHANNEL/GROUP SELECTOR [CH/GRP]
 Push to select the Channel Select mode or the
Group Select mode. (p. 11)
 Push to set the entered data, selected item,
and so on.
 Rotate to select the operating channel, menu
items, menu settings, and so on.
MENU KEY [MENU]
Push to enter or exit the Menu screen.
