9

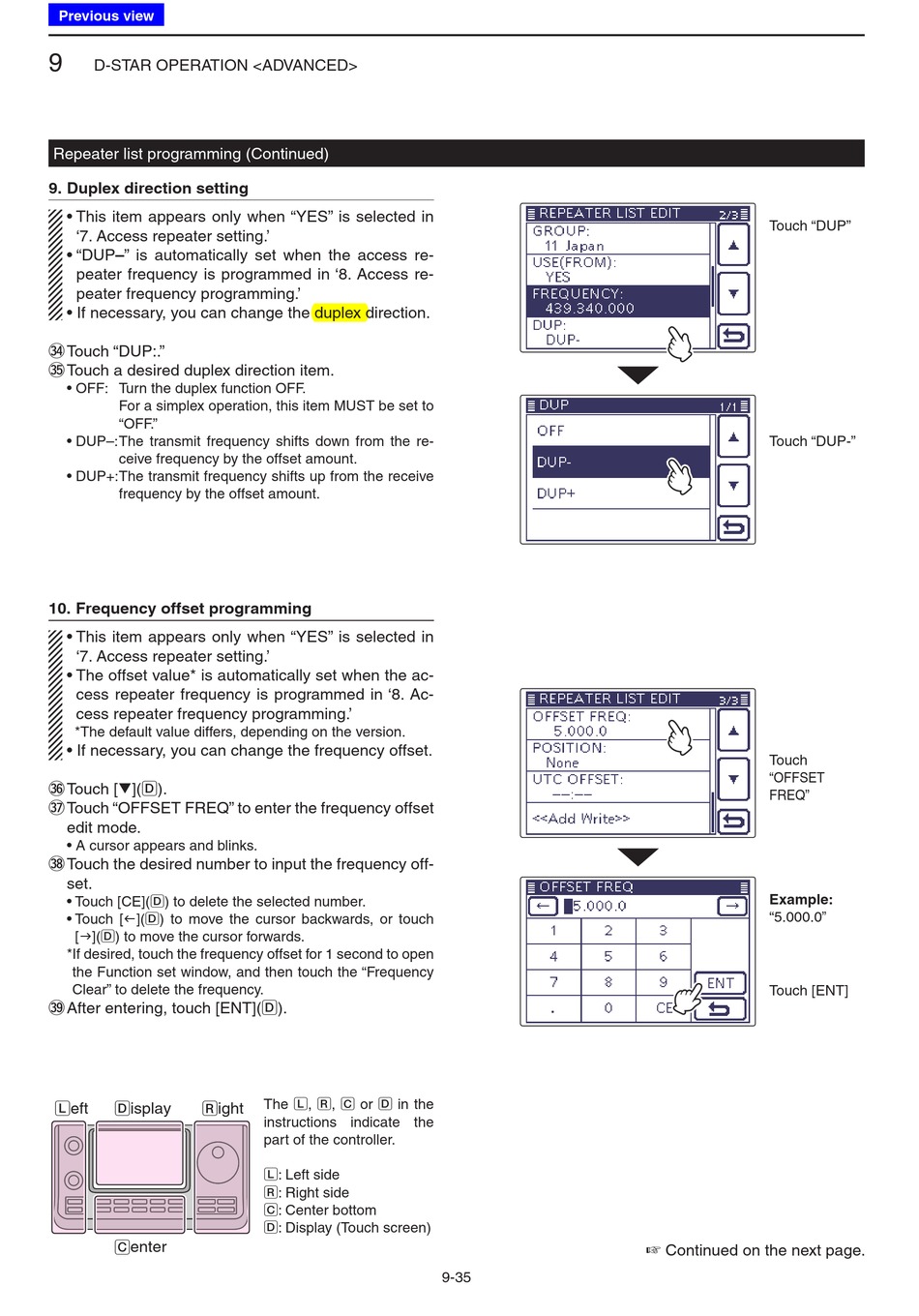

D-STAR OPERATION <ADVANCED>
Repeater list programming (Continued)
9. Duplex direction setting
• This item appears only when "YES" is selected in
'7. Access repeater setting.'
• "DUP–" is automatically set when the access re-
peater frequency is programmed in '8. Access re-
peater frequency programming.'
• If necessary, you can change the duplex direction.
#4 Touch "DUP:."
#5 Touch a desired duplex direction item.
• OFF: Turn the duplex function OFF.
For a simplex operation, this item MUST be set to
"OFF."
• DUP–:The transmit frequency shifts down from the re-
ceive frequency by the offset amount.
• DUP+:The transmit frequency shifts up from the receive
frequency by the offset amount.
10. Frequency offset programming
• This item appears only when "YES" is selected in
'7. Access repeater setting.'
• The offset value* is automatically set when the ac-
cess repeater frequency is programmed in '8. Ac-
cess repeater frequency programming.'
*The default value differs, depending on the version.
• If necessary, you can change the frequency offset.
#6 Touch [√](D).
#7 Touch "OFFSET FREQ" to enter the frequency offset
edit mode.
• A cursor appears and blinks.
#8 Touch the desired number to input the frequency off-
set.
• Touch [CE](D) to delete the selected number.
• Touch [f](D) to move the cursor backwards, or touch
[g](D) to move the cursor forwards.
* If desired, touch the frequency offset for 1 second to open
the Function set window, and then touch the "Frequency
Clear" to delete the frequency.
#9 After entering, touch [ENT](D).
L eft D isplay R ight
C enter
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
9-35
Touch "DUP"
Touch "DUP-"
Touch
"OFFSET
FREQ"
Example:
"5.000.0"
Touch [ENT]
☞ Continued on the next page.
