3
BASIC OPERATION

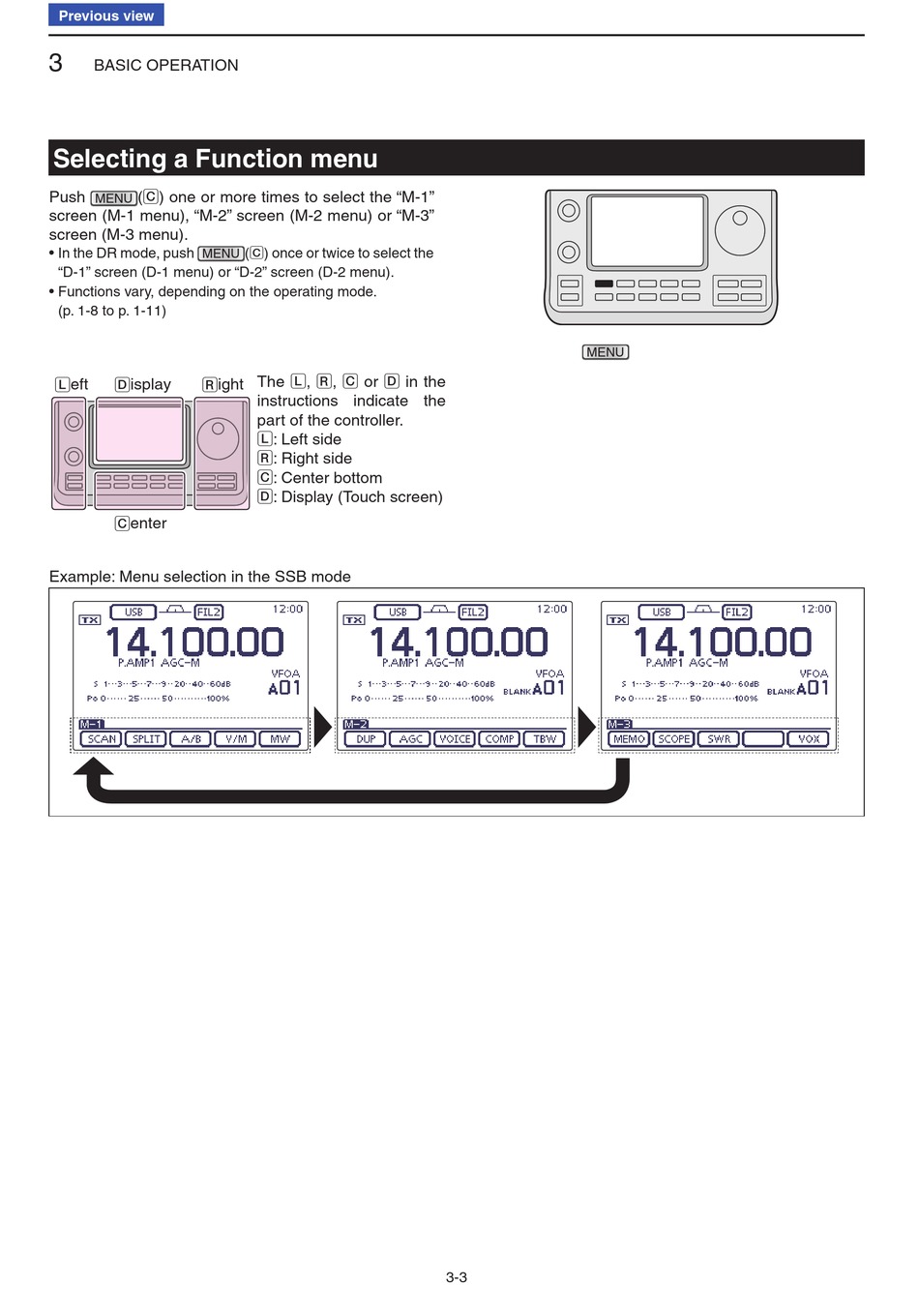

Selecting a Function menu
Push
(C) one or more times to select the "M-1"
MENU
screen (M-1 menu), "M-2" screen (M-2 menu) or "M-3"
screen (M-3 menu).
• In the DR mode, push
MENU
"D-1" screen (D-1 menu) or "D-2" screen (D-2 menu).
• Functions vary, depending on the operating mode.
(p. 1-8 to p. 1-11)
L eft
D isplay
R ight
C enter
Example: Menu selection in the SSB mode
(C) once or twice to select the
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
MENU
3-3
