D Full Break-In Operation - Icom IC-7200 Instruction Manual

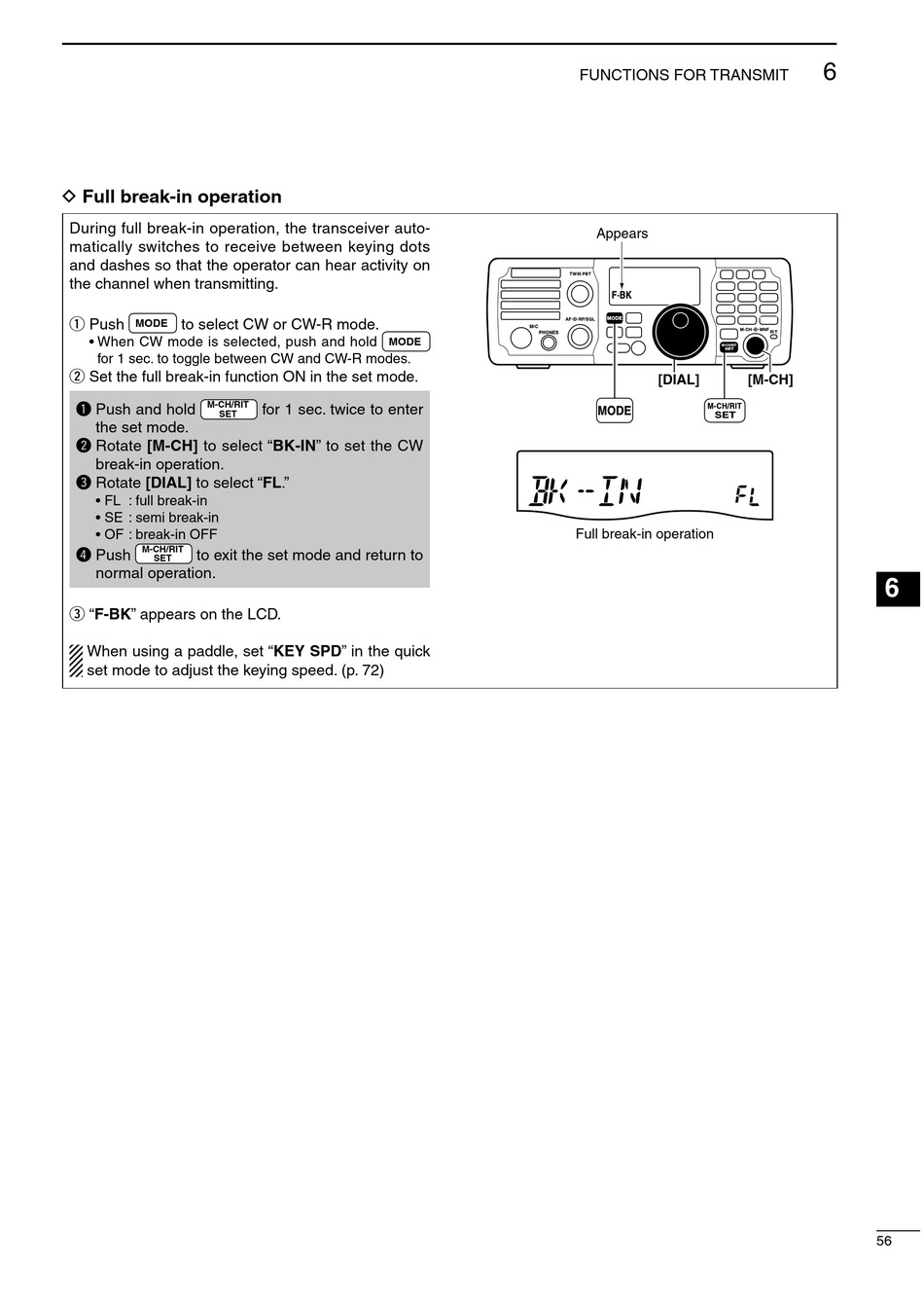

D Full break-in operation

During full break-in operation, the transceiver auto-
matically switches to receive between keying dots
and dashes so that the operator can hear activity on
the channel when transmitting.
q Push to select CW or CW-R mode.
MODE
• When CW mode is selected, push and hold
for 1 sec. to toggle between CW and CW-R modes.
w Set the full break-in function ON in the set mode.
M-CH/RIT
q Push and hold
SET
the set mode.
w Rotate [M-CH] to select "BK-IN" to set the CW
break-in operation.
e Rotate [DIAL] to select "FL."
• FL : full break-in
• SE : semi break-in
• OF : break-in OFF
M-CH/RIT
r Push to exit the set mode and return to
SET
normal operation.
e "F-BK" appears on the LCD.
When using a paddle, set "KEY SPD" in the quick
set mode to adjust the keying speed. (p. 72)
MODE
for 1 sec. twice to enter
FUNCTIONS FOR TRANSMIT
Appears
NB NR
V/M 1 A/B
1.8 =
4
MW M-CL
10
7
COMP SCAN
21
.
MODE TS
RIT MNF
GENE
TUNER FILTER
P.AMP
ATT
M-CH/RIT
SPCH
SET
[DIAL] [M-CH]
Full break-in operation
