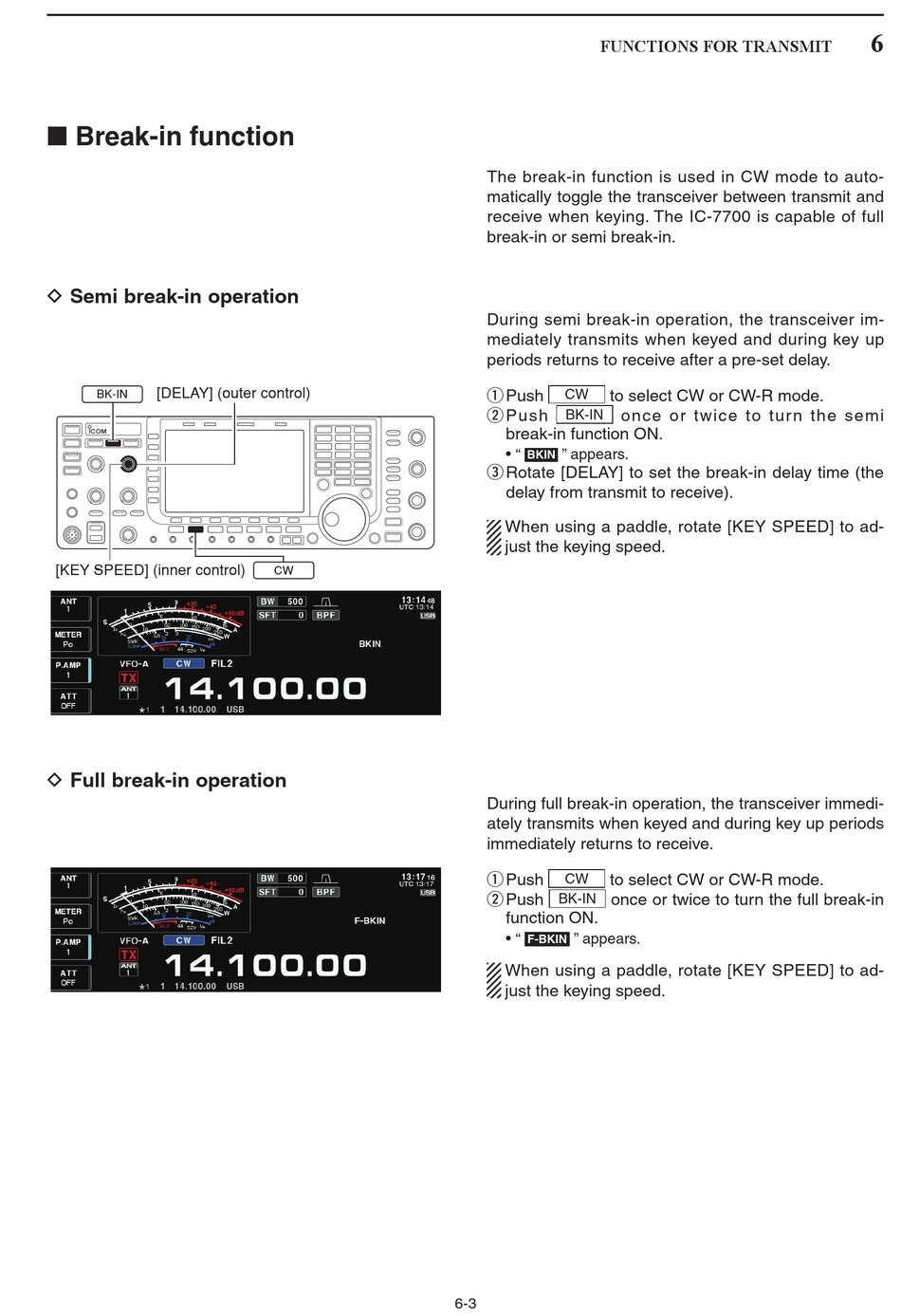

■ Break-in function

D Semi break-in operation

[DELAY] (outer control)
BK-IN
[KEY SPEED] (inner control)

D Full break-in operation

CW
FUNCTIONS FOR TRANSMIT
The break-in function is used in CW mode to auto-
matically toggle the transceiver between transmit and
receive when keying. The IC-7700 is capable of full
break-in or semi break-in.
During semi break-in operation, the transceiver im-
mediately transmits when keyed and during key up
periods returns to receive after a pre-set delay.
q Push CW to select CW or CW-R mode.
w Push BK-IN once or twice to tur n the semi
break-in function ON.
• " " appears.
BKIN
e Rotate [DELAY] to set the break-in delay time (the
delay from transmit to receive).
When using a paddle, rotate [KEY SPEED] to ad-
just the keying speed.
During full break-in operation, the transceiver immedi-
ately transmits when keyed and during key up periods
immediately returns to receive.
q Push CW to select CW or CW-R mode.
w Push once or twice to turn the full break-in
BK-IN
function ON.
• " " appears.
F-BKIN
When using a paddle, rotate [KEY SPEED] to ad-
just the keying speed.
6-3
6
