6
FUNCTIONS FOR TRANSMIT

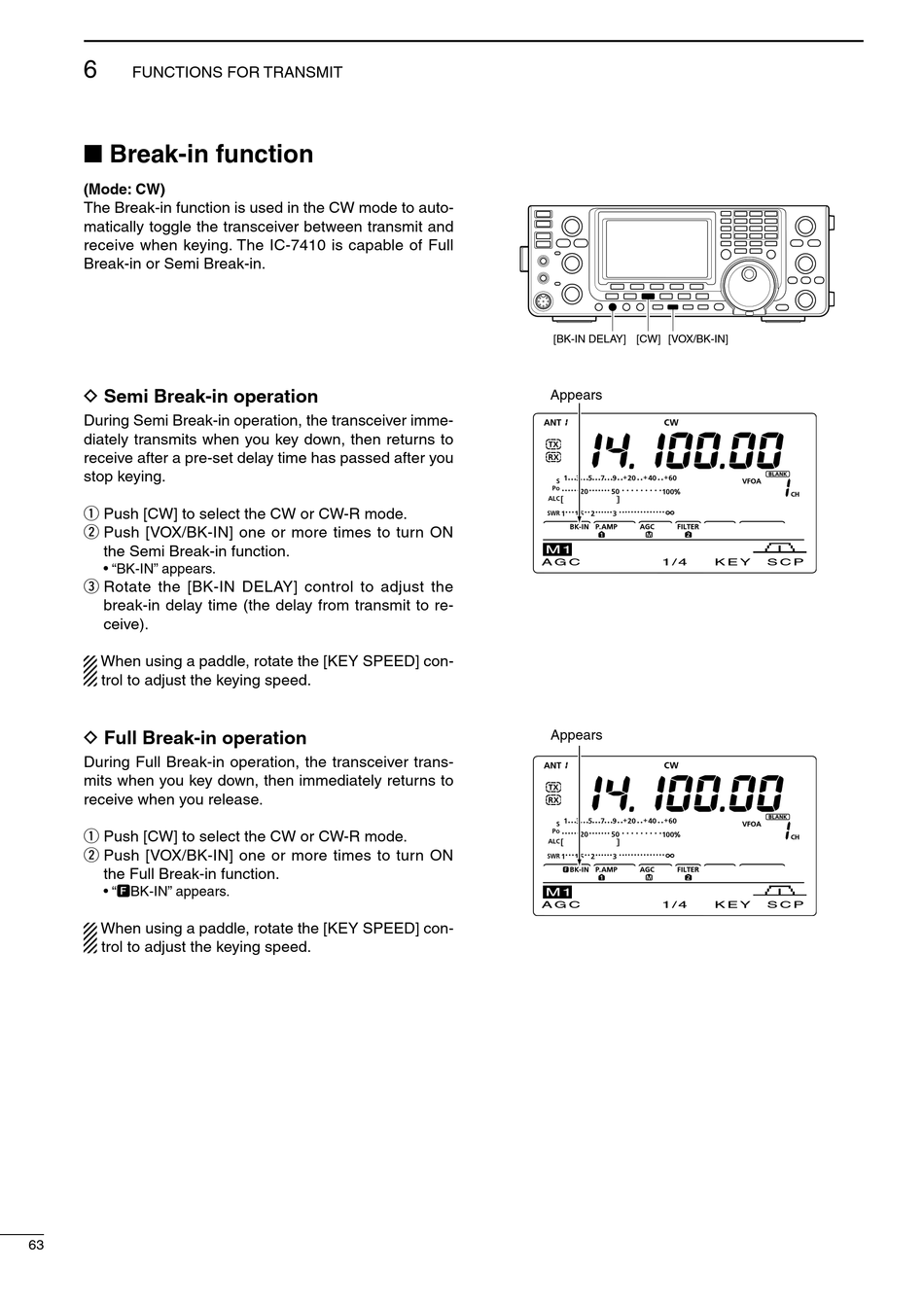

■ Break-in function

(Mode: CW)
The Break-in function is used in the CW mode to auto-
matically toggle the transceiver between transmit and
receive when keying. The IC-7410 is capable of Full
Break-in or Semi Break-in.

D Semi Break-in operation

During Semi Break-in operation, the transceiver imme-
diately transmits when you key down, then returns to
receive after a pre-set delay time has passed after you
stop keying.
q Push [CW] to select the CW or CW-R mode.
w Push [VOX/BK-IN] one or more times to turn ON
the Semi Break-in function.
• "BK-IN" appears.
e Rotate the [BK-IN DELAY] control to adjust the
break-in delay time (the delay from transmit to re-
ceive).
When using a paddle, rotate the [KEY SPEED] con-
trol to adjust the keying speed.

D Full Break-in operation

During Full Break-in operation, the transceiver trans-
mits when you key down, then immediately returns to
receive when you release.
q Push [CW] to select the CW or CW-R mode.
w Push [VOX/BK-IN] one or more times to turn ON
the Full Break-in function.
• "FBK-IN" appears.
When using a paddle, rotate the [KEY SPEED] con-
trol to adjust the keying speed.
63
[BK-IN DELAY] [CW] [VOX/BK-IN]
Appears
M1
A G C 1 / 4 K E Y
Appears
M1
A G C 1 / 4 K E Y
S C P
S C P
