8
FUNCTIONS FOR TRANSMIT

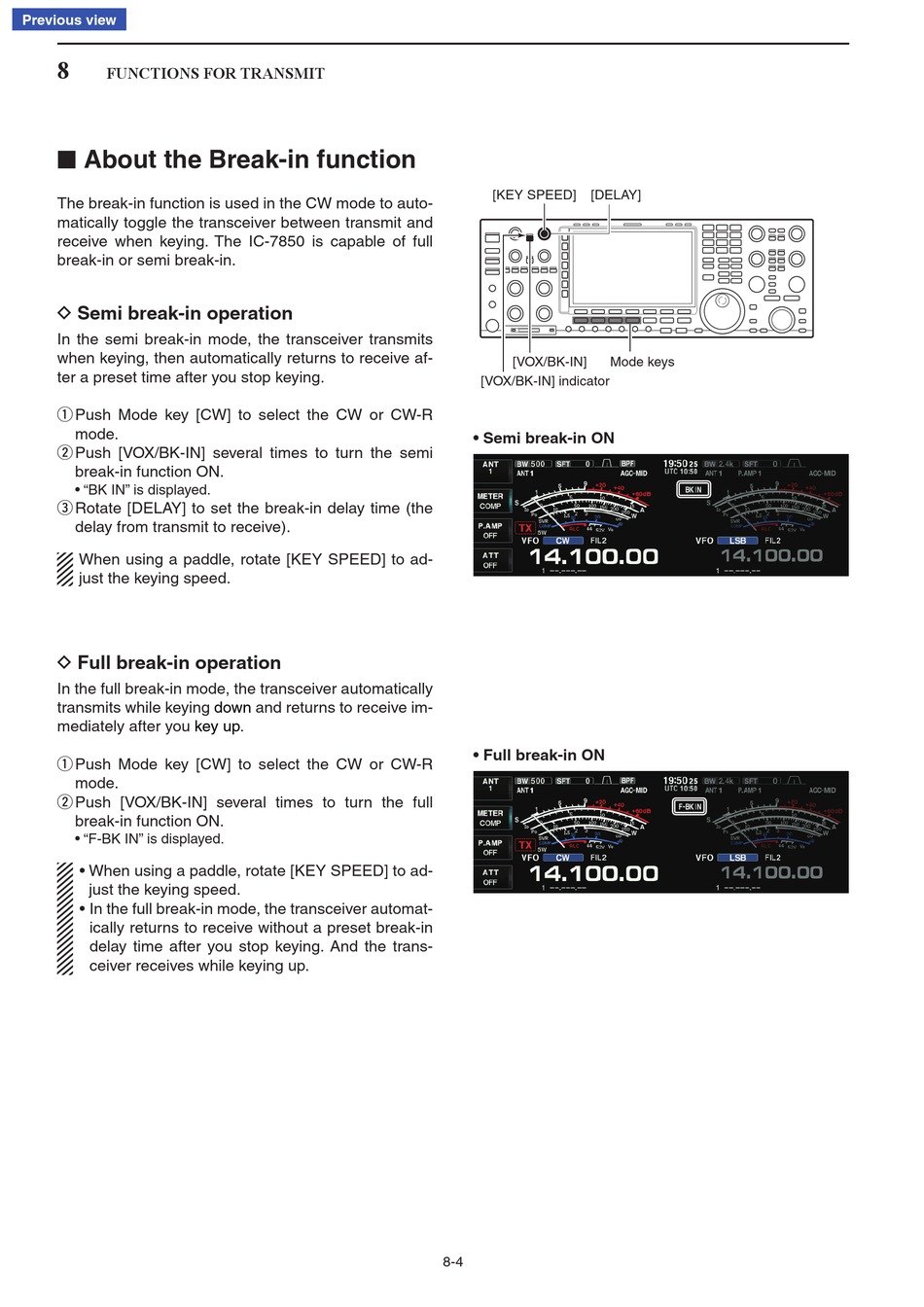

■ About the Break-in function

The break-in function is used in the CW mode to auto-
matically toggle the transceiver between transmit and
receive when keying. The IC-7850 is capable of full
break-in or semi break-in.
D Semi break-in operation
In the semi break-in mode, the transceiver transmits
when keying, then automatically returns to receive af-
ter a preset time after you stop keying.
Push Mode key [CW] to select the CW or CW-R
q
mode.
Push [VOX/BK-IN] several times to turn the semi
w
break-in function ON.
• "BK IN" is displayed.
Rotate [DELAY] to set the break-in delay time (the
e
delay from transmit to receive).
When using a paddle, rotate [KEY SPEED] to ad-
just the keying speed.
D Full break-in operation
In the full break-in mode, the transceiver automatically
transmits while keying
mediately after you key
Push Mode key [CW] to select the CW or CW-R
q
mode.
Push [VOX/BK-IN] several times to turn the full
w
break-in function ON.
• "F-BK IN" is displayed.
• When using a paddle, rotate [KEY SPEED] to ad-
just the keying speed.
• In the full break-in mode, the transceiver automat-
ically returns to receive without a preset break-in
delay time after you stop keying. And the trans-
ceiver receives while keying up.
down and returns to receive im-
up.
[KEY SPEED] [DELAY]
[VOX/BK-IN] Mode keys
[VOX/BK-IN] indicator
• Semi break-in ON
• Full break-in ON
8-4
