 Port Mode
Configuration
 Max Dynamic Clients
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.

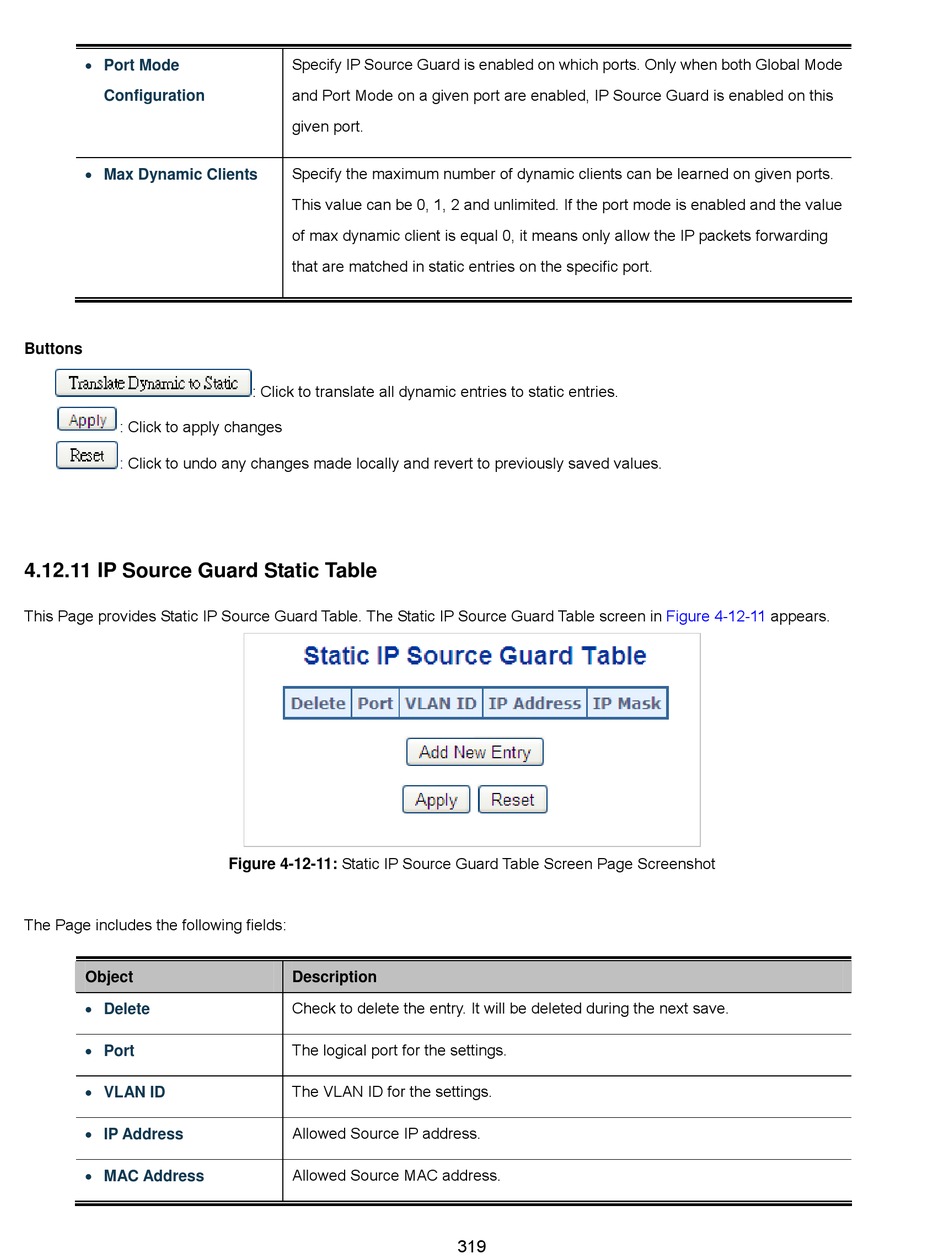

4.12.11 IP Source Guard Static Table

This Page provides Static IP Source Guard Table. The Static IP Source Guard Table screen in
The Page includes the following fields:
Object
 Delete
 Port
 VLAN ID
 IP Address
 MAC Address
Specify IP Source Guard is enabled on which ports. Only when both Global Mode
and Port Mode on a given port are enabled, IP Source Guard is enabled on this
given port.
Specify the maximum number of dynamic clients can be learned on given ports.
This value can be 0, 1, 2 and unlimited. If the port mode is enabled and the value
of max dynamic client is equal 0, it means only allow the IP packets forwarding
that are matched in static entries on the specific port.
: Click to translate all dynamic entries to static entries.
Figure 4-12-11: Static IP Source Guard Table Screen Page Screenshot
Description
Check to delete the entry. It will be deleted during the next save.
The logical port for the settings.
The VLAN ID for the settings.
Allowed Source IP address.
Allowed Source MAC address.
319
Figure 4-12-11 appears.
