4.4 Port Management

Use the Port Menu to display or configure the Managed Switch's ports. This section has the following items:


Port Configuration


Port Statistics Overview

Port Statistics Detail

SFP Module Information

Port Mirror
4.4.1 Port Configuration
This Page displays current port configurations. Ports can also be configured here. The Port Configuration screen in
appears.
The Page includes the following fields:
Object

Port
Configures port connection settings
Lists Ethernet and RMON port statistics
Lists Ethernet and RMON port statistics
Display SFP information
Sets the source and target ports for mirroring

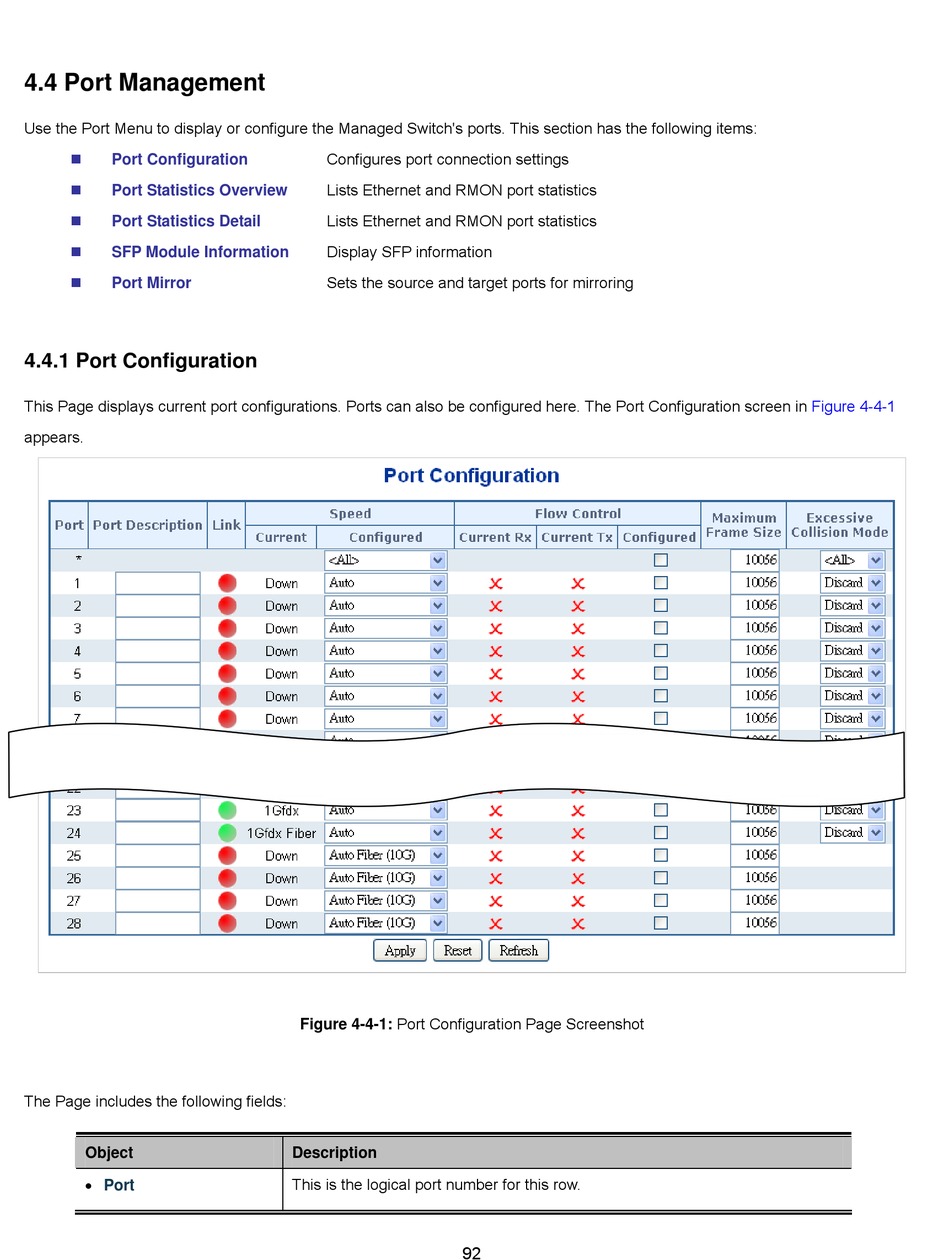

Figure 4-4-1: Port Configuration Page Screenshot
Description
This is the logical port number for this row.
