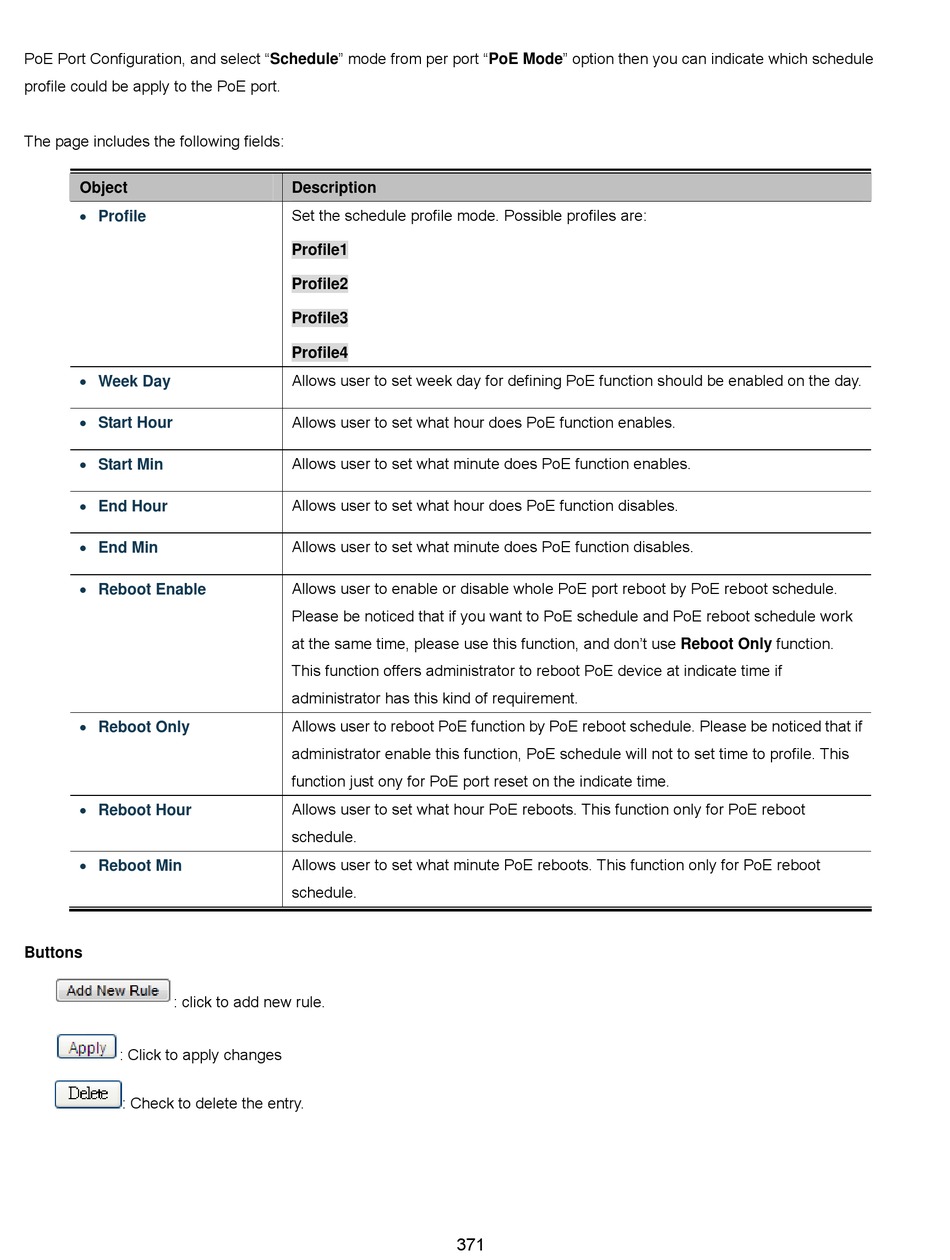

PoE Port Configuration, and select "Schedule" mode from per port "PoE Mode" option then you can indicate which schedule
profile could be apply to the PoE port.
The page includes the following fields:
Object
 Profile
 Week Day
 Start Hour
 Start Min
 End Hour
 End Min
 Reboot Enable
 Reboot Only
 Reboot Hour
 Reboot Min
Buttons
: click to add new rule.
: Click to apply changes
: Check to delete the entry.
Description
Set the schedule profile mode. Possible profiles are:
Profile1
Profile2
Profile3
Profile4
Allows user to set week day for defining PoE function should be enabled on the day.
Allows user to set what hour does PoE function enables.
Allows user to set what minute does PoE function enables.
Allows user to set what hour does PoE function disables.
Allows user to set what minute does PoE function disables.
Allows user to enable or disable whole PoE port reboot by PoE reboot schedule.
Please be noticed that if you want to PoE schedule and PoE reboot schedule work
at the same time, please use this function, and don't use Reboot Only function.
This function offers administrator to reboot PoE device at indicate time if
administrator has this kind of requirement.
Allows user to reboot PoE function by PoE reboot schedule. Please be noticed that if
administrator enable this function, PoE schedule will not to set time to profile. This
function just ony for PoE port reset on the indicate time.
Allows user to set what hour PoE reboots. This function only for PoE reboot
schedule.
Allows user to set what minute PoE reboots. This function only for PoE reboot
schedule.
