4.16.8 LLDP PoE Neighbours

This page provides a status overview for all LLDP PoE neighbors. The displayed table contains a row for each port on which an
LLDP PoE neighbor is detected. The columns hold the following information: The screen in Figure 4-16-7 appears.

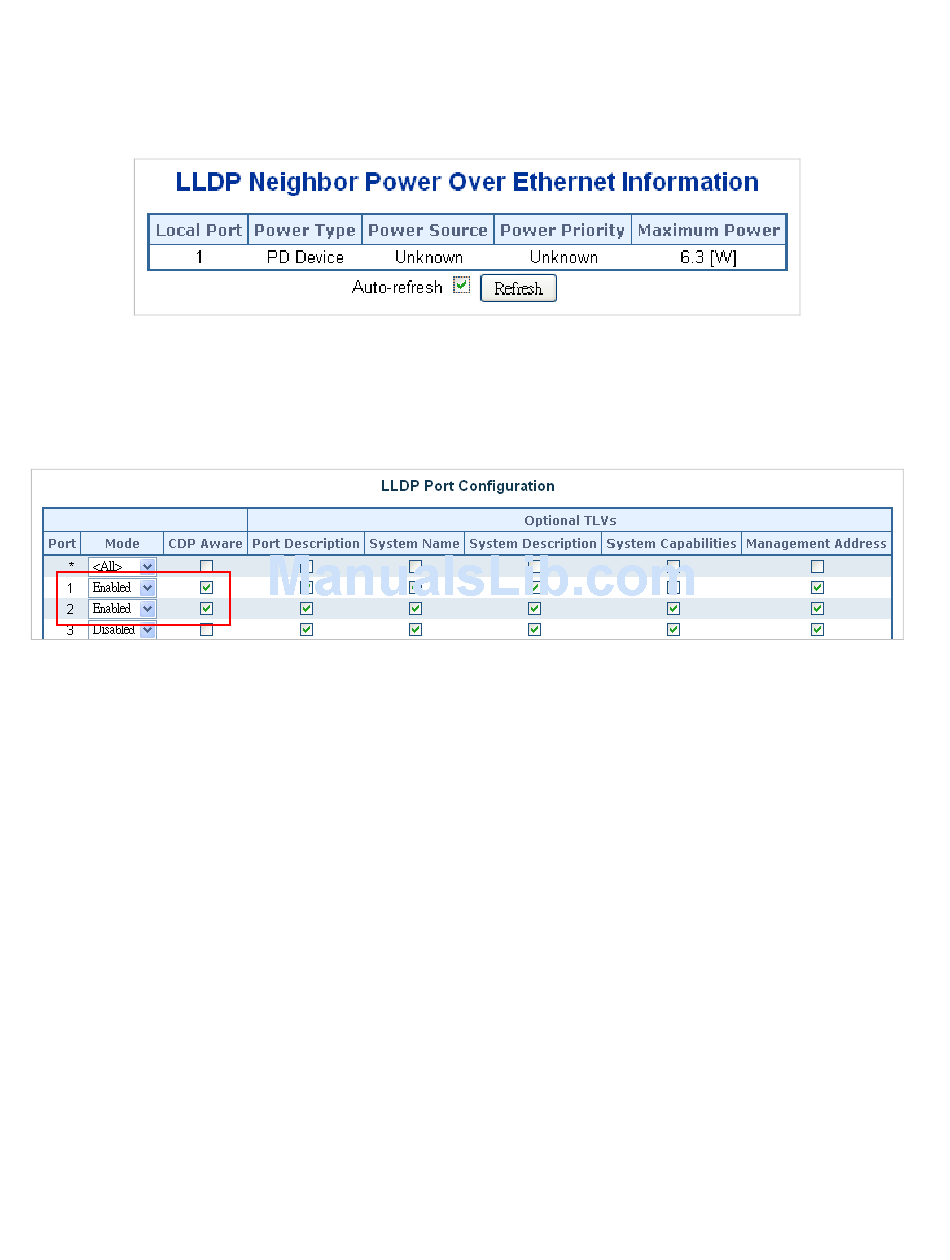

Figure 4-16-7: LLDP PoE Neighbour Screenshot
Please be noticed that administrator has to enable LLDP port from LLDP configuration, please refer to following example (The
screen in Figure 4-16-8 appears.) we enabled LLDP function from port1 ro port3, administrator has to plug a PD that supported
PoE LLDP function, and then administrator is going to see the PoE information of the PD form LLDP.
Figure 4-16-8: LLDP Configuration Screenshot

4.16.9 PoE Alive Check Configuration

The NS4702-24P-4S-4X PoE Switch can be configured to monitor connected PD's status in real-time via ping action. Once the
PD stops working and without response, the NS4702-24P-4S-4X PoE Switch is going to restart PoE port port power, and bring the
PD back to work. It will greatly enhance the reliability and reduces administrator management burden.
