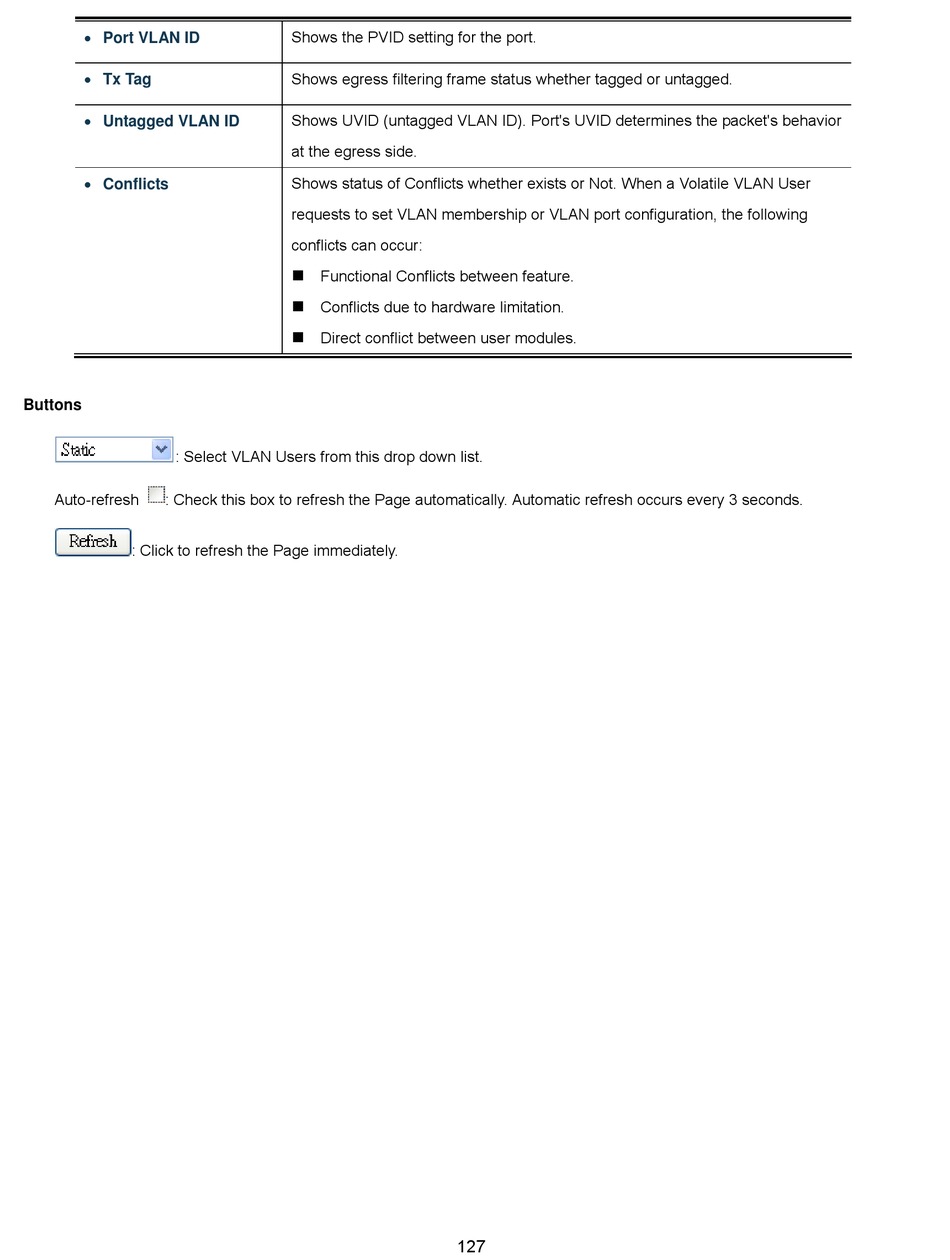

Interlogix NS4702-24P-4S-4X User Manual page 127

 Port VLAN ID
 Tx Tag
 Untagged VLAN ID
 Conflicts
Buttons
: Select VLAN Users from this drop down list.
Auto-refresh : Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
: Click to refresh the Page immediately.
Shows the PVID setting for the port.
Shows egress filtering frame status whether tagged or untagged.
Shows UVID (untagged VLAN ID). Port's UVID determines the packet's behavior
at the egress side.
Shows status of Conflicts whether exists or Not. When a Volatile VLAN User
requests to set VLAN membership or VLAN port configuration, the following
conflicts can occur:

Functional Conflicts between feature.

Conflicts due to hardware limitation.

Direct conflict between user modules.
