Buttons
: Click to refresh the Page immediately.
Auto-refresh : Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
: Updates the table, starting from the first entry in the Alarm Table, i.e. the entry with the lowest ID.
: Updates the table, starting with the entry after the last entry currently displayed.

4.18.3 RMON Event Configuration

Configure RMON Event table on this Page. The entry index key is ID; screen in
The Page includes the following fields:
Object
 Delete
 ID
 Desc
 Type
 Community

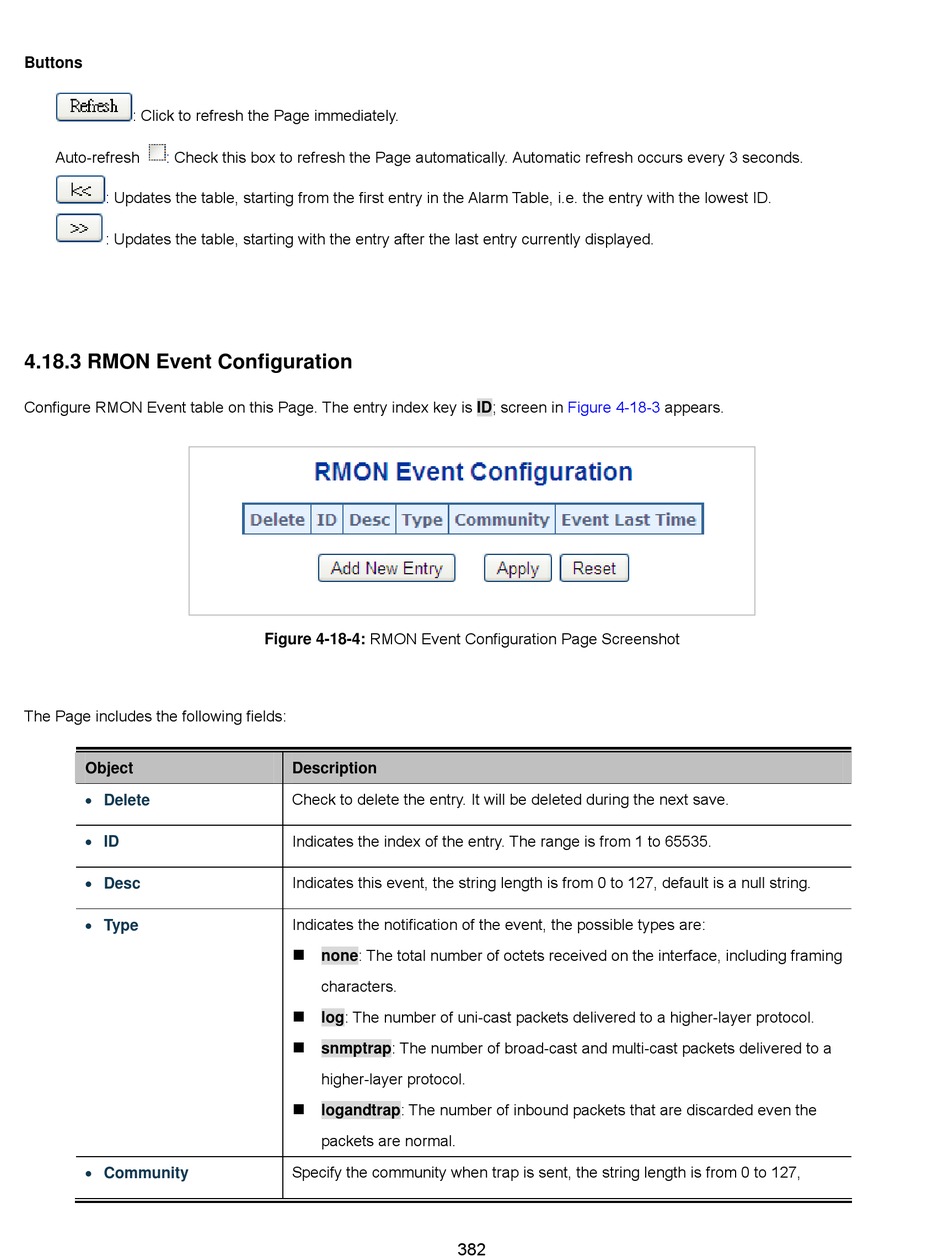

Figure 4-18-4: RMON Event Configuration Page Screenshot
Description
Check to delete the entry. It will be deleted during the next save.
Indicates the index of the entry. The range is from 1 to 65535.
Indicates this event, the string length is from 0 to 127, default is a null string.
Indicates the notification of the event, the possible types are:

none: The total number of octets received on the interface, including framing
characters.

log: The number of uni-cast packets delivered to a higher-layer protocol.

snmptrap: The number of broad-cast and multi-cast packets delivered to a
higher-layer protocol.

logandtrap: The number of inbound packets that are discarded even the
packets are normal.
Specify the community when trap is sent, the string length is from 0 to 127,
Figure 4-18-3
382
appears.
