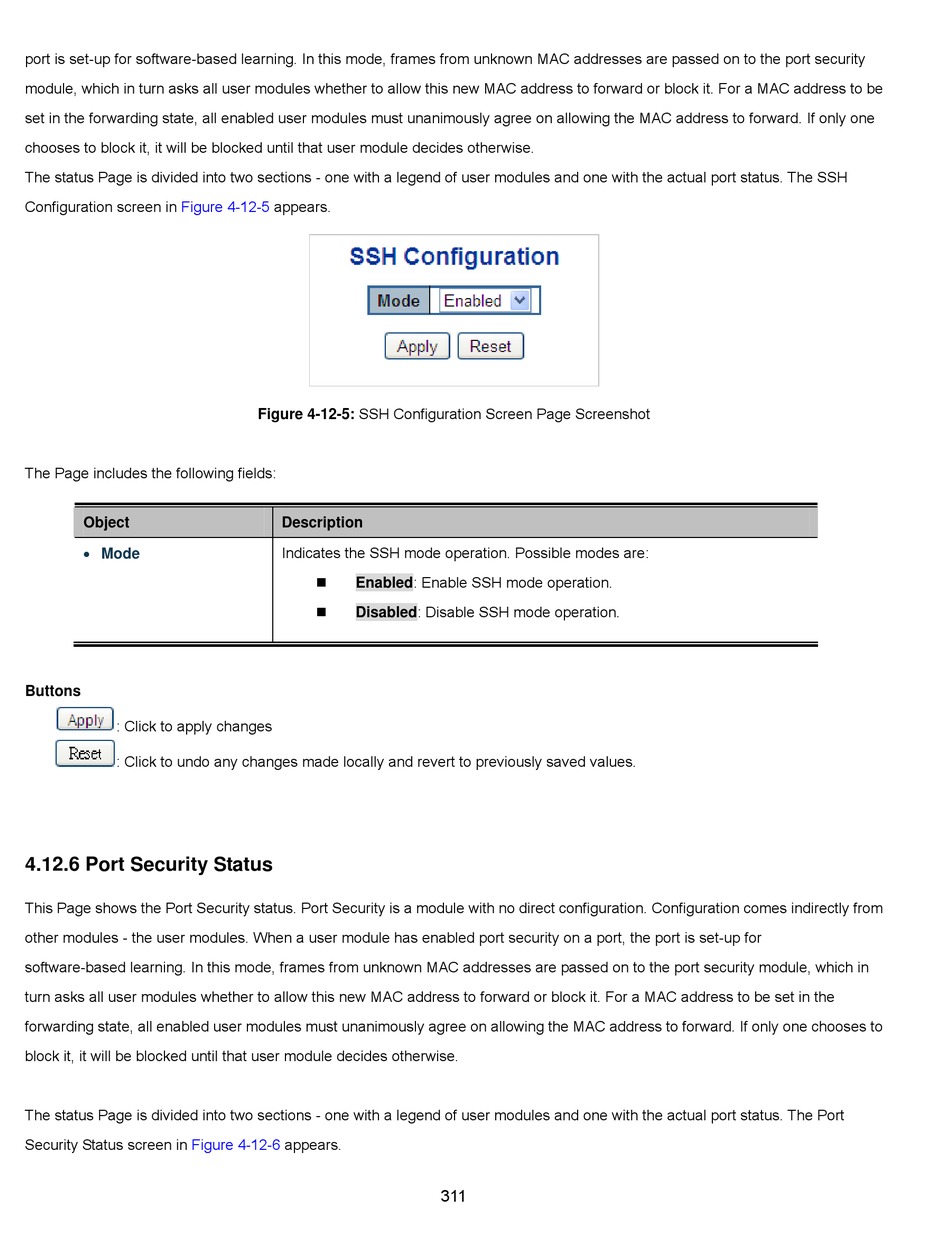

Port Security Status - Interlogix NS4702-24P-4S-4X User Manual

port is set-up for software-based learning. In this mode, frames from unknown MAC addresses are passed on to the port security
module, which in turn asks all user modules whether to allow this new MAC address to forward or block it. For a MAC address to be
set in the forwarding state, all enabled user modules must unanimously agree on allowing the MAC address to forward. If only one
chooses to block it, it will be blocked until that user module decides otherwise.
The status Page is divided into two sections - one with a legend of user modules and one with the actual port status. The SSH
Configuration screen in Figure 4-12-5
The Page includes the following fields:
Object
 Mode
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.

4.12.6 Port Security Status

This Page shows the Port Security status. Port Security is a module with no direct configuration. Configuration comes indirectly from
other modules - the user modules. When a user module has enabled port security on a port, the port is set-up for
software-based learning. In this mode, frames from unknown MAC addresses are passed on to the port security module, which in
turn asks all user modules whether to allow this new MAC address to forward or block it. For a MAC address to be set in the
forwarding state, all enabled user modules must unanimously agree on allowing the MAC address to forward. If only one chooses to
block it, it will be blocked until that user module decides otherwise.
The status Page is divided into two sections - one with a legend of user modules and one with the actual port status. The Port
Security Status screen in Figure 4-12-6
appears.
Figure 4-12-5: SSH Configuration Screen Page Screenshot
Description
Indicates the SSH mode operation. Possible modes are:
 Enabled: Enable SSH mode operation.
 Disabled: Disable SSH mode operation.
appears.
311
