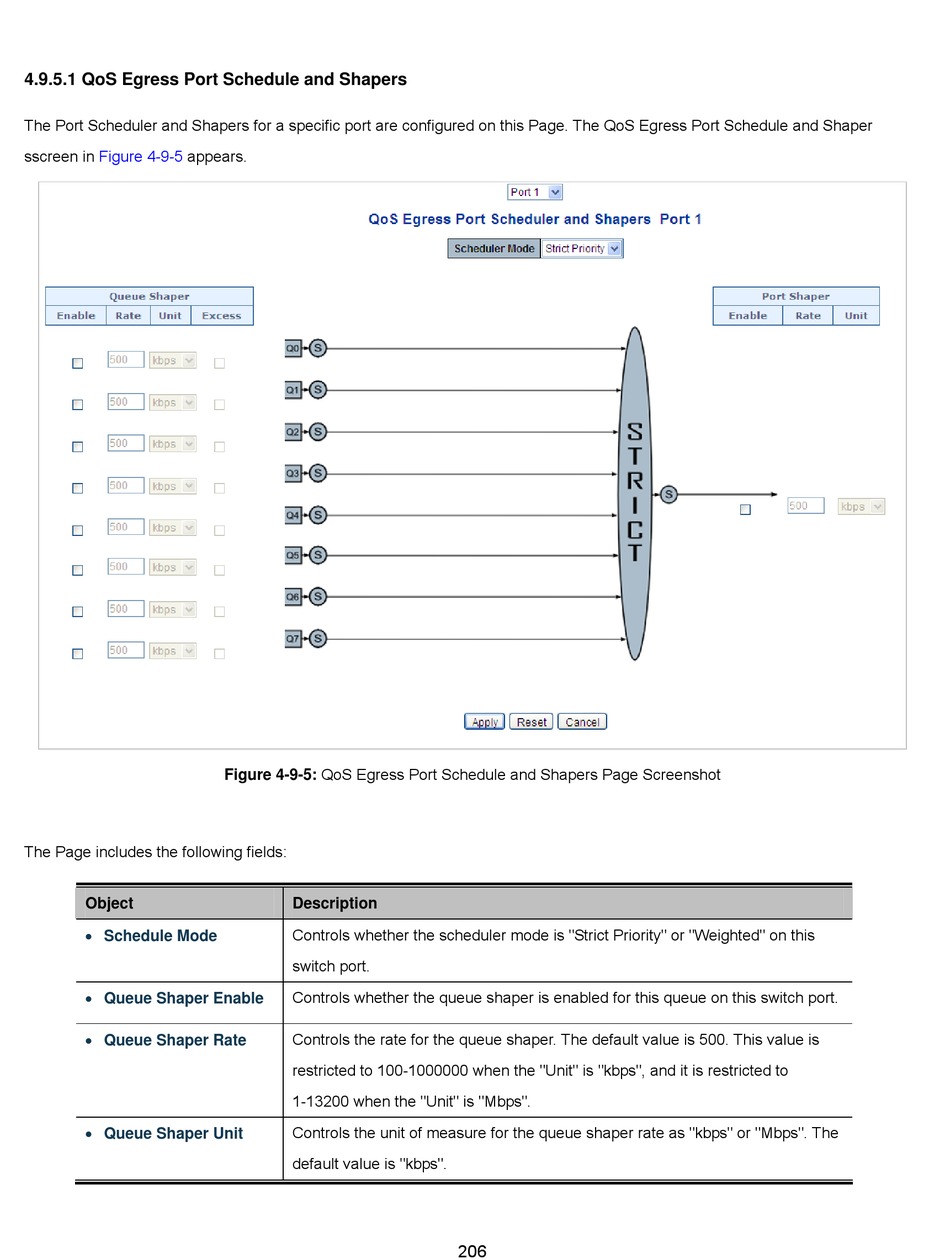

4.9.5.1 QoS Egress Port Schedule and Shapers

The Port Scheduler and Shapers for a specific port are configured on this Page. The QoS Egress Port Schedule and Shaper
sscreen in Figure 4-9-5 appears.
The Page includes the following fields:
Object
 Schedule Mode
 Queue Shaper Enable
 Queue Shaper Rate
 Queue Shaper Unit
Figure 4-9-5: QoS Egress Port Schedule and Shapers Page Screenshot
Description
Controls whether the scheduler mode is "Strict Priority" or "Weighted" on this
switch port.
Controls whether the queue shaper is enabled for this queue on this switch port.
Controls the rate for the queue shaper. The default value is 500. This value is
restricted to 100-1000000 when the "Unit" is "kbps", and it is restricted to
1-13200 when the "Unit" is "Mbps".
Controls the unit of measure for the queue shaper rate as "kbps" or "Mbps". The
default value is "kbps".
206
