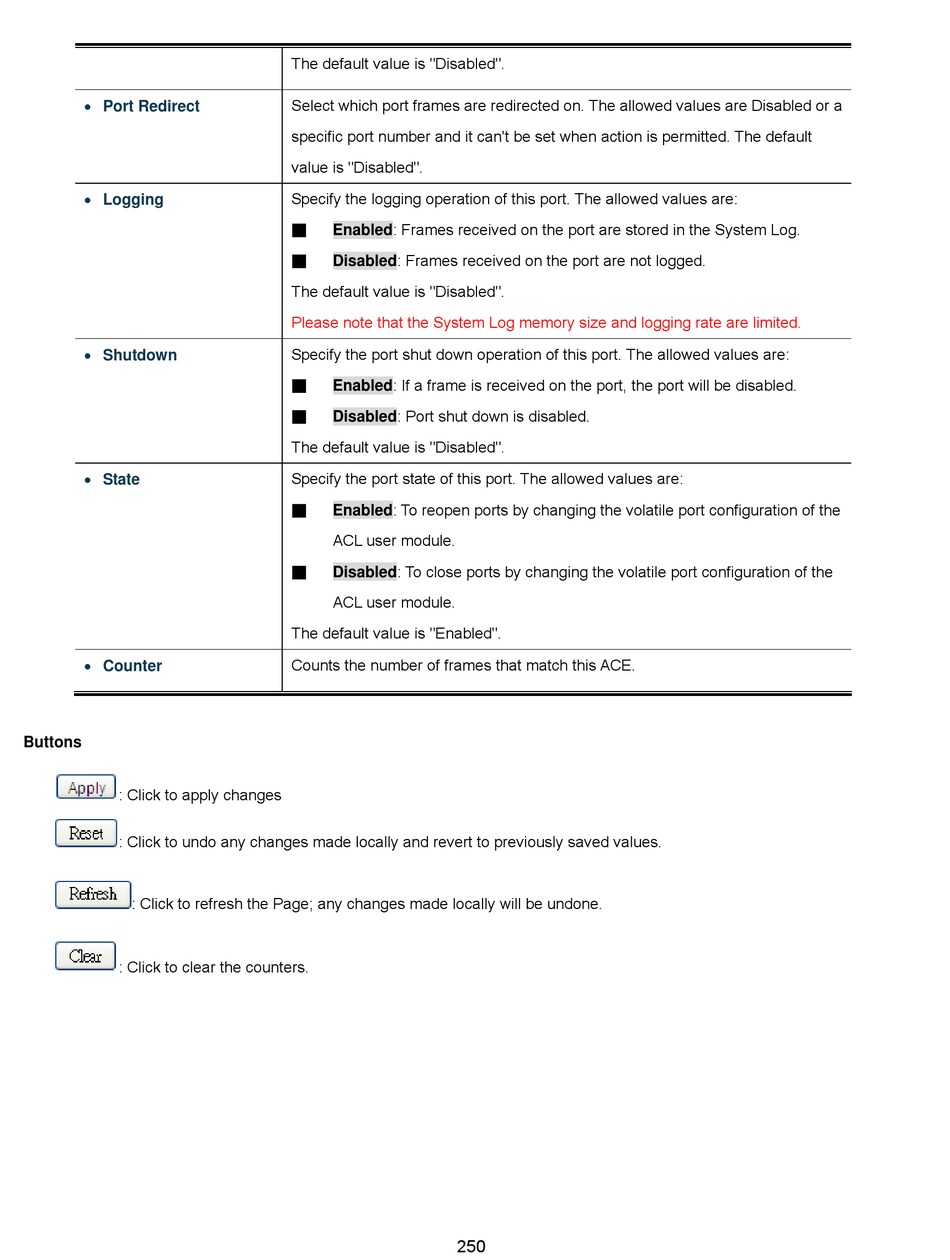

Interlogix NS4702-24P-4S-4X User Manual page 250

 Port Redirect
 Logging
 Shutdown
 State
 Counter
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
: Click to refresh the Page; any changes made locally will be undone.
: Click to clear the counters.
The default value is "Disabled".
Select which port frames are redirected on. The allowed values are Disabled or a
specific port number and it can't be set when action is permitted. The default
value is "Disabled".
Specify the logging operation of this port. The allowed values are:
Enabled: Frames received on the port are stored in the System Log.
■
Disabled: Frames received on the port are not logged.
■
The default value is "Disabled".
Please note that the System Log memory size and logging rate are limited.
Specify the port shut down operation of this port. The allowed values are:
Enabled: If a frame is received on the port, the port will be disabled.
■
Disabled: Port shut down is disabled.
■
The default value is "Disabled".
Specify the port state of this port. The allowed values are:
Enabled: To reopen ports by changing the volatile port configuration of the
■
ACL user module.
Disabled: To close ports by changing the volatile port configuration of the
■
ACL user module.
The default value is "Enabled".
Counts the number of frames that match this ACE.
250
