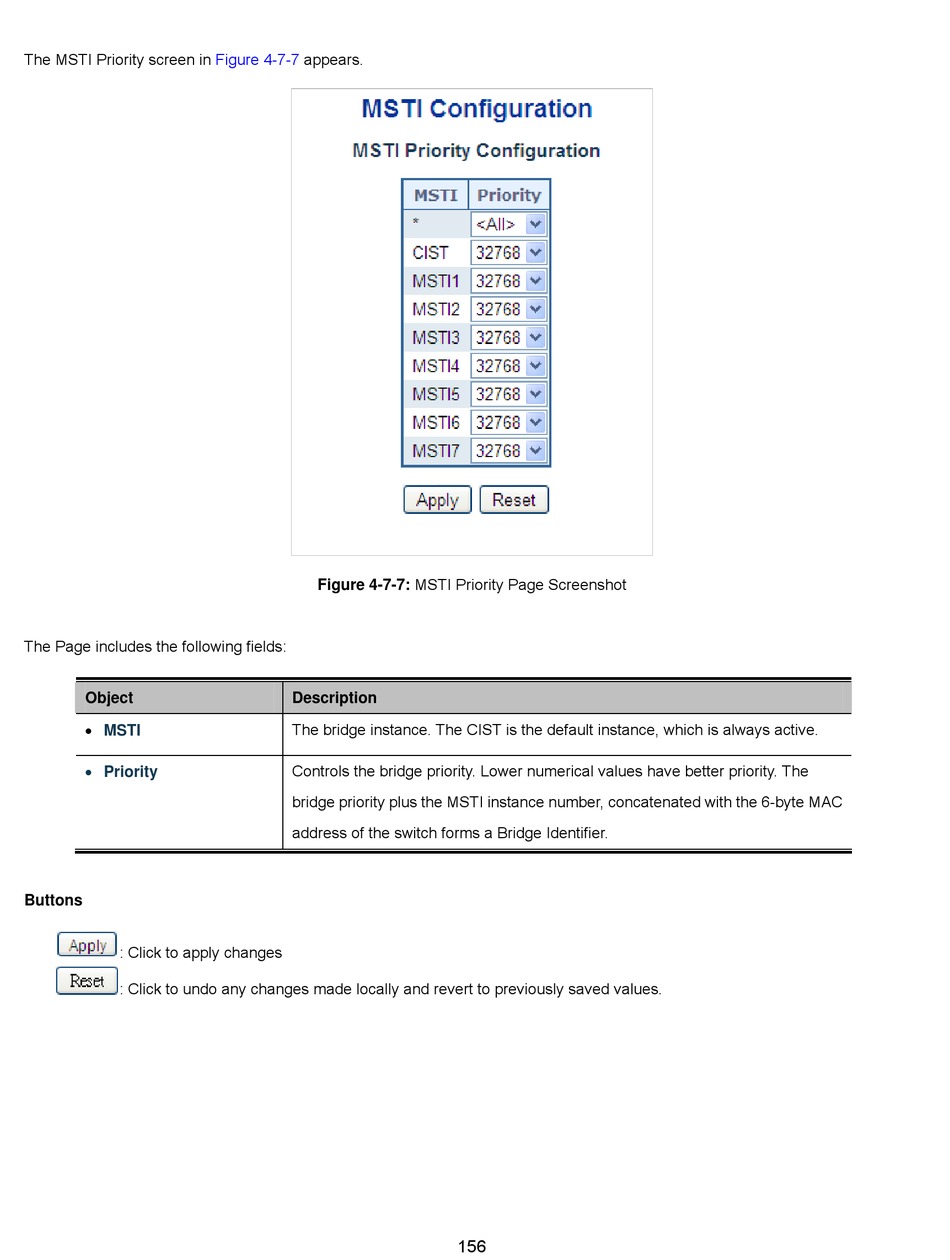

The MSTI Priority screen in
The Page includes the following fields:
Object

MSTI
 Priority
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
Figure 4-7-7 appears.
Figure 4-7-7: MSTI Priority Page Screenshot
Description
The bridge instance. The CIST is the default instance, which is always active.
Controls the bridge priority. Lower numerical values have better priority. The
bridge priority plus the MSTI instance number, concatenated with the 6-byte MAC
address of the switch forms a Bridge Identifier.
