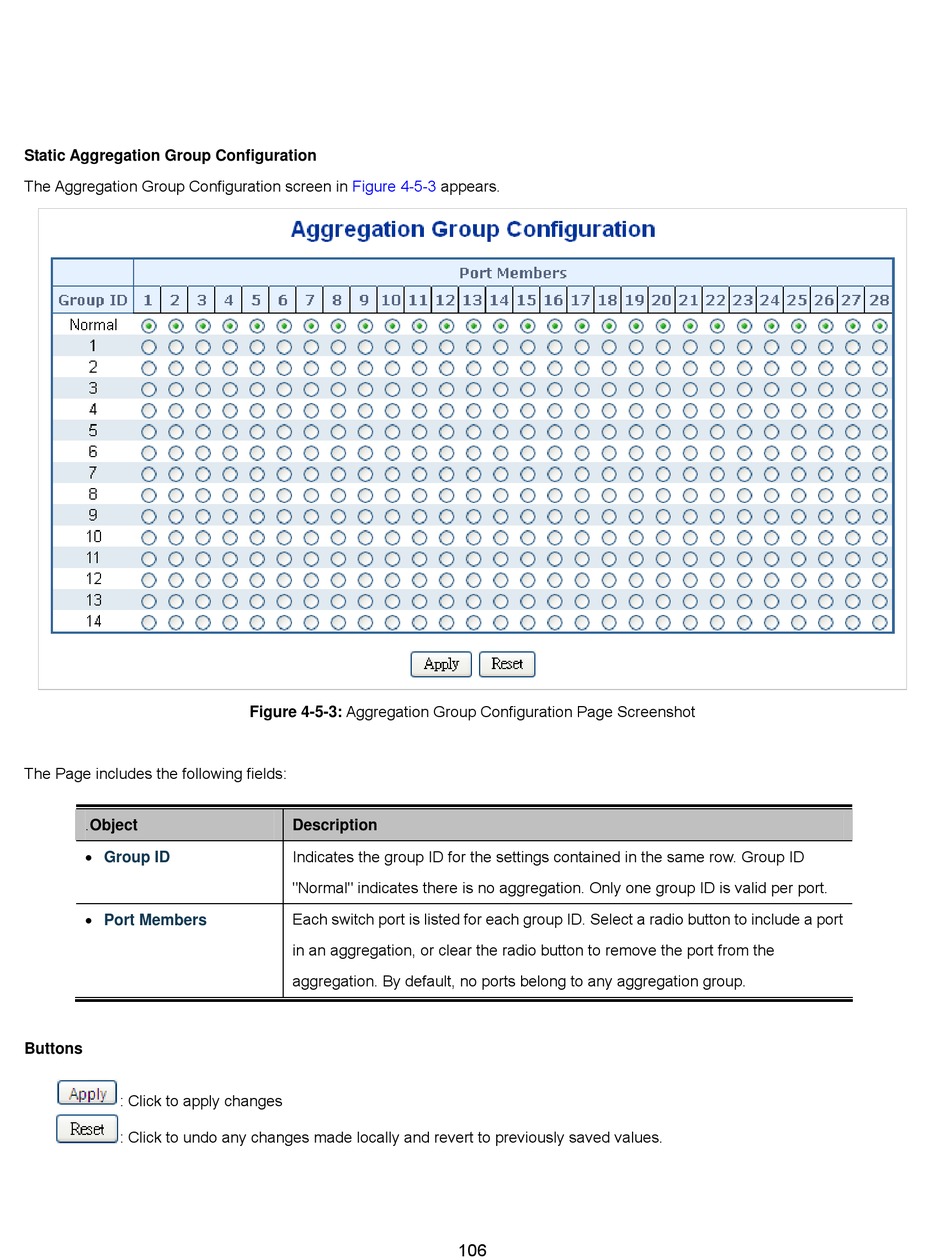

Static Aggregation Group Configuration
The Aggregation Group Configuration screen in
The Page includes the following fields:
.Object

Group ID

Port Members
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
Figure 4-5-3
Figure 4-5-3: Aggregation Group Configuration Page Screenshot
Description
Indicates the group ID for the settings contained in the same row. Group ID
"Normal" indicates there is no aggregation. Only one group ID is valid per port.
Each switch port is listed for each group ID. Select a radio button to include a port
in an aggregation, or clear the radio button to remove the port from the
aggregation. By default, no ports belong to any aggregation group.
appears.
