 Frag.
 Jabb.
 Coll.
 Utilization
Buttons
: Click to refresh the Page immediately.
Auto-refresh : Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
Updates the table, starting from the first entry in the History table, i.e., the entry with the lowest History
:
Index and Sample Index
: Updates the table, starting with the entry after the last entry currently displayed.

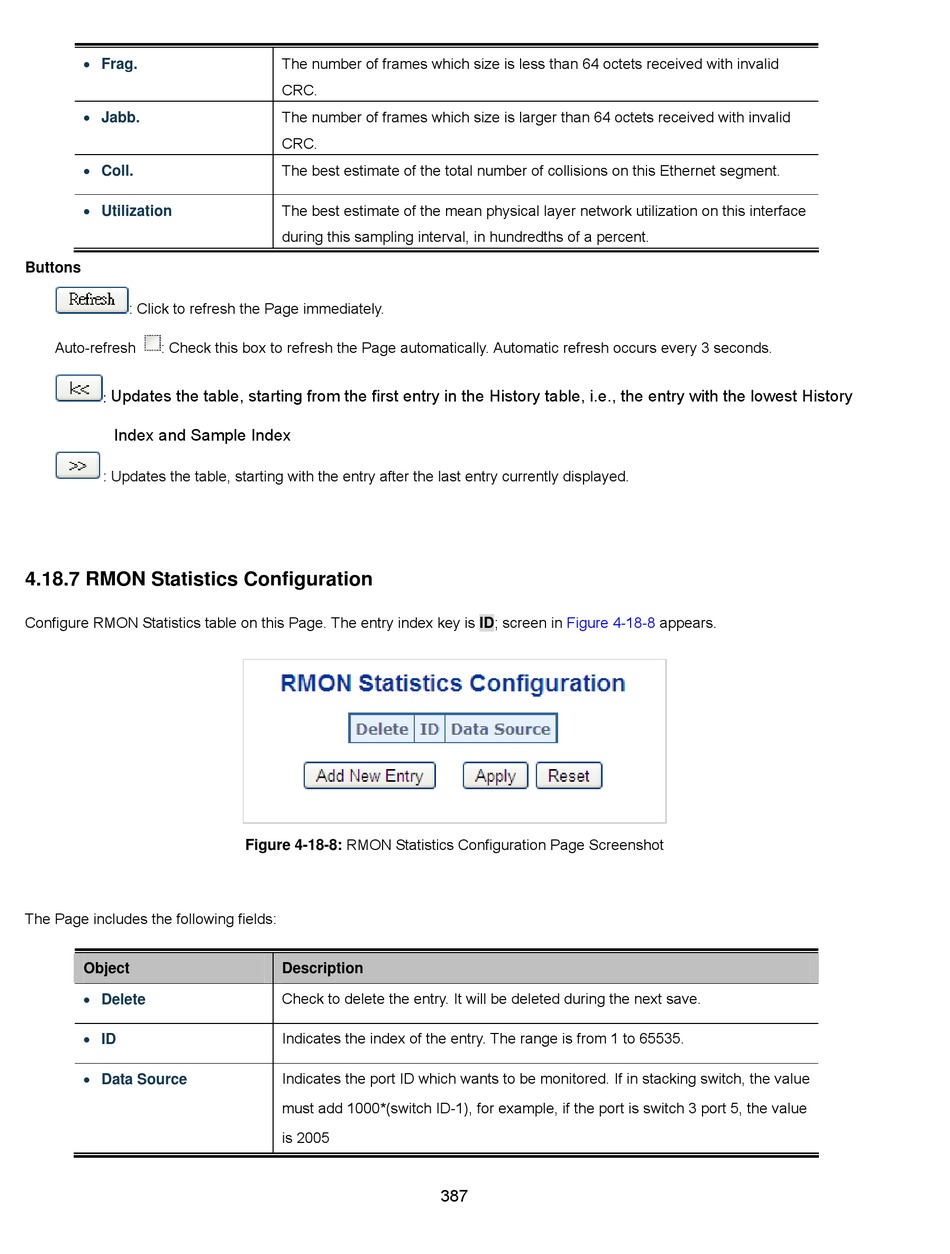

4.18.7 RMON Statistics Configuration

Configure RMON Statistics table on this Page. The entry index key is ID; screen in
The Page includes the following fields:
Object
 Delete
 ID
 Data Source
The number of frames which size is less than 64 octets received with invalid
CRC.
The number of frames which size is larger than 64 octets received with invalid
CRC.
The best estimate of the total number of collisions on this Ethernet segment.
The best estimate of the mean physical layer network utilization on this interface
during this sampling interval, in hundredths of a percent.
Figure 4-18-8: RMON Statistics Configuration Page Screenshot
Description
Check to delete the entry. It will be deleted during the next save.
Indicates the index of the entry. The range is from 1 to 65535.
Indicates the port ID which wants to be monitored. If in stacking switch, the value
must add 1000*(switch ID-1), for example, if the port is switch 3 port 5, the value
is 2005
Figure 4-18-8
387
appears.
