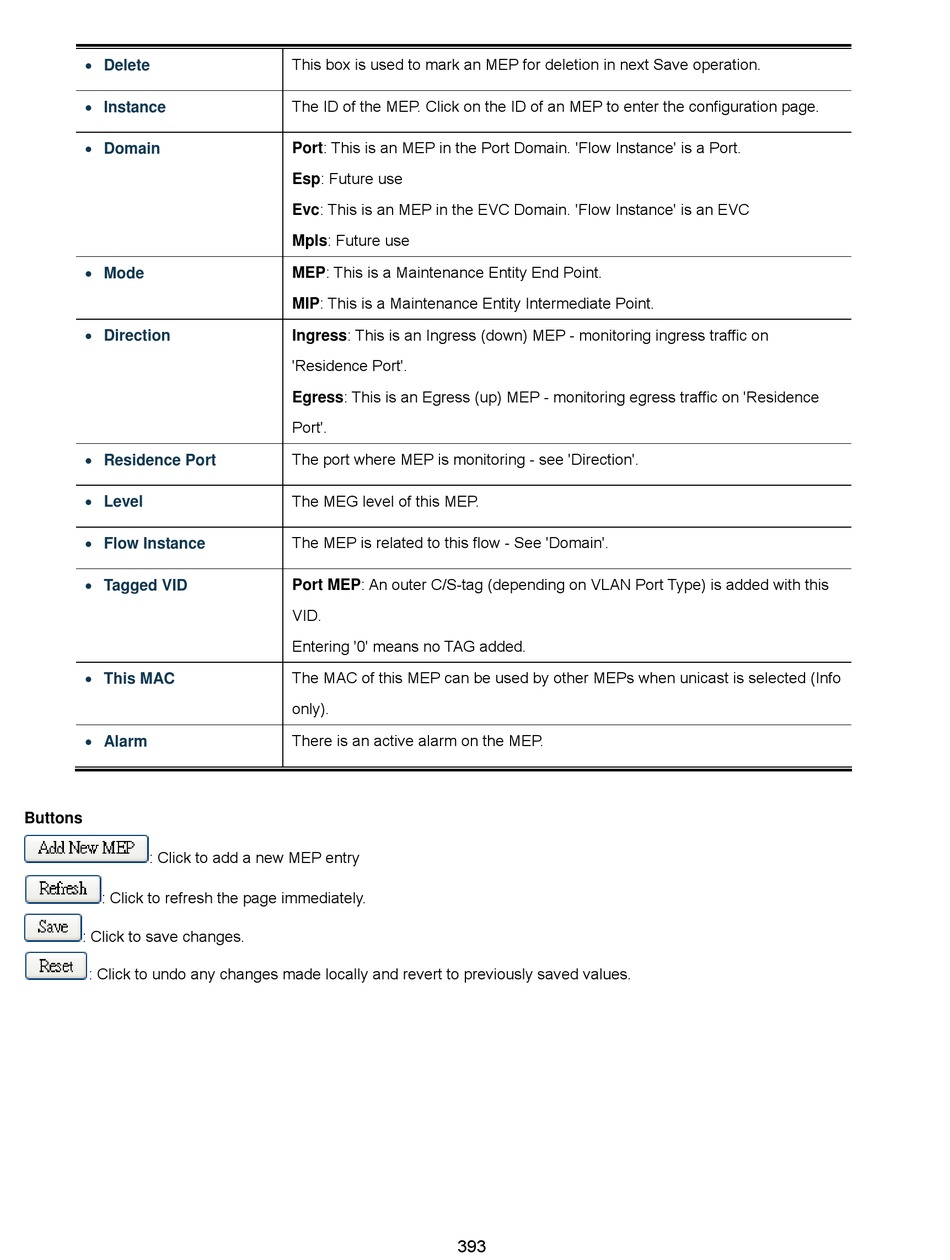

Interlogix NS4702-24P-4S-4X User Manual page 393

 Delete
 Instance
 Domain
 Mode
 Direction
 Residence Port
 Level
 Flow Instance
 Tagged VID
 This MAC
 Alarm
Buttons
: Click to add a new MEP entry
: Click to refresh the page immediately.
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
This box is used to mark an MEP for deletion in next Save operation.
The ID of the MEP. Click on the ID of an MEP to enter the configuration page.
Port: This is an MEP in the Port Domain. 'Flow Instance' is a Port.
Esp: Future use
Evc: This is an MEP in the EVC Domain. 'Flow Instance' is an EVC
Mpls: Future use
MEP: This is a Maintenance Entity End Point.
MIP: This is a Maintenance Entity Intermediate Point.
Ingress: This is an Ingress (down) MEP - monitoring ingress traffic on
'Residence Port'.
Egress: This is an Egress (up) MEP - monitoring egress traffic on 'Residence
Port'.
The port where MEP is monitoring - see 'Direction'.
The MEG level of this MEP.
The MEP is related to this flow - See 'Domain'.
Port MEP: An outer C/S-tag (depending on VLAN Port Type) is added with this
VID.
Entering '0' means no TAG added.
The MAC of this MEP can be used by other MEPs when unicast is selected (Info
only).
There is an active alarm on the MEP.
