: Click to refresh the Page immediately.
Auto-refresh : Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
: Updates the table starting from the first entry in the Alarm Table, i.e. the entry with the lowest ID.
: Updates the table, starting with the entry after the last entry currently displayed.
: Updates the table, starting with the entry after the last entry currently displayed.

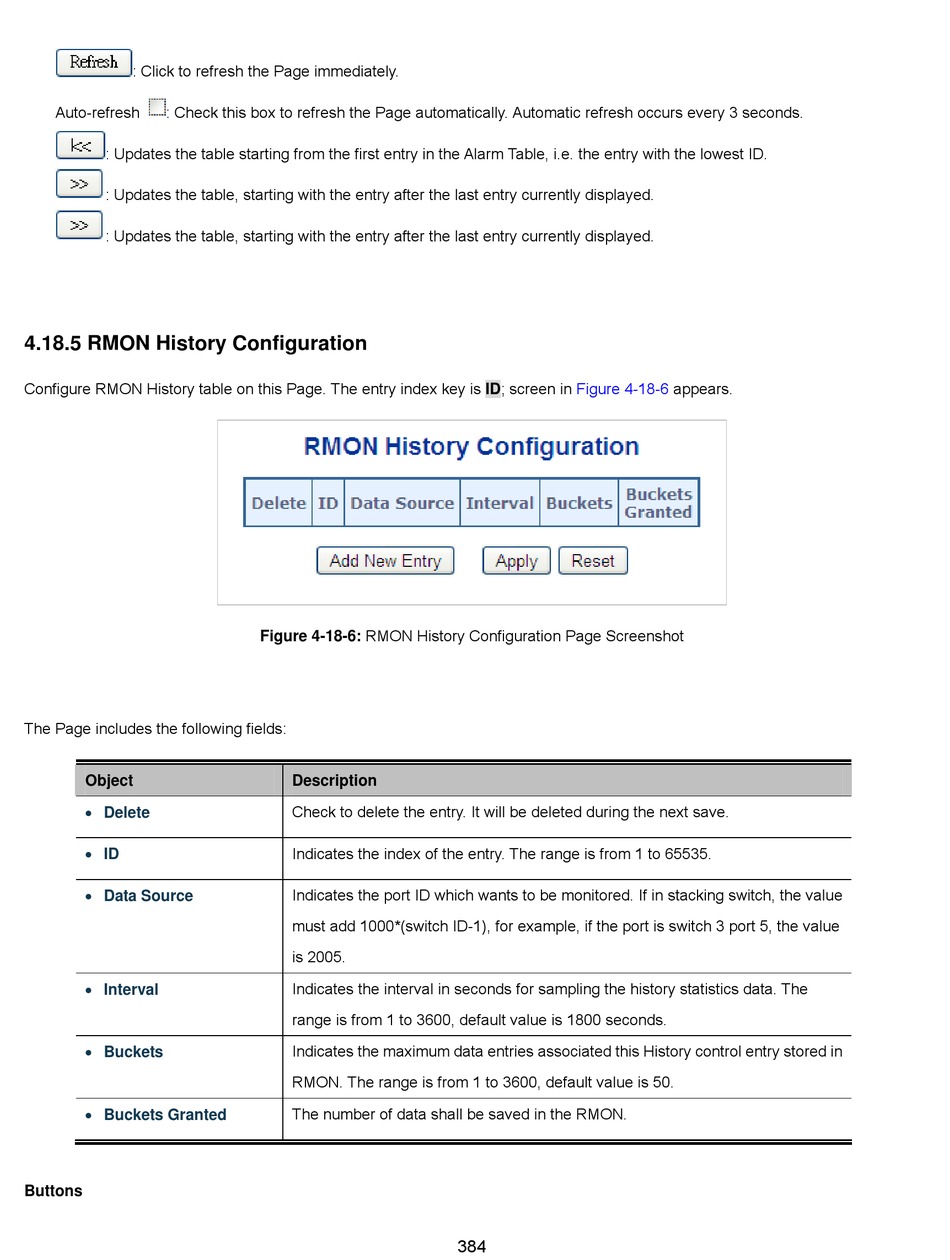

4.18.5 RMON History Configuration

Configure RMON History table on this Page. The entry index key is ID; screen in
The Page includes the following fields:
Object
 Delete
 ID
 Data Source
 Interval
 Buckets
 Buckets Granted
Buttons
Figure 4-18-6: RMON History Configuration Page Screenshot
Description
Check to delete the entry. It will be deleted during the next save.
Indicates the index of the entry. The range is from 1 to 65535.
Indicates the port ID which wants to be monitored. If in stacking switch, the value
must add 1000*(switch ID-1), for example, if the port is switch 3 port 5, the value
is 2005.
Indicates the interval in seconds for sampling the history statistics data. The
range is from 1 to 3600, default value is 1800 seconds.
Indicates the maximum data entries associated this History control entry stored in
RMON. The range is from 1 to 3600, default value is 50.
The number of data shall be saved in the RMON.
Figure 4-18-6
384
appears.
