 Port
 Port Role
 Immediate Leave
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.

4.8.17 MVR Status

This Page provides MVR status. The MVR Status screen in
The Page includes the following fields:
Object
The logical port for the settings.
Configure an MVR port of the designated MVR VLAN as one of the following
roles.

Inactive: The designated port does not participate MVR operations.

Source: Configure uplink ports that receive and send multicast data as
source ports. Subscribers cannot be directly connected to source ports.

Receiver: Configure a port as a receiver port if it is a subscriber port and
should only receive multicast data. It does not receive data unless it
becomes a member of the multicast group by issuing IGMP/MLD messages.
Be Caution: MVR source ports are not recommended to be overlapped with
management VLAN ports.
Select the port role by clicking the Role symbol to switch the setting.
I indicates Inactive; S indicates Source; R indicates Receiver
The default Role is Inactive.
Enable the fast leave on the port.
: Click to add new MVR VLAN. Specify the VID and configure the new entry. Click "Save"

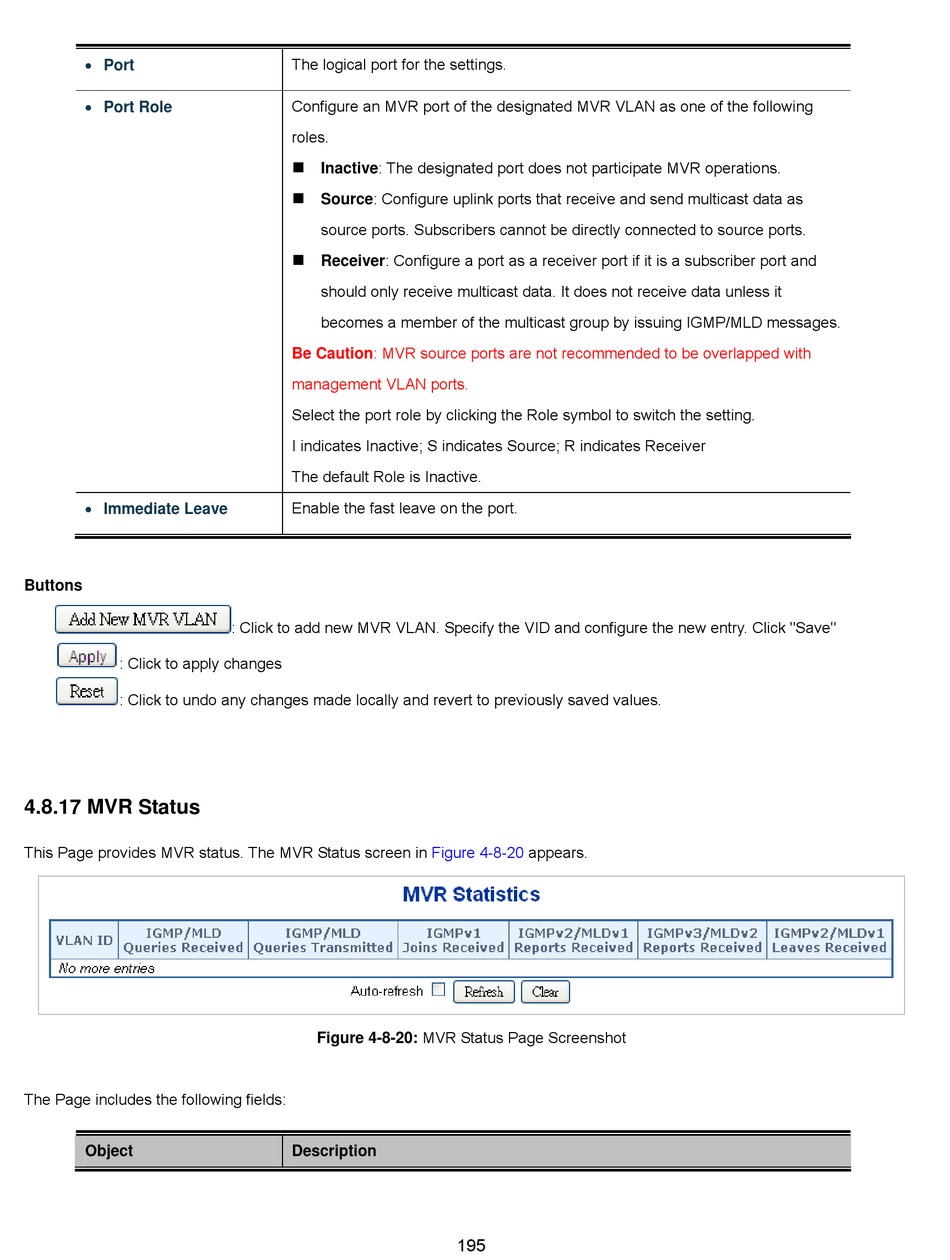

Figure 4-8-20: MVR Status Page Screenshot
Description
Figure 4-8-20 appears.
