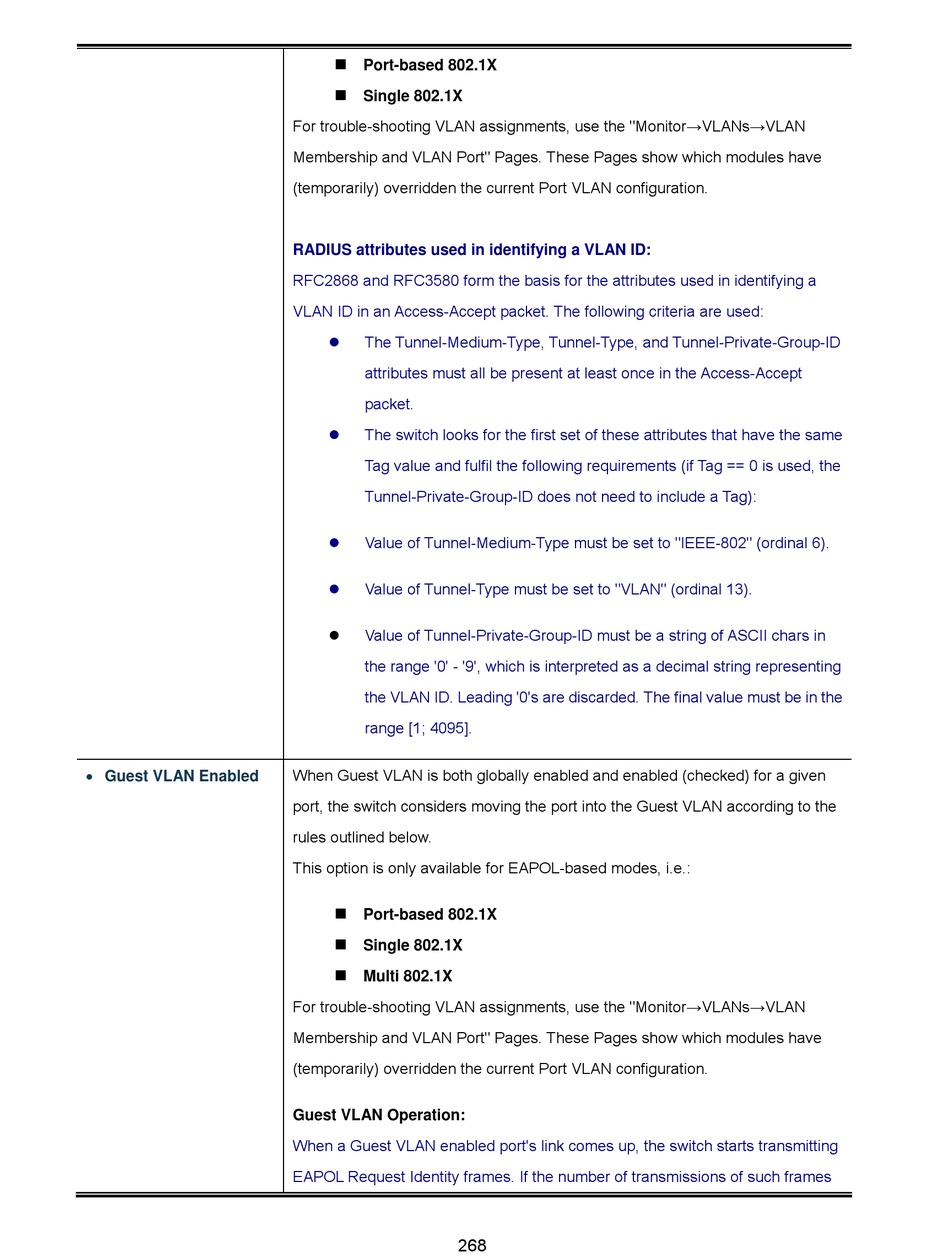

Interlogix NS4702-24P-4S-4X User Manual page 268

 Guest VLAN Enabled

Port-based 802.1X

Single 802.1X
For trouble-shooting VLAN assignments, use the "Monitor→VLANs→VLAN
Membership and VLAN Port" Pages. These Pages show which modules have
(temporarily) overridden the current Port VLAN configuration.
RADIUS attributes used in identifying a VLAN ID:
RFC2868 and RFC3580 form the basis for the attributes used in identifying a
VLAN ID in an Access-Accept packet. The following criteria are used:
 The Tunnel-Medium-Type, Tunnel-Type, and Tunnel-Private-Group-ID
attributes must all be present at least once in the Access-Accept
packet.
 The switch looks for the first set of these attributes that have the same
Tag value and fulfil the following requirements (if Tag == 0 is used, the
Tunnel-Private-Group-ID does not need to include a Tag):
Value of Tunnel-Medium-Type must be set to "IEEE-802" (ordinal 6).

 Value of Tunnel-Type must be set to "VLAN" (ordinal 13).
 Value of Tunnel-Private-Group-ID must be a string of ASCII chars in
the range '0' - '9', which is interpreted as a decimal string representing
the VLAN ID. Leading '0's are discarded. The final value must be in the
range [1; 4095].
When Guest VLAN is both globally enabled and enabled (checked) for a given
port, the switch considers moving the port into the Guest VLAN according to the
rules outlined below.
This option is only available for EAPOL-based modes, i.e.:

Port-based 802.1X

Single 802.1X

Multi 802.1X
For trouble-shooting VLAN assignments, use the "Monitor→VLANs→VLAN
Membership and VLAN Port" Pages. These Pages show which modules have
(temporarily) overridden the current Port VLAN configuration.
Guest VLAN Operation:
When a Guest VLAN enabled port's link comes up, the switch starts transmitting
EAPOL Request Identity frames. If the number of transmissions of such frames
