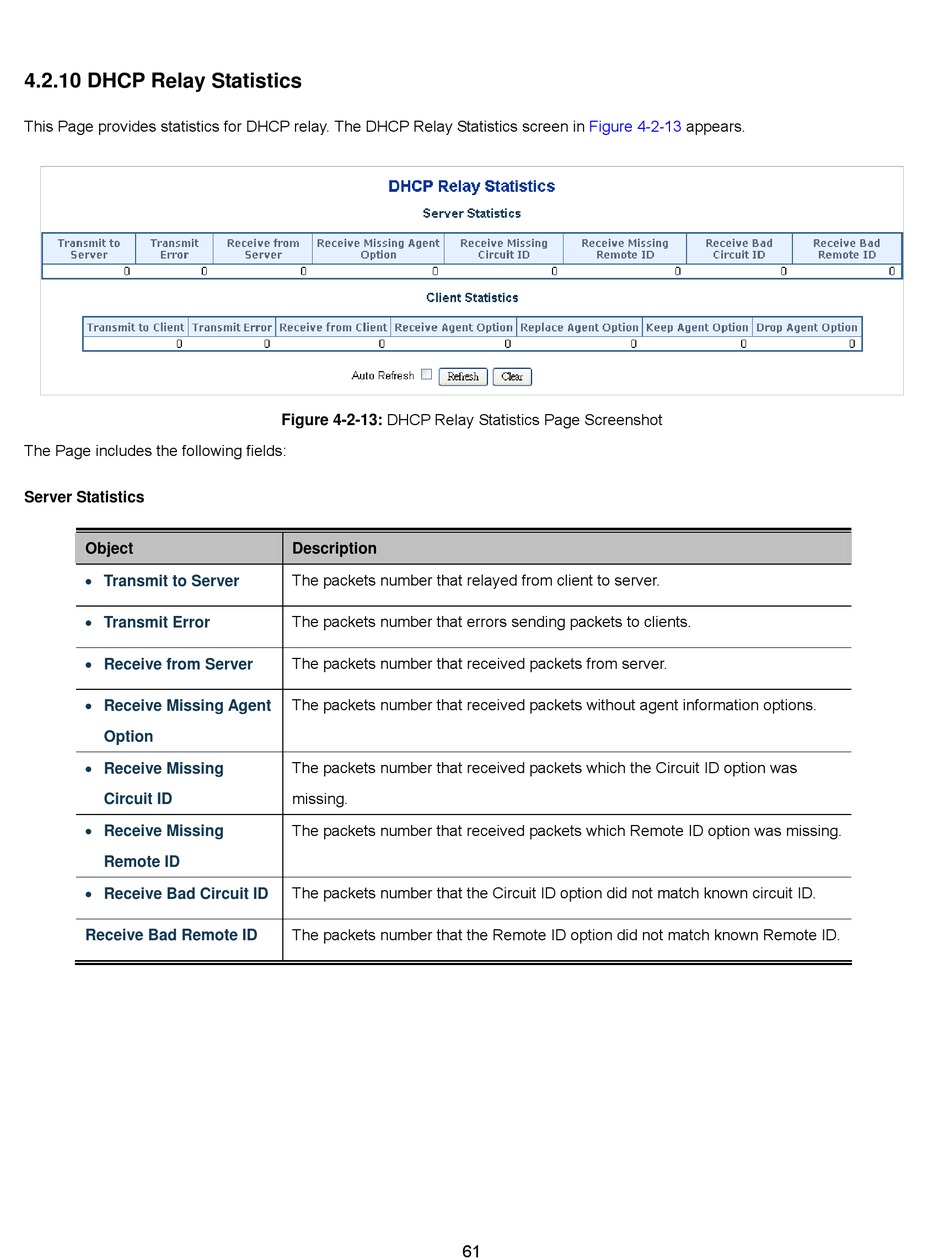

4.2.10 DHCP Relay Statistics

This Page provides statistics for DHCP relay. The DHCP Relay Statistics screen in
The Page includes the following fields:
Server Statistics
Object
 Transmit to Server
 Transmit Error
 Receive from Server
 Receive Missing Agent
Option
 Receive Missing
Circuit ID
 Receive Missing
Remote ID
 Receive Bad Circuit ID
Receive Bad Remote ID
Figure 4-2-13: DHCP Relay Statistics Page Screenshot
Description
The packets number that relayed from client to server.
The packets number that errors sending packets to clients.
The packets number that received packets from server.
The packets number that received packets without agent information options.
The packets number that received packets which the Circuit ID option was
missing.
The packets number that received packets which Remote ID option was missing.
The packets number that the Circuit ID option did not match known circuit ID.
The packets number that the Remote ID option did not match known Remote ID.
Figure 4-2-13
61
appears.
