 Enable
 Min. Threshold
 Max. DP 1
 Max. DP2
 Max. DP3
RED Drop Probability Function

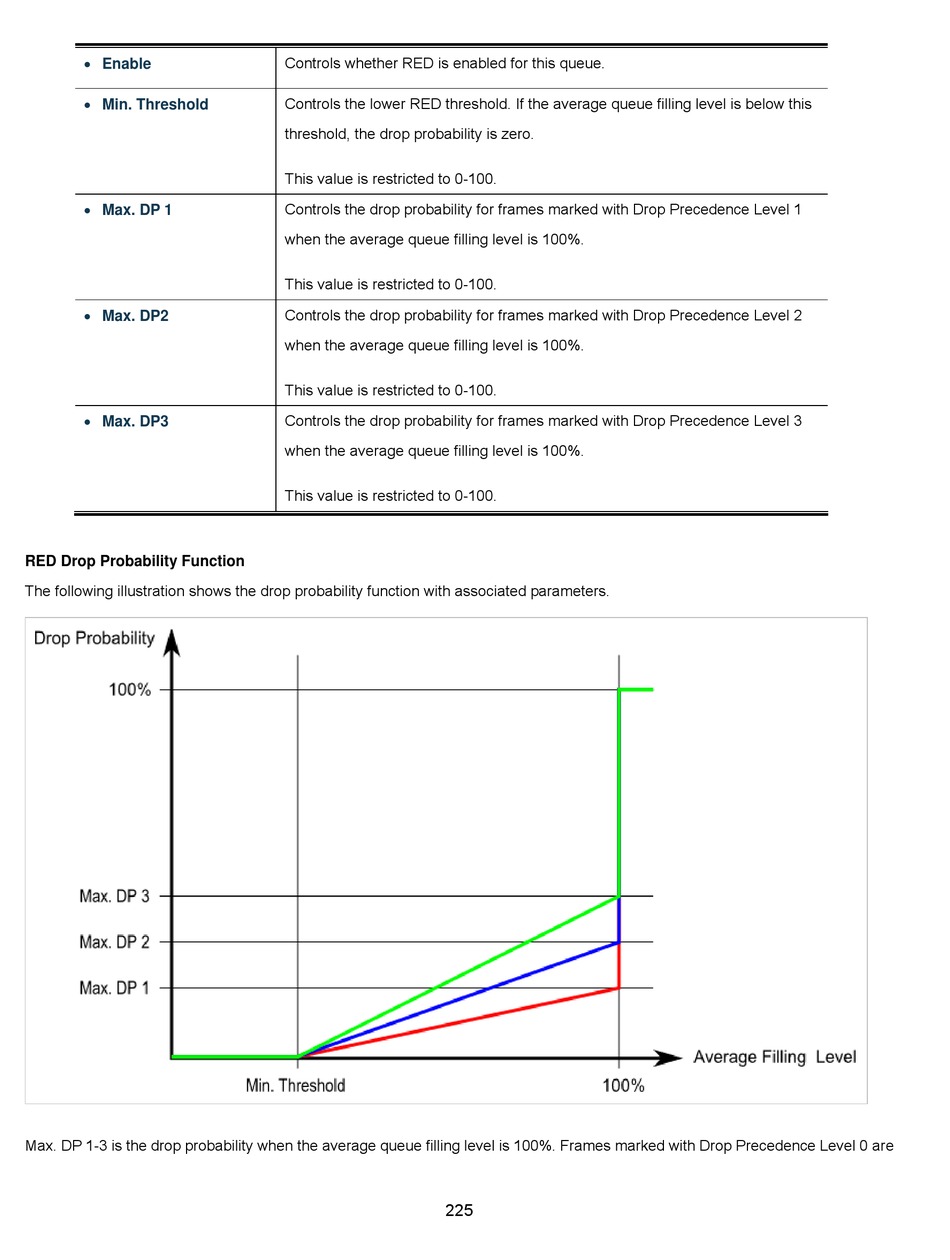

The following illustration shows the drop probability function with associated parameters.
Max. DP 1-3 is the drop probability when the average queue filling level is 100%. Frames marked with Drop Precedence Level 0 are
Controls whether RED is enabled for this queue.
Controls the lower RED threshold. If the average queue filling level is below this
threshold, the drop probability is zero.
This value is restricted to 0-100.
Controls the drop probability for frames marked with Drop Precedence Level 1
when the average queue filling level is 100%.
This value is restricted to 0-100.
Controls the drop probability for frames marked with Drop Precedence Level 2
when the average queue filling level is 100%.
This value is restricted to 0-100.
Controls the drop probability for frames marked with Drop Precedence Level 3
when the average queue filling level is 100%.
This value is restricted to 0-100.
