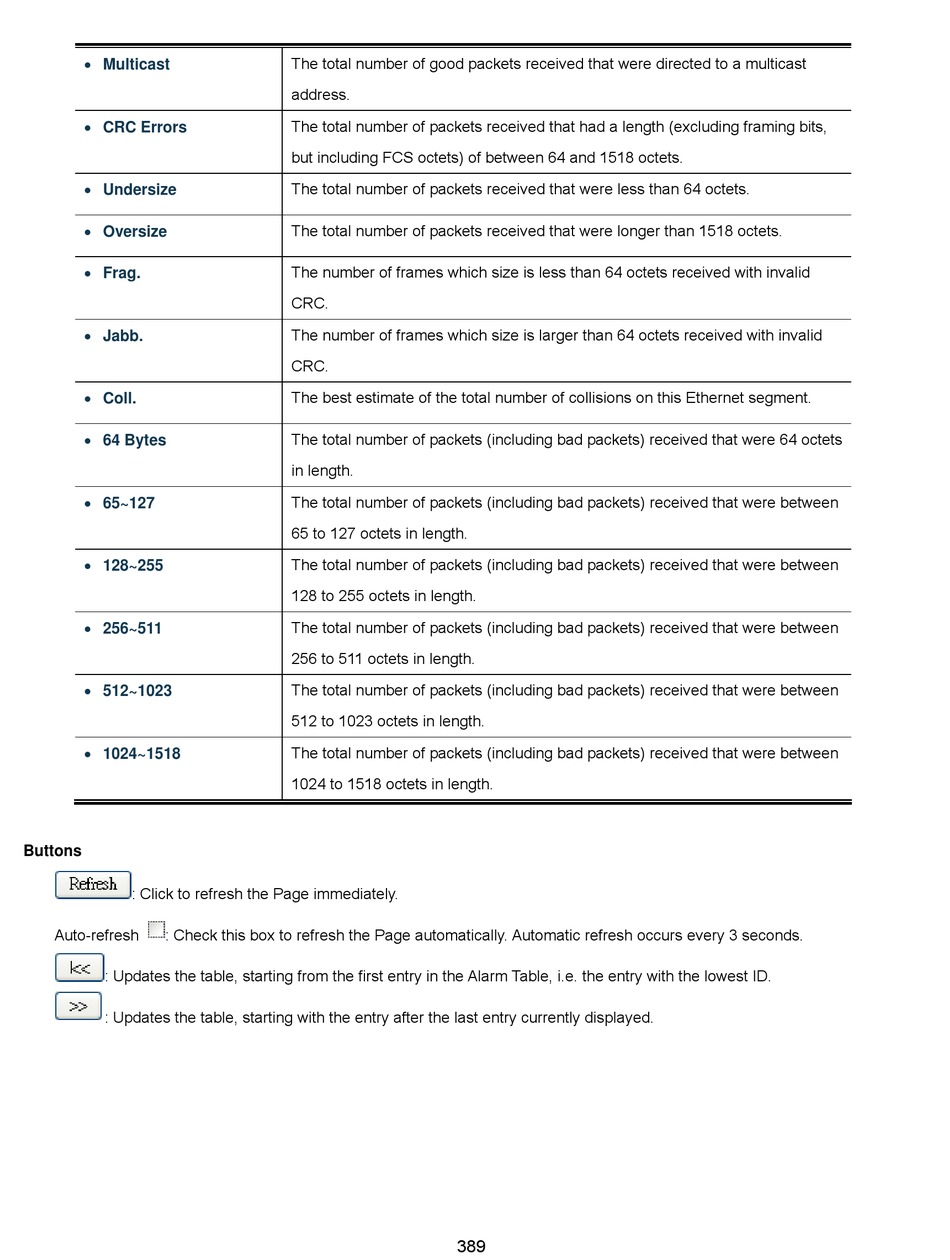

Interlogix NS4702-24P-4S-4X User Manual page 389

 Multicast
 CRC Errors
 Undersize
 Oversize
 Frag.
 Jabb.
 Coll.
 64 Bytes
 65~127
 128~255
 256~511
 512~1023
 1024~1518
Buttons
: Click to refresh the Page immediately.
Auto-refresh : Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
: Updates the table, starting from the first entry in the Alarm Table, i.e. the entry with the lowest ID.
: Updates the table, starting with the entry after the last entry currently displayed.
The total number of good packets received that were directed to a multicast
address.
The total number of packets received that had a length (excluding framing bits,
but including FCS octets) of between 64 and 1518 octets.
The total number of packets received that were less than 64 octets.
The total number of packets received that were longer than 1518 octets.
The number of frames which size is less than 64 octets received with invalid
CRC.
The number of frames which size is larger than 64 octets received with invalid
CRC.
The best estimate of the total number of collisions on this Ethernet segment.
The total number of packets (including bad packets) received that were 64 octets
in length.
The total number of packets (including bad packets) received that were between
65 to 127 octets in length.
The total number of packets (including bad packets) received that were between
128 to 255 octets in length.
The total number of packets (including bad packets) received that were between
256 to 511 octets in length.
The total number of packets (including bad packets) received that were between
512 to 1023 octets in length.
The total number of packets (including bad packets) received that were between
1024 to 1518 octets in length.
389
