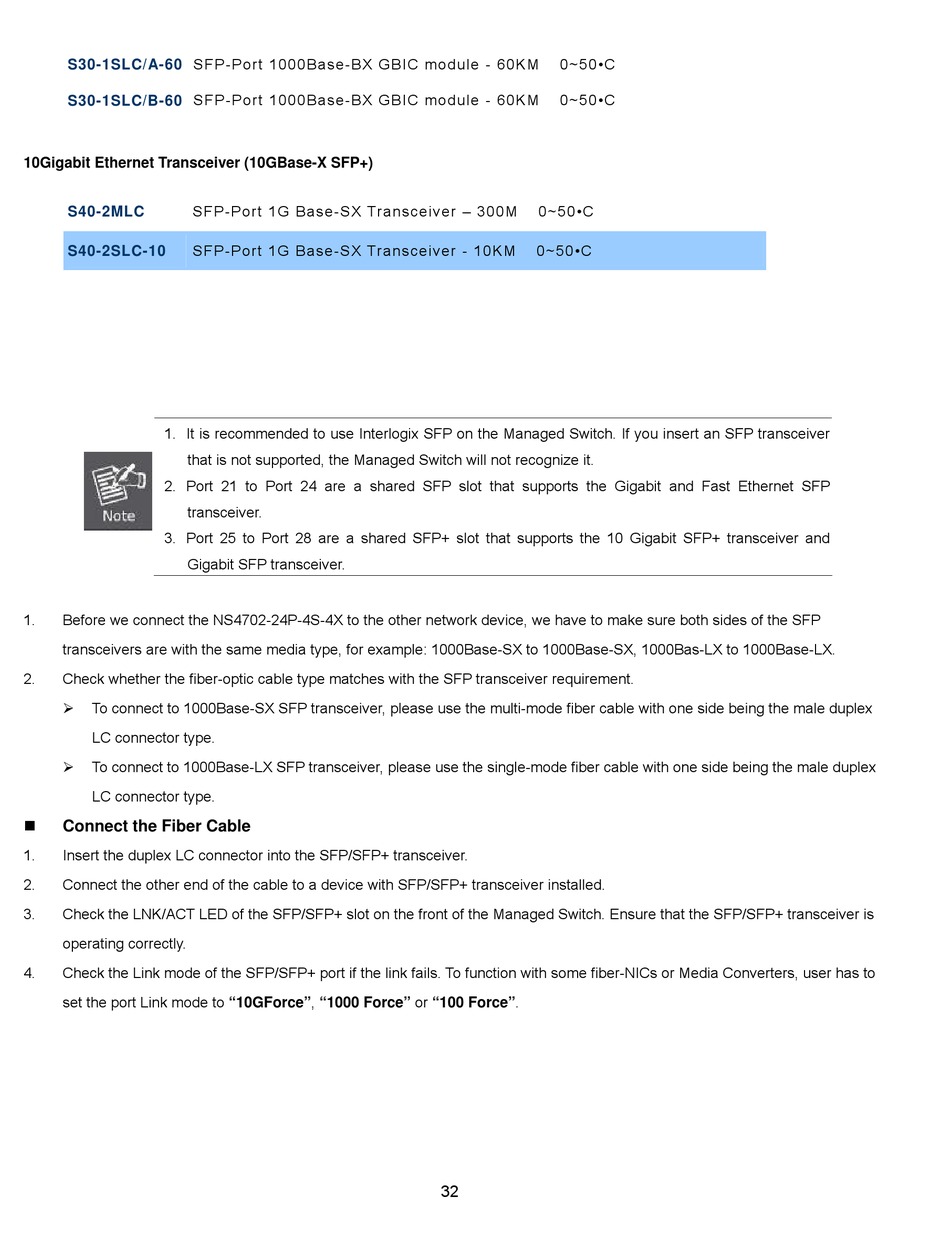

Interlogix NS4702-24P-4S-4X User Manual page 32

SFP-Port 1000Base-BX GBIC module - 60KM
S30-1SLC/A-60
SFP-Port 1000Base-BX GBIC module - 60KM
S30-1SLC/B-60
10Gigabit Ethernet Transceiver (10GBase-X SFP+)
SFP-Port 1G Base-SX Transceiver – 300M
S40-2MLC
SFP-Port 1G Base-SX Transceiver - 10KM
S40-2SLC-10
1. It is recommended to use Interlogix SFP on the Managed Switch. If you insert an SFP transceiver
that is not supported, the Managed Switch will not recognize it.
2. Port 21 to Port 24 are a shared SFP slot that supports the Gigabit and Fast Ethernet SFP
transceiver.
3. Port 25 to Port 28 are a shared SFP+ slot that supports the 10 Gigabit SFP+ transceiver and
Gigabit SFP transceiver.
1. Before we connect the NS4702-24P-4S-4X to the other network device, we have to make sure both sides of the SFP
transceivers are with the same media type, for example: 1000Base-SX to 1000Base-SX, 1000Bas-LX to 1000Base-LX.
2. Check whether the fiber-optic cable type matches with the SFP transceiver requirement.
 To connect to 1000Base-SX SFP transceiver, please use the multi-mode fiber cable with one side being the male duplex
LC connector type.
 To connect to 1000Base-LX SFP transceiver, please use the single-mode fiber cable with one side being the male duplex
LC connector type.

Connect the Fiber Cable
1. Insert the duplex LC connector into the SFP/SFP+ transceiver.
2. Connect the other end of the cable to a device with SFP/SFP+ transceiver installed.
3. Check the LNK/ACT LED of the SFP/SFP+ slot on the front of the Managed Switch. Ensure that the SFP/SFP+ transceiver is
operating correctly.
4. Check the Link mode of the SFP/SFP+ port if the link fails. To function with some fiber-NICs or Media Converters, user has to
set the port Link mode to "10GForce", "1000 Force" or "100 Force".
0~50•C
0~50•C
0~50•C
0~50•C
