4.6.10.2 VLAN Trunking between two 802.1Q aware switches
The most cases are used for "Uplink" to other switches. VLANs are separated at different switches, but they need to access with
other switches within the same VLAN group. The screen in
Figure 4-6-11
appears.

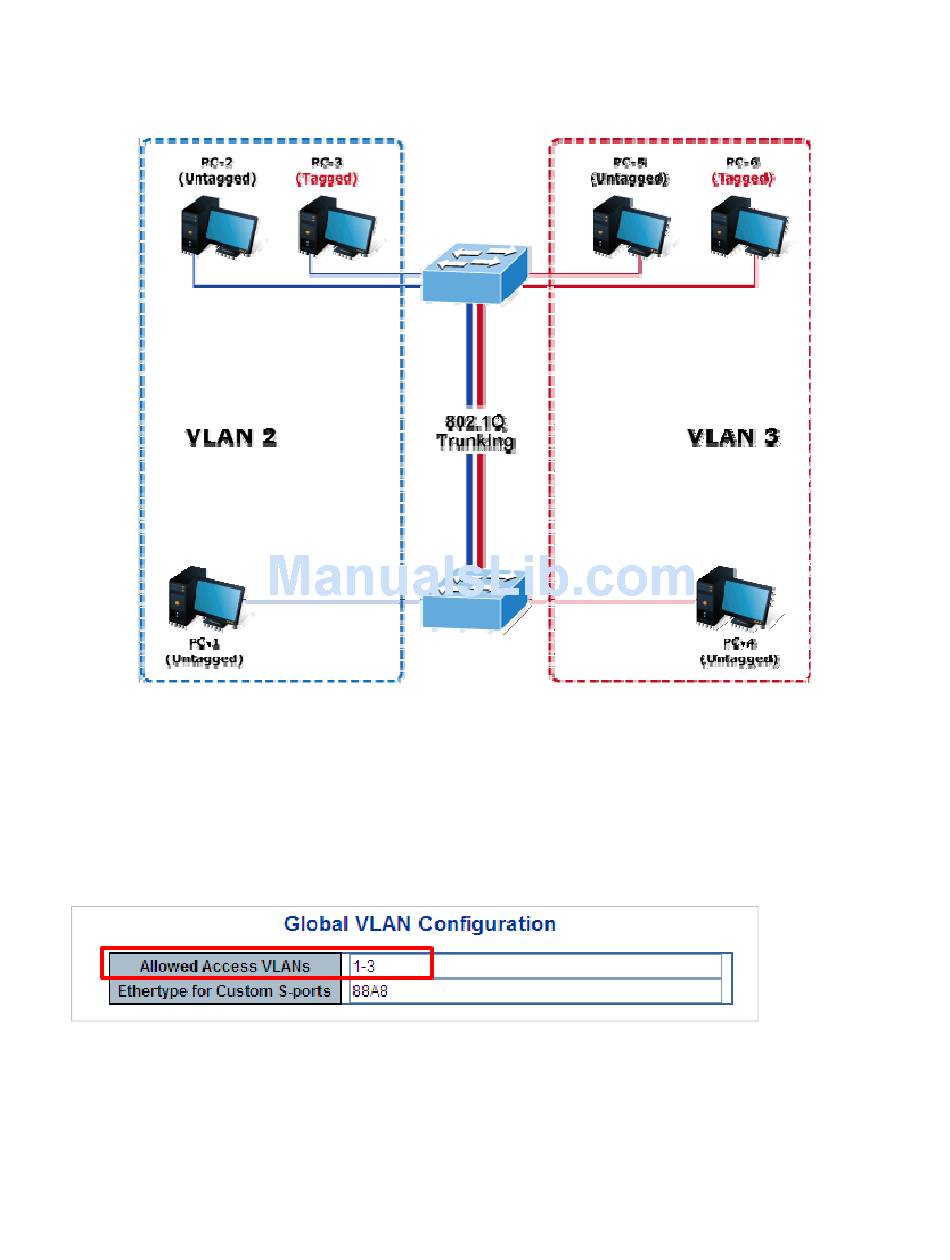

Figure 4-6-11: VLAN Trunking Diagram
Setup steps
1.
Add VLAN Group
Add two VLANs – VLAN 2 and VLAN 3
Type 1-3 in Allowed Access VLANs column, the 1-3 is including VLAN1 and 2 and 3.
Figure 4-6-12: Add VLAN 2 and VLAN 3
