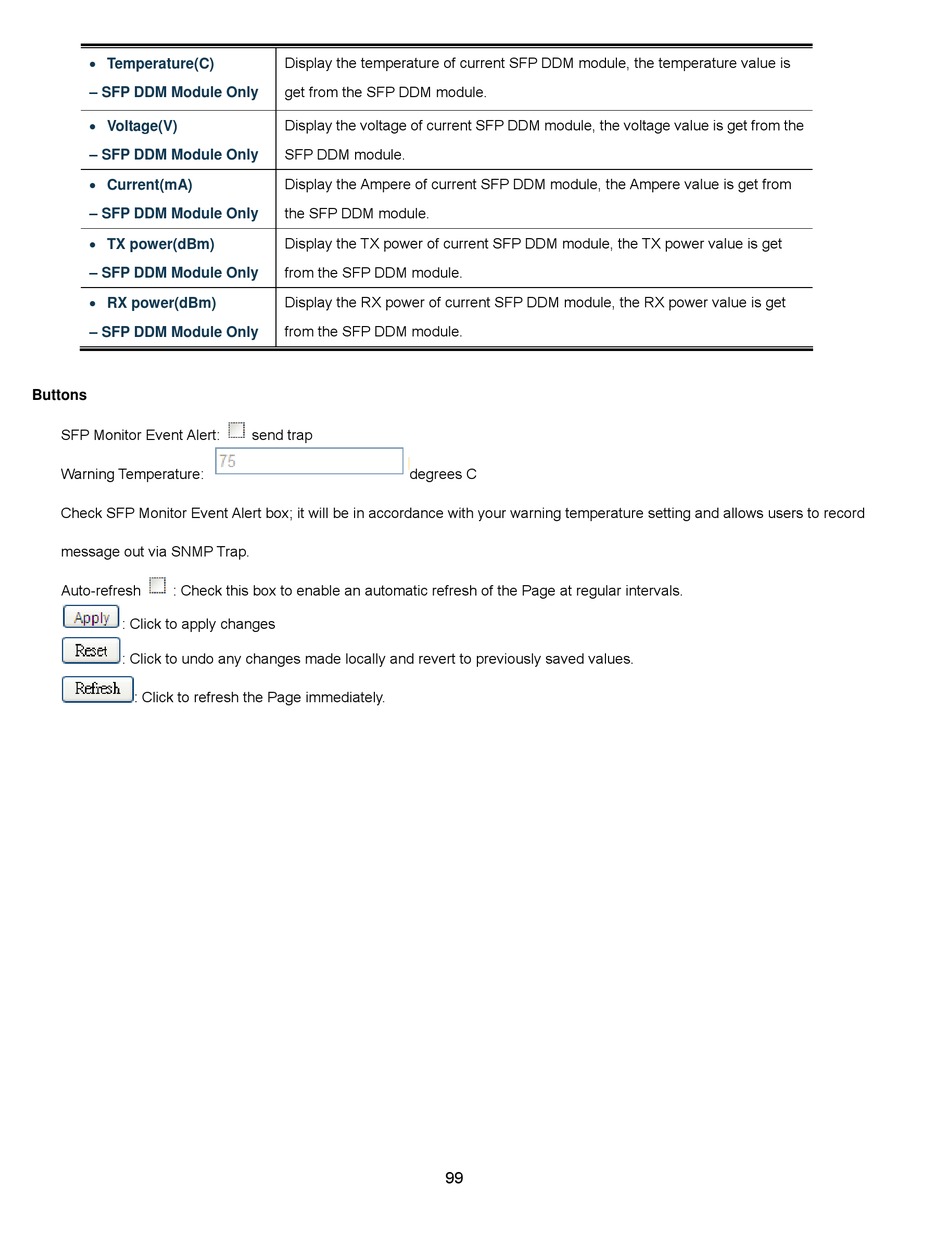

Interlogix NS4702-24P-4S-4X User Manual page 99

 Temperature(C)
– SFP DDM Module Only
 Voltage(V)
– SFP DDM Module Only
 Current(mA)
– SFP DDM Module Only
 TX power(dBm)
– SFP DDM Module Only
 RX power(dBm)
– SFP DDM Module Only
Buttons
SFP Monitor Event Alert:
Warning Temperature:
Check SFP Monitor Event Alert box; it will be in accordance with your warning temperature setting and allows users to record
message out via SNMP Trap.
Auto-refresh : Check this box to enable an automatic refresh of the Page at regular intervals.
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
: Click to refresh the Page immediately.
Display the temperature of current SFP DDM module, the temperature value is
get from the SFP DDM module.
Display the voltage of current SFP DDM module, the voltage value is get from the
SFP DDM module.
Display the Ampere of current SFP DDM module, the Ampere value is get from
the SFP DDM module.
Display the TX power of current SFP DDM module, the TX power value is get
from the SFP DDM module.
Display the RX power of current SFP DDM module, the RX power value is get
from the SFP DDM module.
send trap
degrees C
99
