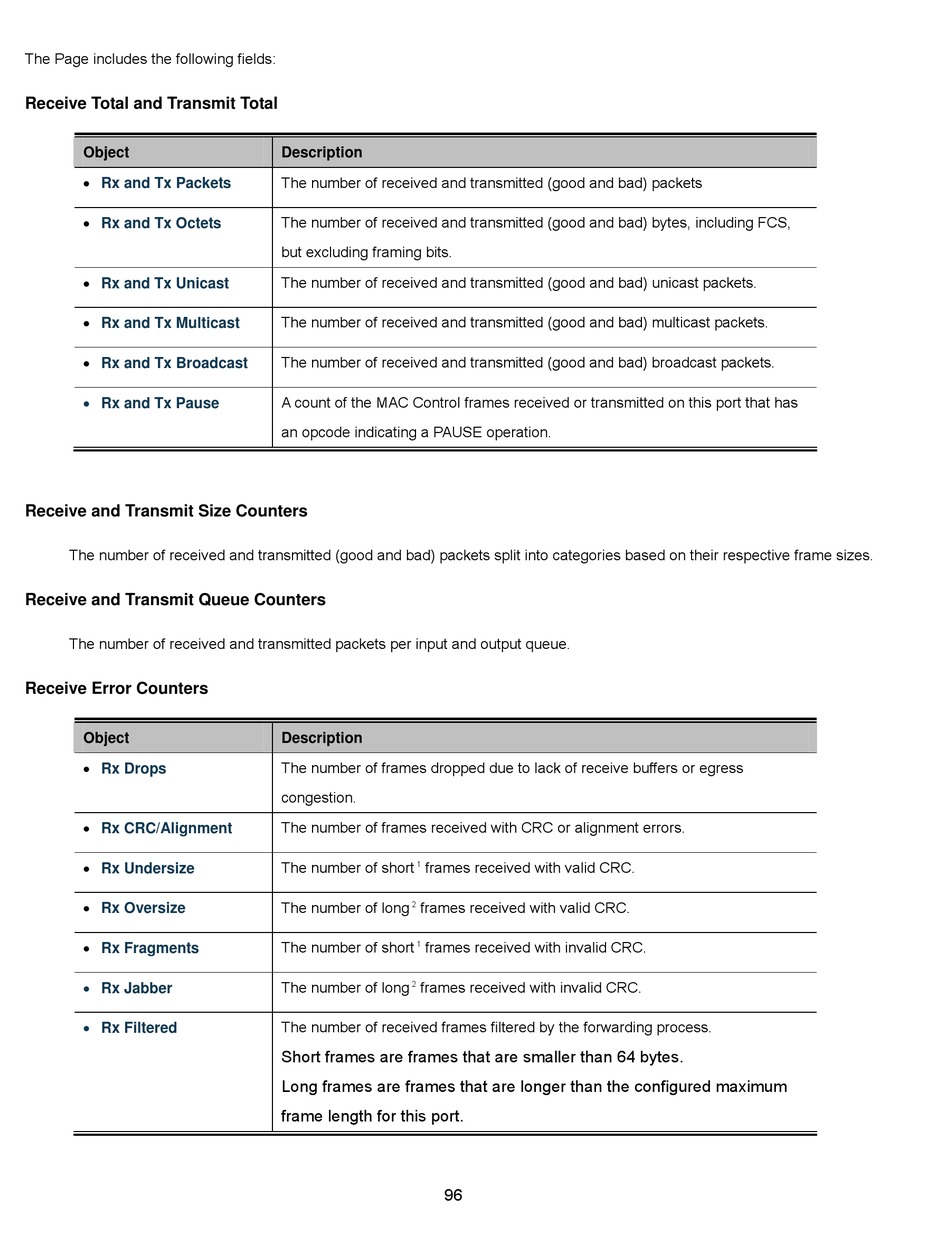

Interlogix NS4702-24P-4S-4X User Manual page 96

The Page includes the following fields:
Receive Total and Transmit Total
Object

Rx and Tx Packets

Rx and Tx Octets

Rx and Tx Unicast

Rx and Tx Multicast

Rx and Tx Broadcast
 Rx and Tx Pause
Receive and Transmit Size Counters
The number of received and transmitted (good and bad) packets split into categories based on their respective frame sizes.
Receive and Transmit Queue Counters
The number of received and transmitted packets per input and output queue.
Receive Error Counters
Object

Rx Drops

Rx CRC/Alignment

Rx Undersize

Rx Oversize

Rx Fragments
 Rx Jabber
 Rx Filtered
Description
The number of received and transmitted (good and bad) packets
The number of received and transmitted (good and bad) bytes, including FCS,
but excluding framing bits.
The number of received and transmitted (good and bad) unicast packets.
The number of received and transmitted (good and bad) multicast packets.
The number of received and transmitted (good and bad) broadcast packets.
A count of the MAC Control frames received or transmitted on this port that has
an opcode indicating a PAUSE operation.
Description
The number of frames dropped due to lack of receive buffers or egress
congestion.
The number of frames received with CRC or alignment errors.
The number of short 1 frames received with valid CRC.
The number of long frames received with valid CRC.
2
The number of short frames received with invalid CRC.
1
The number of long frames received with invalid CRC.
2
The number of received frames filtered by the forwarding process.
Short frames are frames that are smaller than 64 bytes.
Long frames are frames that are longer than the configured maximum
frame length for this port.
