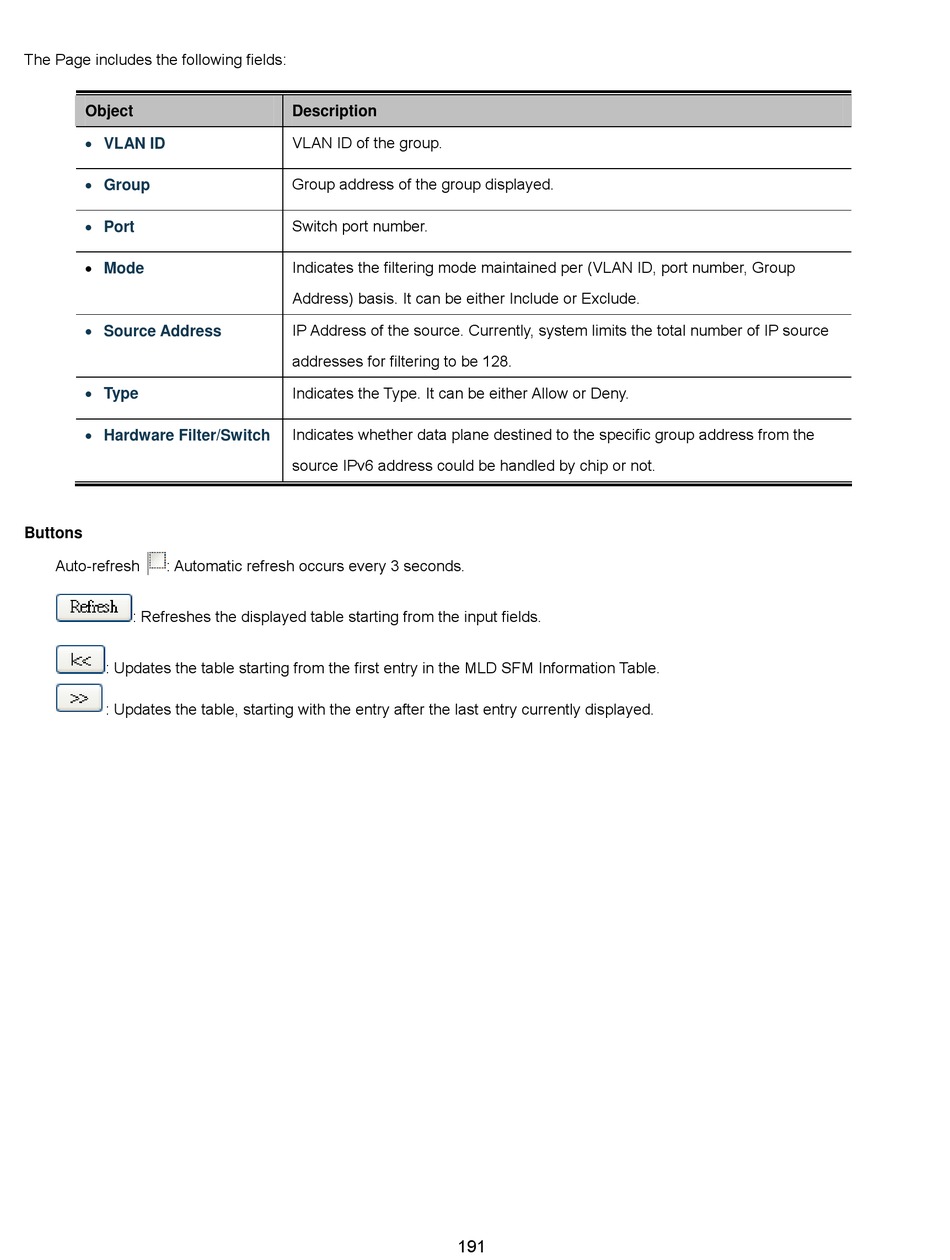

The Page includes the following fields:
Object
 VLAN ID
 Group
 Port

Mode
 Source Address
 Type
 Hardware Filter/Switch
Buttons
Auto-refresh : Automatic refresh occurs every 3 seconds.
: Refreshes the displayed table starting from the input fields.
: Updates the table starting from the first entry in the MLD SFM Information Table.
: Updates the table, starting with the entry after the last entry currently displayed.
Description
VLAN ID of the group.
Group address of the group displayed.
Switch port number.
Indicates the filtering mode maintained per (VLAN ID, port number, Group
Address) basis. It can be either Include or Exclude.
IP Address of the source. Currently, system limits the total number of IP source
addresses for filtering to be 128.
Indicates the Type. It can be either Allow or Deny.
Indicates whether data plane destined to the specific group address from the
source IPv6 address could be handled by chip or not.
