 Priority
Buttons
: Click to set MSTx configuration
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.

4.7.8 Port Status

This Page displays the STP CIST port status for port physical ports in the currently selected switch.
The STP Port Status screen in
cost is used when establishing the active topology of the network. Lower path
cost ports are chosen as forwarding ports in favor of higher path cost ports. Valid
values are in the range 1 to 200000000.
Controls the port priority. This can be used to control priority of ports having
identical port cost.
Figure 4-7-11 appears.

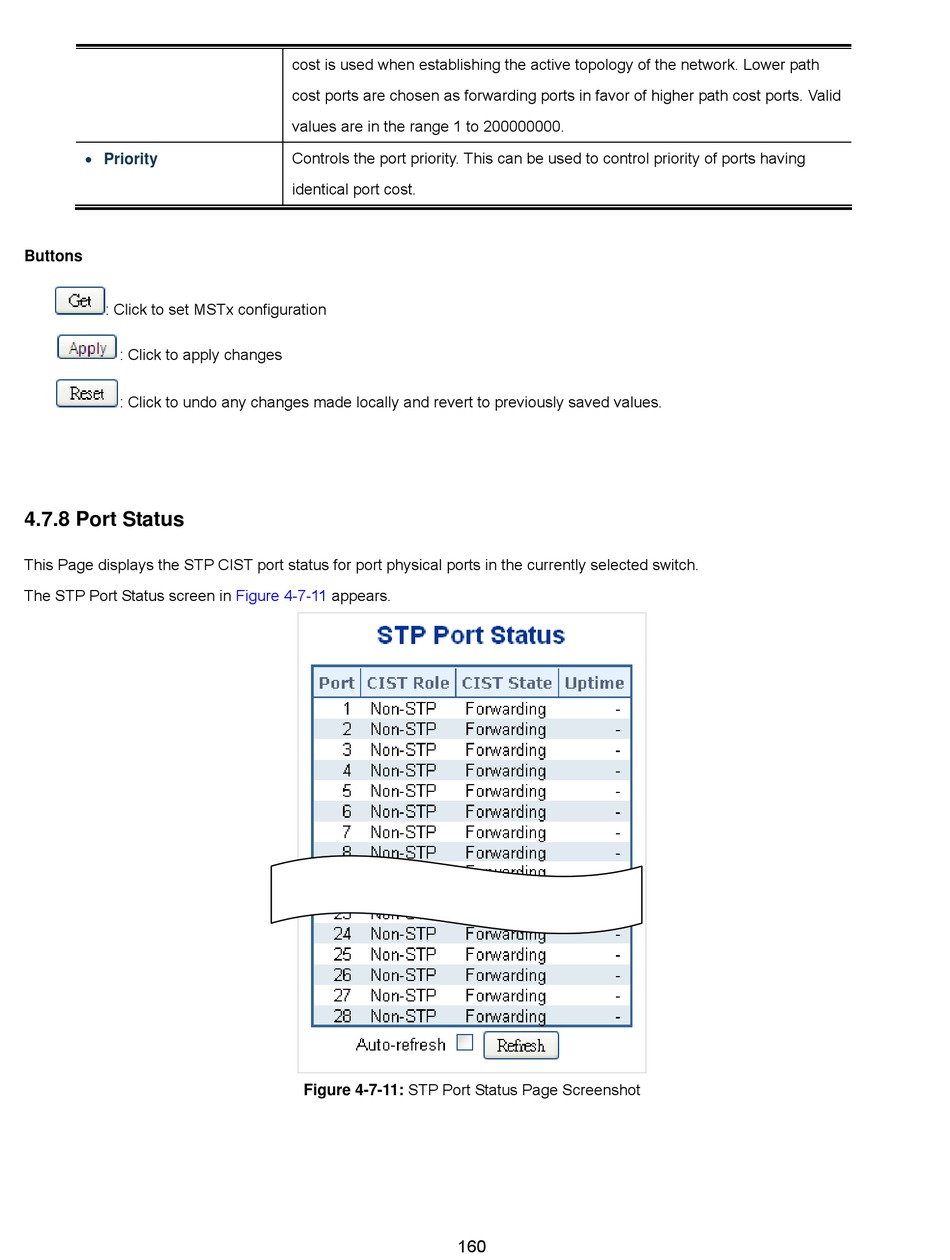

Figure 4-7-11: STP Port Status Page Screenshot
160
