: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.

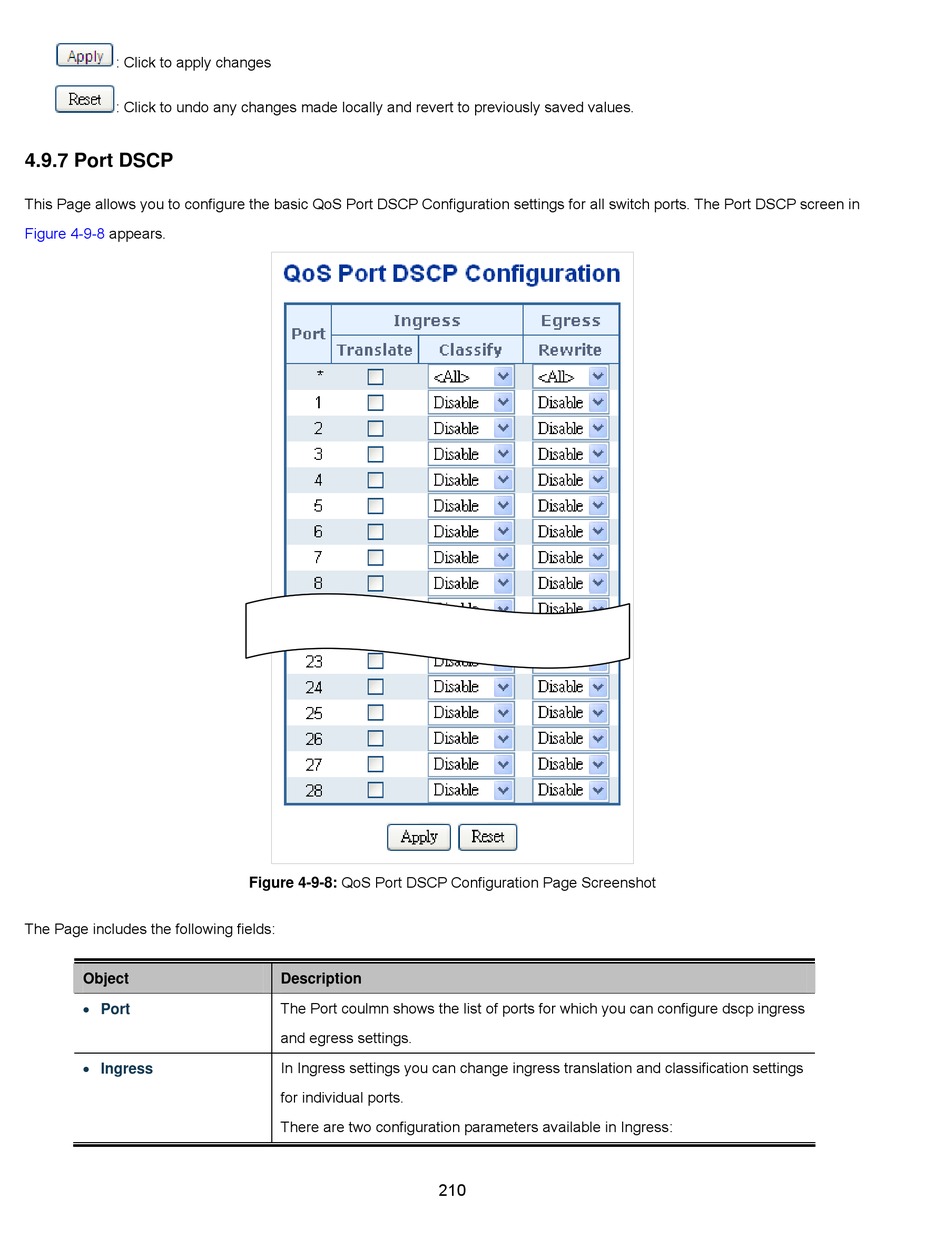

4.9.7 Port DSCP

This Page allows you to configure the basic QoS Port DSCP Configuration settings for all switch ports. The Port DSCP screen in
Figure 4-9-8 appears.
The Page includes the following fields:
Object
 Port
 Ingress
Figure 4-9-8: QoS Port DSCP Configuration Page Screenshot
Description
The Port coulmn shows the list of ports for which you can configure dscp ingress
and egress settings.
In Ingress settings you can change ingress translation and classification settings
for individual ports.
There are two configuration parameters available in Ingress:
210
