Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.

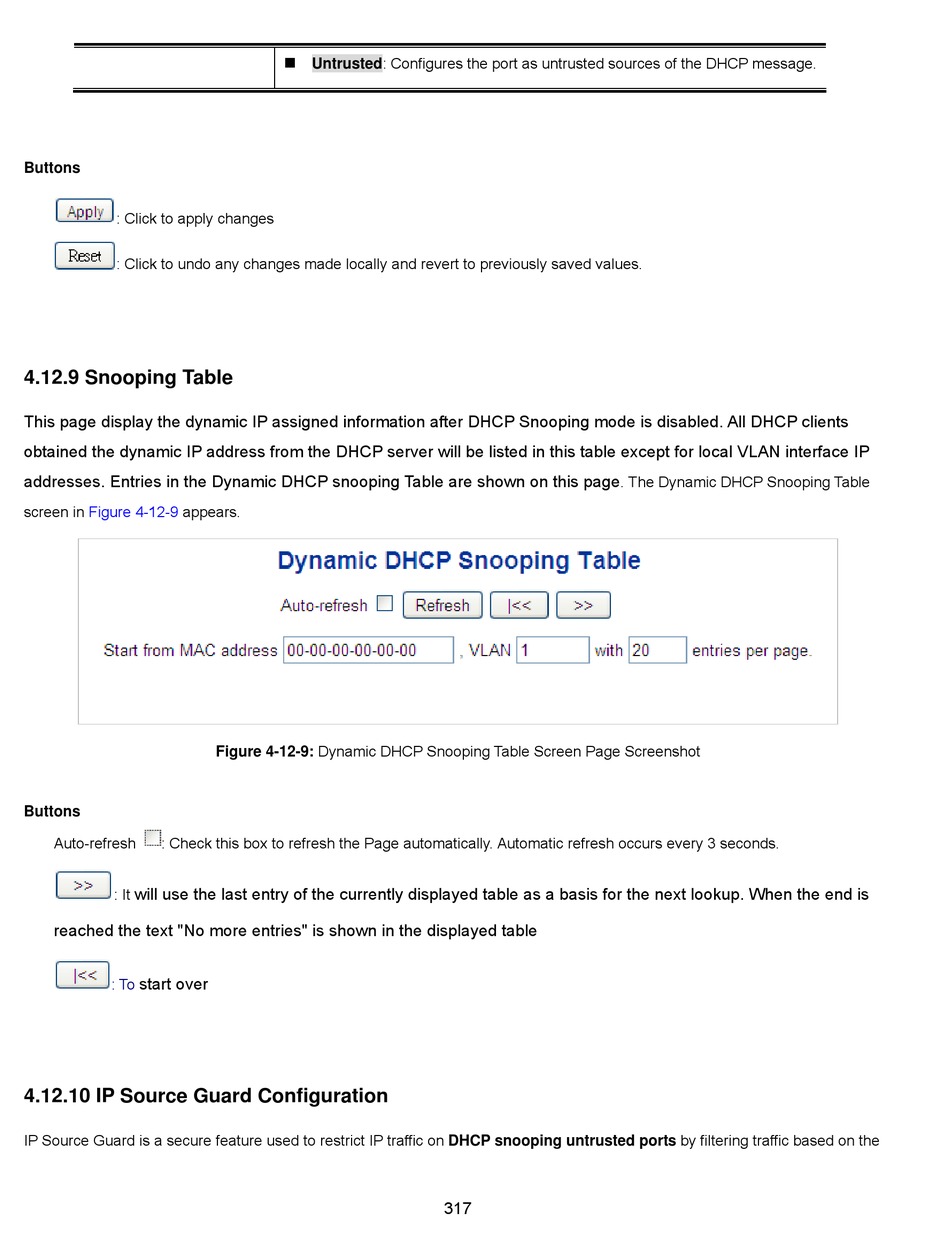

4.12.9 Snooping Table

This page display the dynamic IP assigned information after DHCP Snooping mode is disabled. All DHCP clients
obtained the dynamic IP address from the DHCP server will be listed in this table except for local VLAN interface IP
addresses. Entries in the Dynamic DHCP snooping Table are shown on this page
screen in Figure 4-12-9 appears.
Buttons
Auto-refresh : Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
will use the last entry of the currently displayed table as a basis for the next lookup. When the end is
: It
reached the text "No more entries" is shown in the displayed table
start over
: To

4.12.10 IP Source Guard Configuration

IP Source Guard is a secure feature used to restrict IP traffic on DHCP snooping untrusted ports by filtering traffic based on the

Untrusted: Configures the port as untrusted sources of the DHCP message.
Figure 4-12-9: Dynamic DHCP Snooping Table Screen Page Screenshot
317
. The Dynamic DHCP Snooping Table
