Buttons
: Click to add a new IP interface. A maximum of 128 interfaces is supported.
: Click to add a new IP route. A maximum of 32 routes is supported.
: Click to apply changes.
: Click to undo any changes made locally and revert to previously saved values.

4.2.3 IP Status

IP Status displays the status of the IP protocol layer. The status is defined by the IP interfaces, the IP routes and the neighbour
cache (ARP cache) status. The screen in
The Page includes the following fields:
Object
 IP Interfaces

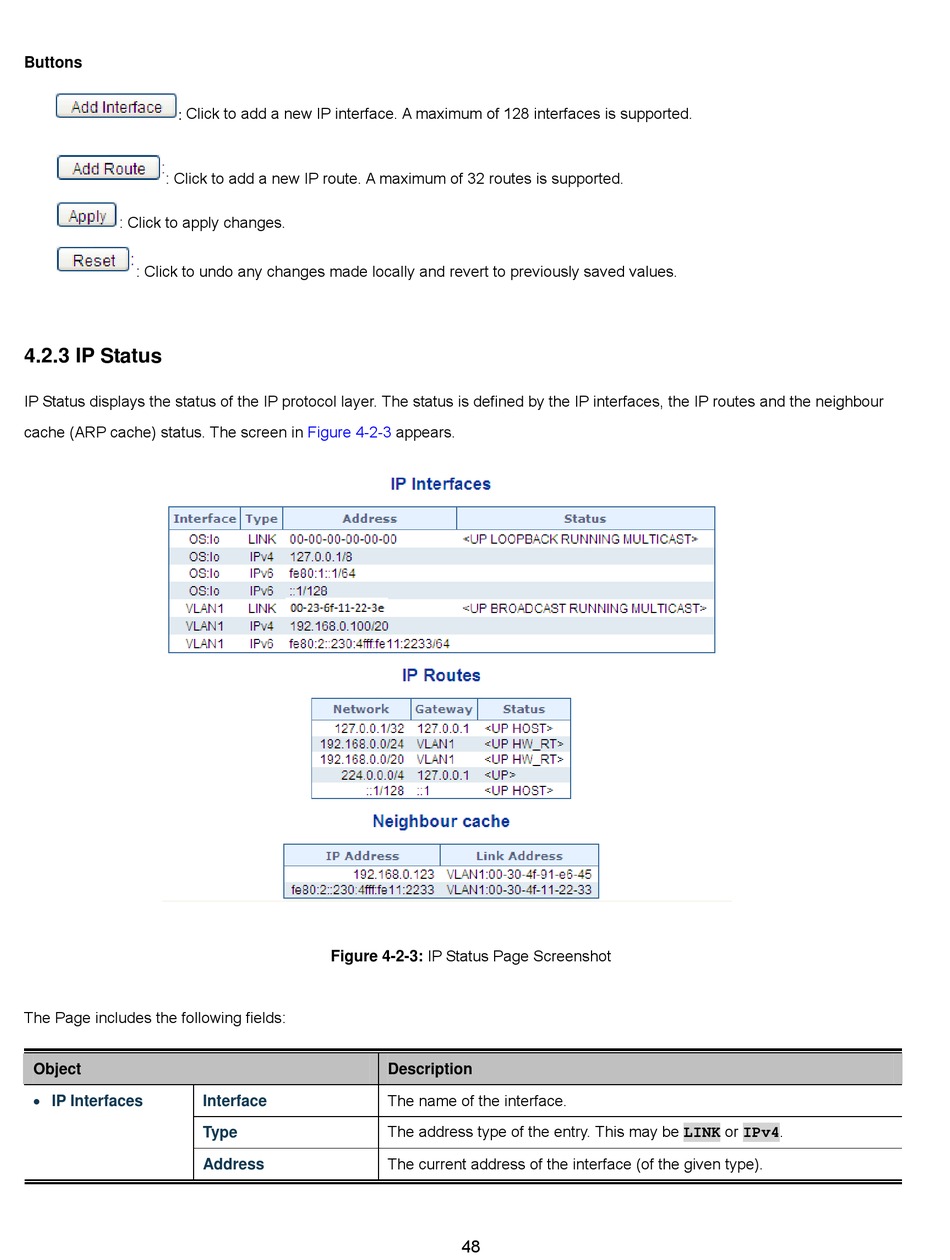

Figure 4-2-3
Figure 4-2-3: IP Status Page Screenshot
Interface
Type
Address
appears.
Description
The name of the interface.
The address type of the entry. This may be LINK or IPv4.
The current address of the interface (of the given type).
