4.19.4 Ethernet Ring Protocol Switch Configuration

This page allows the user to inspect and configure the current ERPS Instance; screen in
The page includes the following fields:
Instant Data:
Object
 ERPS ID
 Port 0
 Port 1
 Port 0 SF MEP
 Port 1 SF MEP
 Port 0 APS MEP
 Port 1 APS MEP
 Ring Type

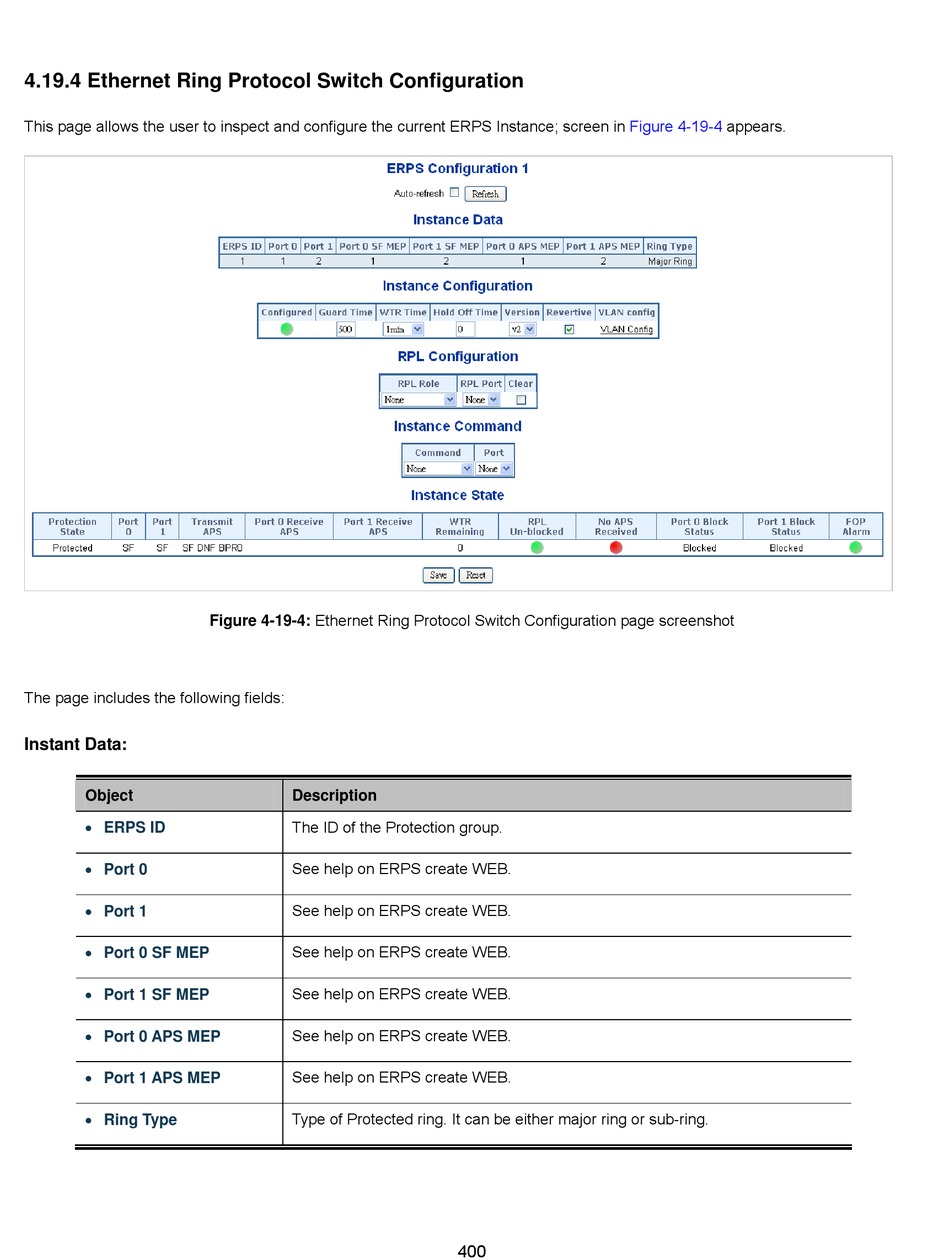

Figure 4-19-4: Ethernet Ring Protocol Switch Configuration page screenshot
Description
The ID of the Protection group.
See help on ERPS create WEB.
See help on ERPS create WEB.
See help on ERPS create WEB.
See help on ERPS create WEB.
See help on ERPS create WEB.
See help on ERPS create WEB.
Type of Protected ring. It can be either major ring or sub-ring.
Figure 4-19-4
400
appears.
