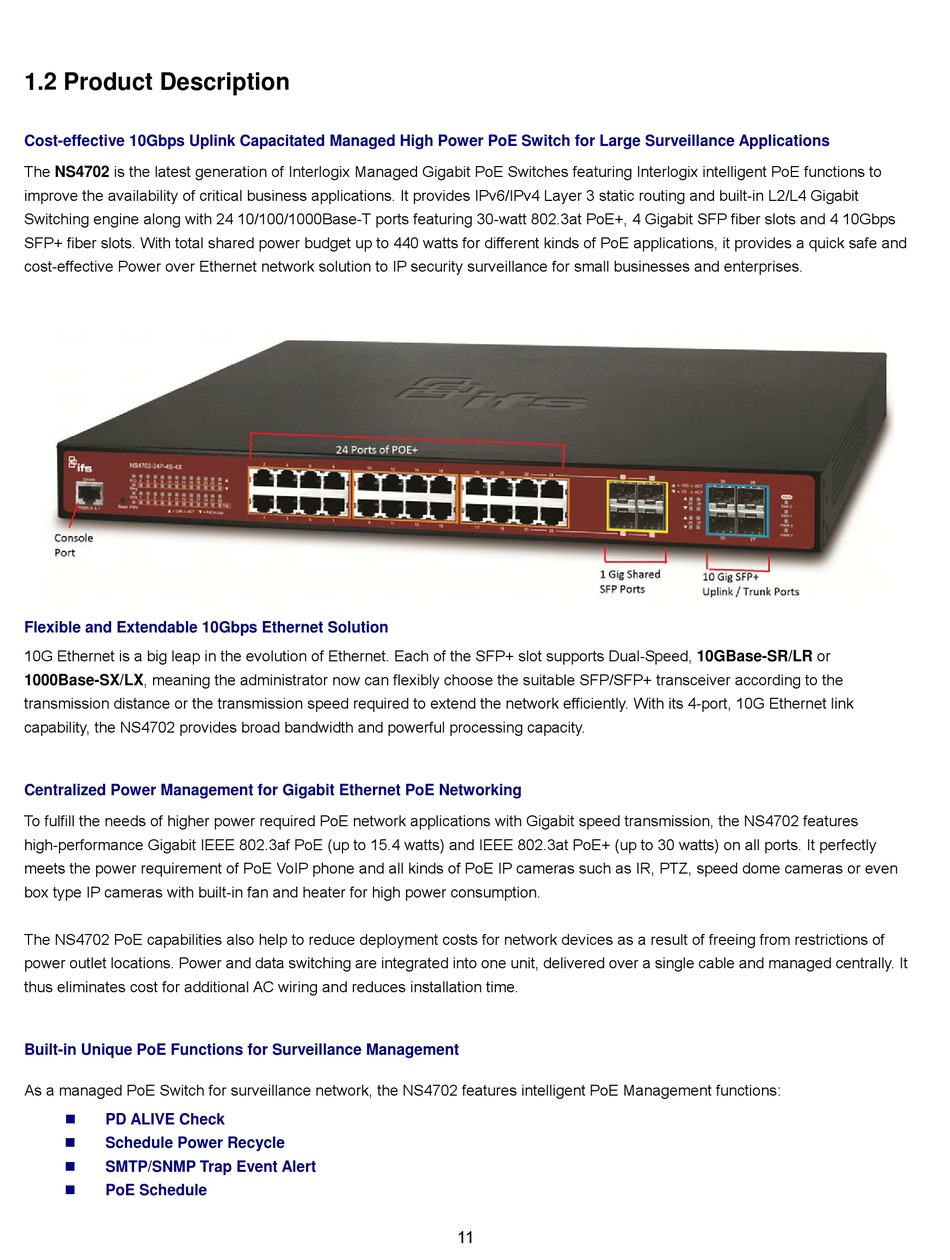

1.2 Product Description

Cost-effective 10Gbps Uplink Capacitated Managed High Power PoE Switch for Large Surveillance Applications
The NS4702 is the latest generation of Interlogix Managed Gigabit PoE Switches featuring Interlogix intelligent PoE functions to
improve the availability of critical business applications. It provides IPv6/IPv4 Layer 3 static routing and built-in L2/L4 Gigabit
Switching engine along with 24 10/100/1000Base-T ports featuring 30-watt 802.3at PoE+, 4 Gigabit SFP fiber slots and 4 10Gbps
SFP+ fiber slots. With total shared power budget up to 440 watts for different kinds of PoE applications, it provides a quick safe and
cost-effective Power over Ethernet network solution to IP security surveillance for small businesses and enterprises.
Flexible and Extendable 10Gbps Ethernet Solution
10G Ethernet is a big leap in the evolution of Ethernet. Each of the SFP+ slot supports Dual-Speed, 10GBase-SR/LR or
1000Base-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the
transmission distance or the transmission speed required to extend the network efficiently. With its 4-port, 10G Ethernet link
capability, the NS4702 provides broad bandwidth and powerful processing capacity.
Centralized Power Management for Gigabit Ethernet PoE Networking
To fulfill the needs of higher power required PoE network applications with Gigabit speed transmission, the NS4702 features
high-performance Gigabit IEEE 802.3af PoE (up to 15.4 watts) and IEEE 802.3at PoE+ (up to 30 watts) on all ports. It perfectly
meets the power requirement of PoE VoIP phone and all kinds of PoE IP cameras such as IR, PTZ, speed dome cameras or even
box type IP cameras with built-in fan and heater for high power consumption.
The NS4702 PoE capabilities also help to reduce deployment costs for network devices as a result of freeing from restrictions of
power outlet locations. Power and data switching are integrated into one unit, delivered over a single cable and managed centrally. It
thus eliminates cost for additional AC wiring and reduces installation time.
Built-in Unique PoE Functions for Surveillance Management
As a managed PoE Switch for surveillance network, the NS4702 features intelligent PoE Management functions:

PD ALIVE Check

Schedule Power Recycle

SMTP/SNMP Trap Event Alert

PoE Schedule
